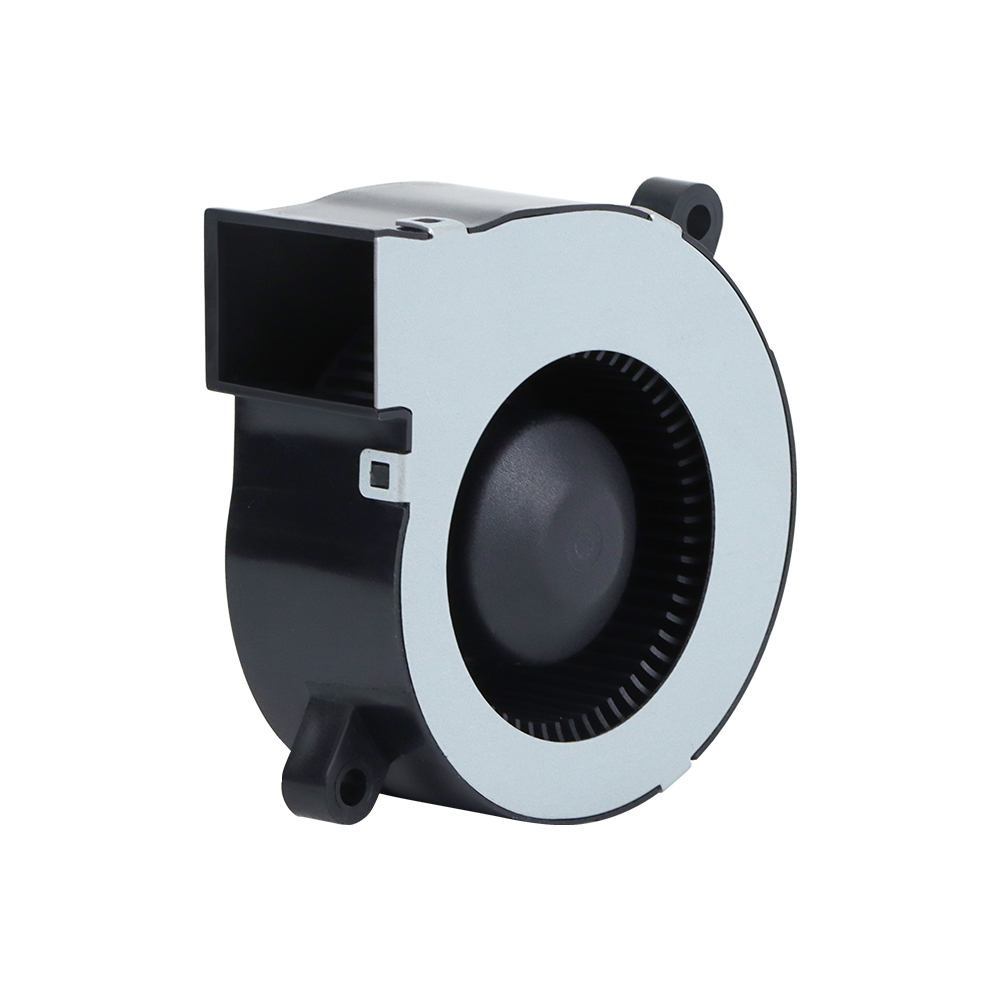

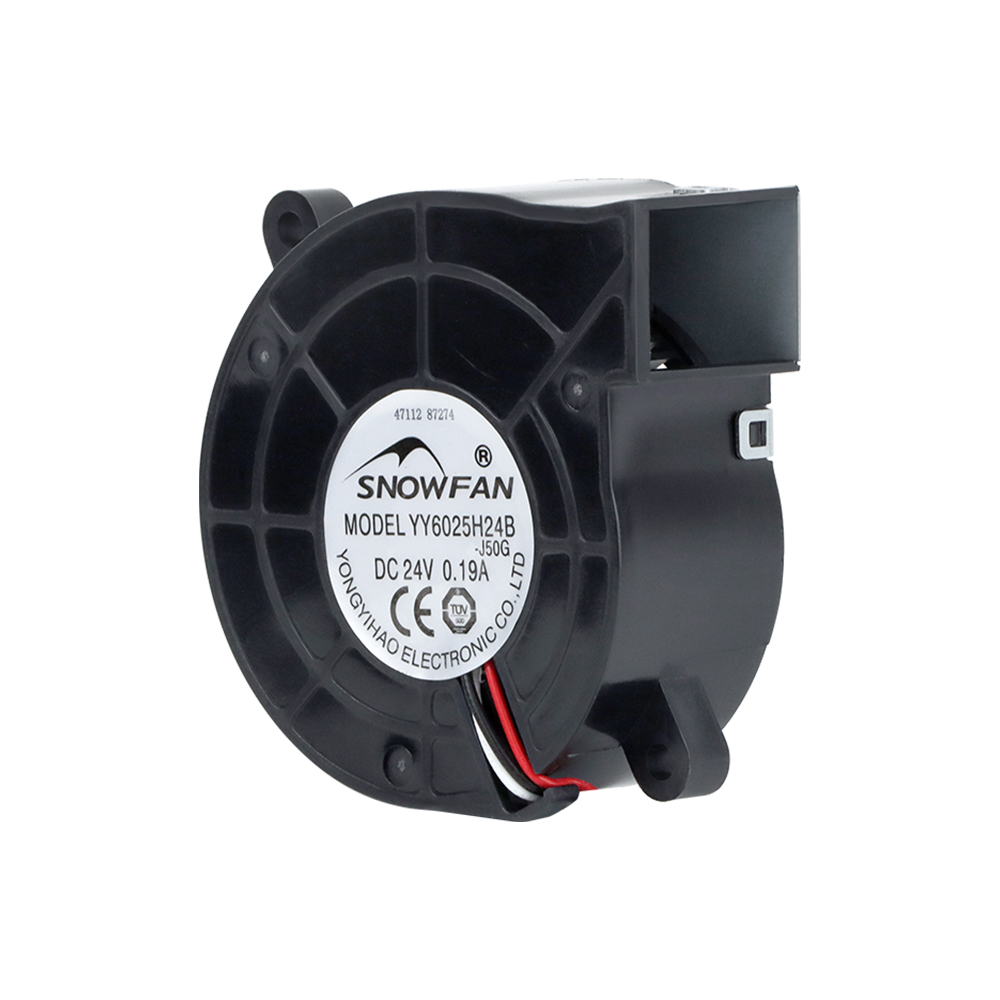

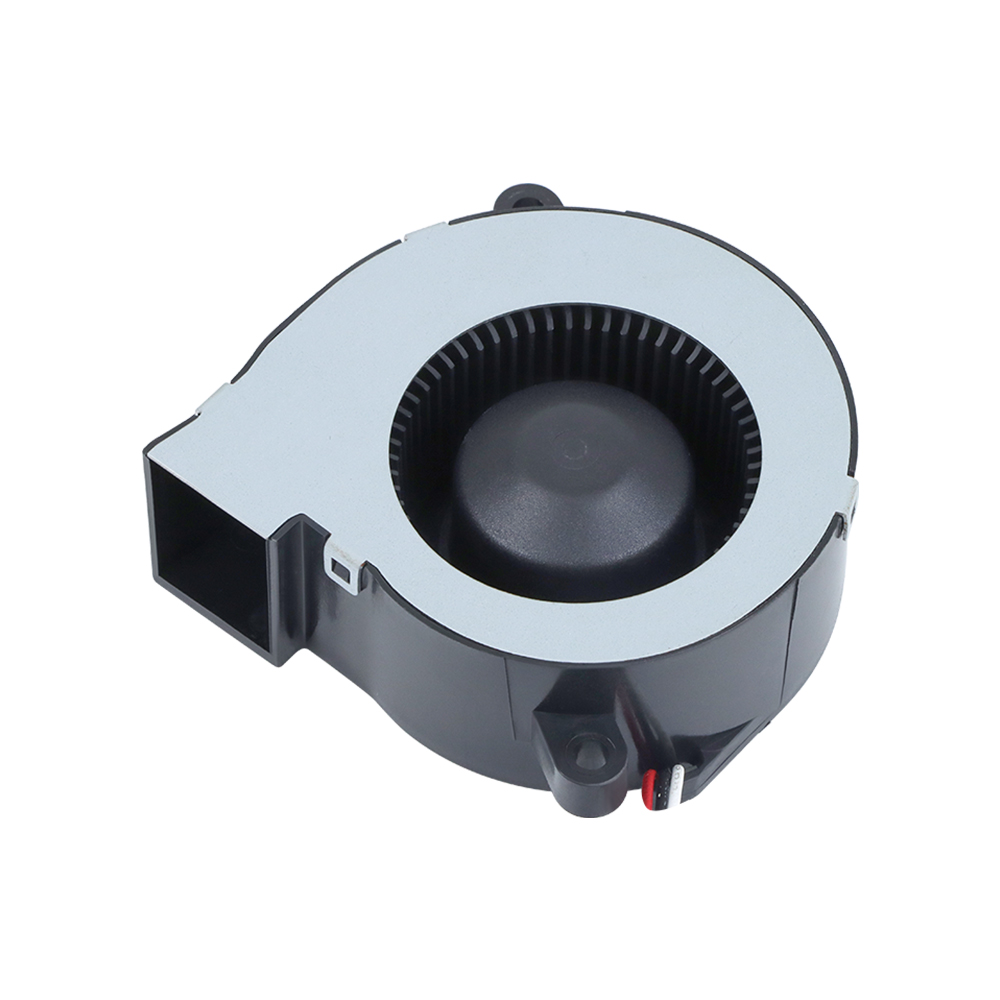

6025 DC Axial fan,Brushless blower DC fan 60*60*25mm
*Designed for projects that requires cooling or ventilation;
*High efficiency and low power consumption.
*Bearing Type: Hydraulic/Ball Bearing .
*Full Certification included CE/UL/TUV.
*Customizable Wire and Connectors.
Download
3D Model
SHARE:
Product details:
| Size: 60*60*25mm Series
| Voltage: DC 5V/12V/24V
| Current: 0.08-0.6Amp
| Speed: 3500-5000rpm
| Total Airflow: 8.36-10.88CFM
| Air Pressure: 11.11-26.4mmH2O
| Total Noise: 34.7-44.4dBA
| MODEL | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YY6025L05 | 5 | 4.3to5.4 | 0.35 | 1.75 | 3500 | 0.24 | 8.36 | 11.11 | 0.44 | 34.7 | |
| YY6025L12 | 12 | 7.0to13.5 | 0.16 | 1.92 | |||||||
| YY6025L24 | 24 | 18to26.5 | 0.08 | 1.92 | |||||||
| YY6025M05 | 5 | 4.3to5.4 | 0.50 | 2.50 | 4500 | 0.29 | 10.18 | 22.51 | 0.90 | 41.6 | |
| YY6025M12 | 12 | 7.0to13.5 | 0.22 | 2.44 | |||||||
| YY6025M24 | 24 | 18to26.5 | 0.11 | 2.64 | |||||||
| YY6025H05 | 5 | 4.3to5.4 | 0.60 | 3.00 | 5000 | 0.31 | 10.88 | 26.4 | 1.04 | 44.4 | |
| YY6025H12 | 12 | 7.0to13.5 | 0.26 | 3.12 | |||||||
| YY6025H24 | 24 | 18to26.5 | 0.13 | 3.12 | |||||||
