Cooling Fan 12V DC,48v DC Brushless Fan,DC Cooling fan,DC 92*92*25mm Fan
* Bearings: Ball-Longlife up to 70 000hrs,suit for high speed fan,Stable Noise
Sleeve-Lifespan 30 000hrs,suit for lower speed fan and less than 9cm Fan will be better,the longer using the bigger the noise.
Hydraulic Bearing-Lifespan 40 000 hrs,Have unique annular oil supply circuit,cheaper than ball,Low noise.
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

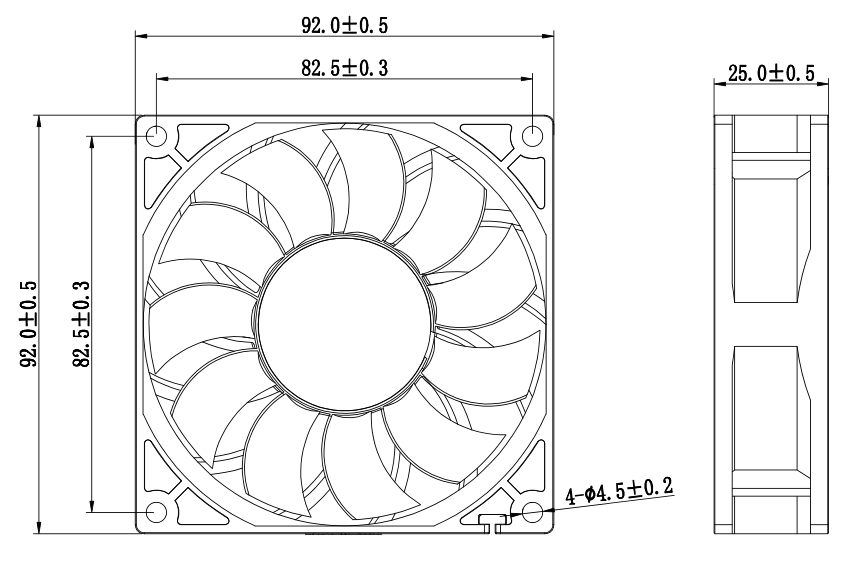

| Size: 92*92*25mm-2 Series
| Voltage: DC 12V-48V
| Current: 0.13-1.05Amp
| Speed: 4000-5000rpm

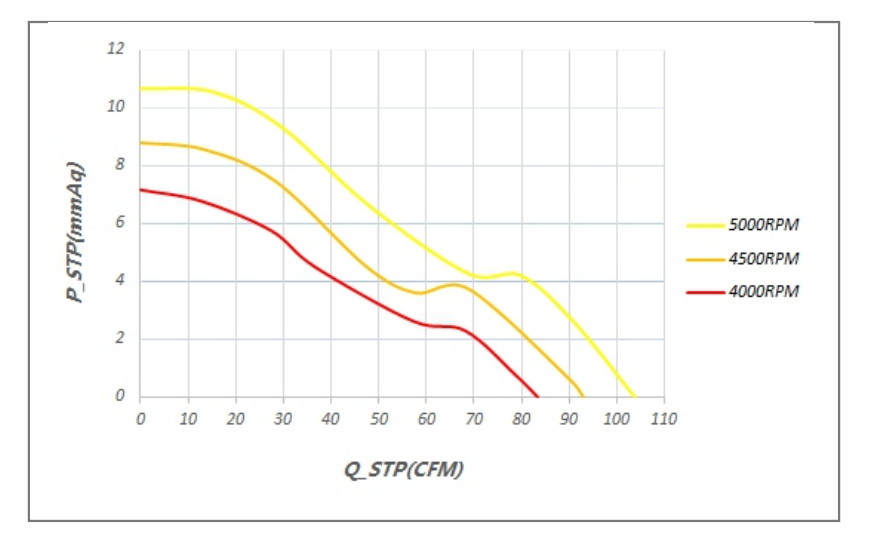

| Total Airflow: 83.41-103.8CFM
| Air Pressure: 7.16-10.66 mmH2O
| Total Noise: 49-56.3dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 92*92*25-M12 | 12 | 7.0to13.5 | 0.4 | 4.8 | 4000 | 2.36 | 83.41 | 7.16 | 0.28 | 49 |
| 92*92*25-M24 | 24 | 18to26.5 | 0.25 | 6 | ||||||
| 92*92*25-M48 | 48 | 36to54 | 0.13 | 6.24 | ||||||
| 92*92*25-H12 | 12 | 7.0to13.5 | 0.55 | 6.6 | 4500 | 2.63 | 92.99 | 8.79 | 0.35 | 53 |
| 92*92*25-H24 | 24 | 18to26.5 | 0.32 | 7.68 | ||||||
| 92*92*25-H48 | 48 | 36to54 | 0.17 | 8.16 | ||||||
| 92*92*25-H12-HH | 12 | 7.0to13.5 | 1.05 | 12.6 | 5000 | 2.94 | 103.8 | 10.66 | 0.42 | 56.3 |
| 92*92*25-H24-HH | 24 | 18to26.5 | 0.53 | 12.7 | ||||||
| 92*92*25-H48-HH | 48 | 36to54 | 0.26 | 12.48 | ||||||
