high speed , 24V DC Cooling fan, axial flow fans
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

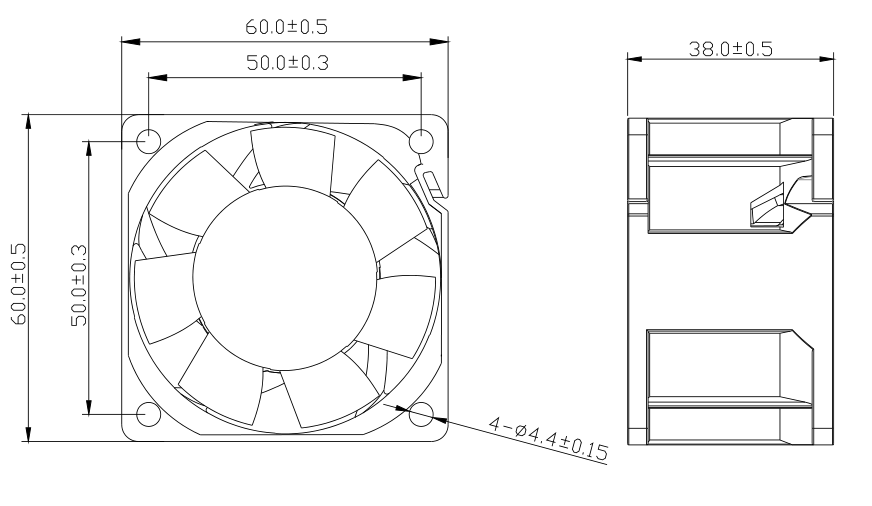

| Size: 60*60*38mm Series
| Voltage: DC 12V-48V
| Current: 0.06-1.7Amp
| Speed: 4000-12000rpm
| Total Airflow: 20-63CFM
| Air Pressure: 5.52-48mmH2O
| Total Noise: 37-62dBA

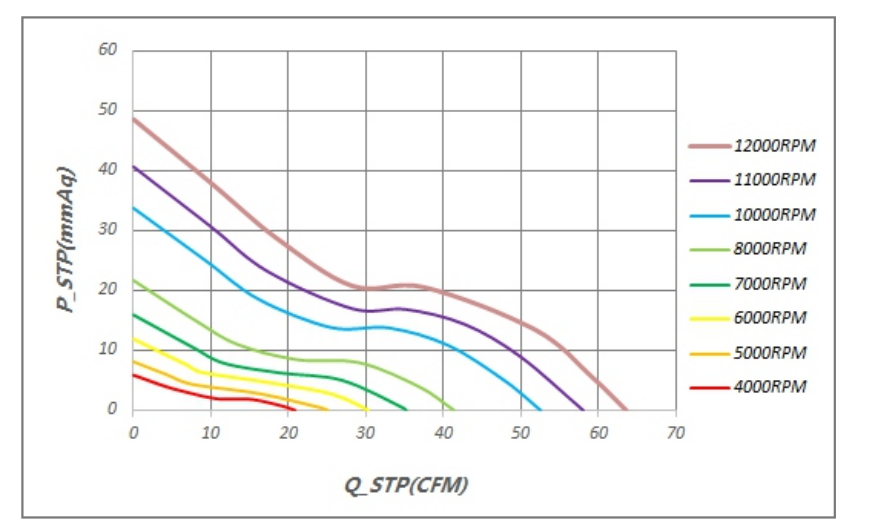

| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 60*60*38-L12 | 12 | 8.0to13.5 | 0.10 | 1.20 | 4000 | 0.59 | 20.83 | 5.86 | 0.23 | 37.4 |
| 60*60*38-L24 | 24 | 18to26.5 | 0.06 | 1.44 | ||||||
| 60*60*38-M12 | 12 | 8.0to13.5 | 0.15 | 1.80 | 5000 | 0.71 | 25.06 | 8.1 | 0.32 | 39.6 |
| 60*60*38-M24 | 24 | 18to26.5 | 0.07 | 1.68 | ||||||
| 60*60*38-M48 | 48 | 36to54 | 0.06 | 2.88 | ||||||
| 60*60*38-H12 | 12 | 8.0to13.5 | 0.21 | 2.52 | 6000 | 0.86 | 30.3 | 11.87 | 0.47 | 44.9 |
| 60*60*38-H24 | 24 | 18to26.5 | 0.13 | 3.12 | ||||||
| 60*60*38-H48 | 48 | 36to54 | 0.09 | 4.32 | ||||||
| 60*60*38-H12-HH | 12 | 8.0to13.5 | 0.30 | 3.60 | 7000 | 1.00 | 35.18 | 15.9 | 0.63 | 48.8 |
| 60*60*38-H24-HH | 24 | 18to26.5 | 0.20 | 4.80 | ||||||
| 60*60*38-H48-HH | 48 | 36to54 | 0.12 | 5.76 | ||||||
| 60*60*38-H12-VH | 12 | 8.0to13.5 | 0.58 | 6.96 | 8000 | 1.17 | 41.34 | 21.65 | 0.85 | 52.3 |
| 60*60*38-H24-VH | 24 | 18to26.5 | 0.32 | 7.68 | ||||||
| 60*60*38-H48-VH | 48 | 36to54 | 0.14 | 6.72 | ||||||
| 60*60*38-H12-SH | 12 | 8.Oto13.5 | 0.88 | 10.56 | 10000 | 1.49 | 52.5 | 33.7 | 1.33 | 57.6 |
| 60*60*38-H24-SH | 24 | 18to26.5 | 0.45 | 10.80 | ||||||
| 60*60*38-H48-SH | 48 | 36to54 | 0.23 | 11.04 | ||||||
| 60*60*38-H12-EH | 12 | 8.0to13.5 | 1.12 | 13.44 | 11000 | 1.64 | 58 | 40.61 | 1.60 | 59.8 |
| 60*60*38-H24-EH | 24 | 18to26.5 | 0.57 | 13.68 | ||||||
| 60*60*38-H48-EH | 48 | 36to54 | 0.29 | 13.92 | ||||||
| 60*60*38-H12-GH | 12 | 8.0to13.5 | 1.50 | 18.00 | 12000 | 1.80 | 63.56 | 48.53 | 1.91 | 62.5 |
| 60*60*38-H24-GH | 24 | 18to26.5 | 0.80 | 19.20 | ||||||
| 60*60*38-H48-GH | 48 | 36to54 | 0.41 | 19.68 | ||||||
