120mm Brushless Fan,5inches DC Fan,Axial flow DC Fan,12038 DC Fan
* Bearings: Ball /Sleeve/Fluid Bearing
* Long Lifespan Up to 70 000 hrs.
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

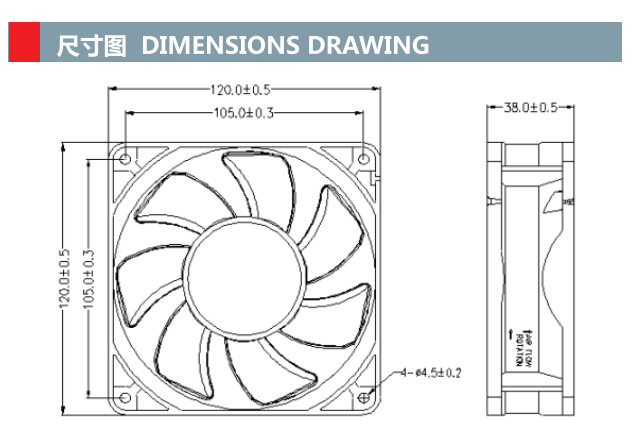

| Size: 120*120*38mm Series
| Voltage: DC 5V-48V
| Current: 0.18-3.4Amp
| Speed: 1500-5000rpm

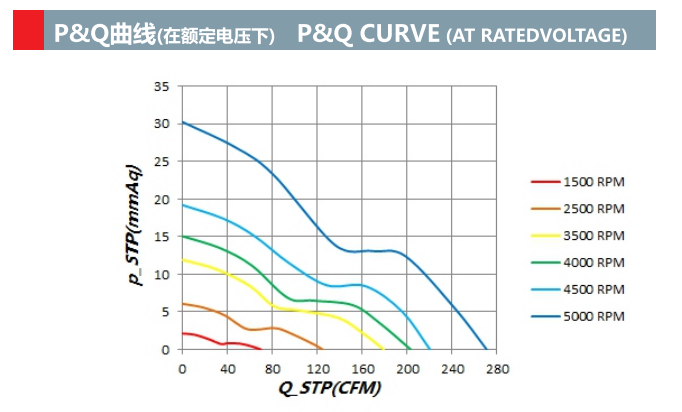

| Total Airflow: 69.71-271.04CFM
| Air Pressure: 2.13-30.26mmH2O
| Total Noise: 35.2-67.8dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 120*120*38-LO5 | 5 | 4.0to6.8 | 0.30 | 1.50 | 1500 | 1.97 | 69.71 | 2.13 | 0.08 | 35.2 |
| 120*120*38-L12 | 12 | 8.0to13.5 | 0.21 | 2.52 | ||||||
| 120*120*38-L24 | 24 | 18to26.5 | 0.09 | 2.16 | ||||||
| 120*120*38-M12 | 12 | 8.0to13.5 | 0.72 | 8.64 | 2500 | 3.54 | 124.87 | 6.07 | 0.24 | 46 |
| 120*120*38-M24 | 24 | 18to26.5 | 0.35 | 8.40 | ||||||
| 120*120*38-M48 | 48 | 36to54 | 0.18 | 8.64 | ||||||
| 120*120*38-H12 | 12 | 8.0to13.5 | 1.30 | 15.60 | 3500 | 5.08 | 179.29 | 11.93 | 0.47 | 52.2 |
| 120*120*38-H24 | 24 | 18to26.5 | 0.65 | 15.60 | ||||||
| 120*120*38-H48 | 48 | 36to54 | 0.32 | 15.36 | ||||||
| 120*120*38-H12-HH | 12 | 8.0to13.5 | 1.85 | 22.20 | 4000 | 5.76 | 203.33 | 15.06 | 0.59 | 56.3 |
| 120*120*38-H24-HH | 24 | 18to26.5 | 0.91 | 21.84 | ||||||
| 120*120*38-H48-HH | 48 | 36to54 | 0.45 | 21.60 | ||||||
| 120*120*38-H12-VH | 12 | 8.0to13.5 | 2.46 | 29.52 | 4500 | 6.24 | 220.51 | 19.21 | 0.76 | 60.5 |
| 120*120*38-H24-VH | 24 | 18to26.5 | 1.28 | 30.72 | ||||||
| 120*120*38-H48-VH | 48 | 36to54 | 0.63 | 30.24 | ||||||
| 120*120*38-H12-SH | 12 | 8.0to13.5 | 3.40 | 40.80 | 5000 | 7.68 | 271.04 | 30.26 | 1.19 | 67.8 |
| 120*120*38-H24-SH | 24 | 18to26.5 | 1.70 | 40.32 | ||||||
| 120*120*38-H48-SH | 48 | 36to54 | 0.85 | 40.80 | ||||||
