dc brushless fan , Cooling fan , 24v fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

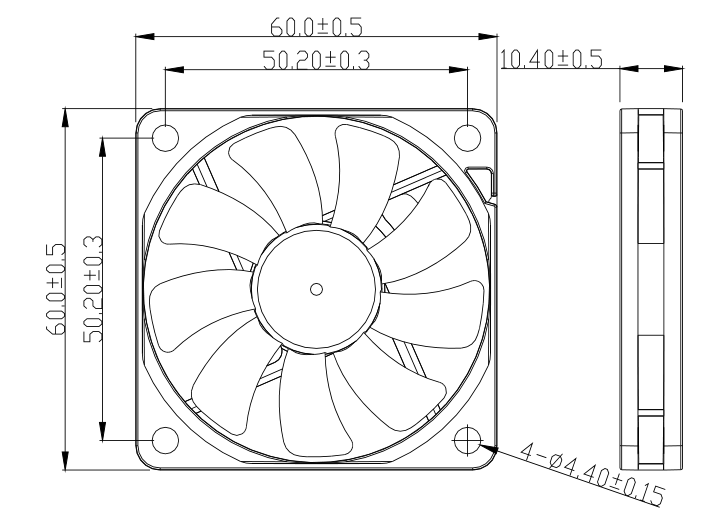

| Size: 60*60*10mm Series
| Voltage: DC 5V-24V
| Current: 0.03-0.12Amp
| Speed: 2500-4800rpm
| Total Airflow:9.5-18.56CFM
| Air Pressure: 0.92-3.04mmH2O
| Total Noise: 22-33dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 60*60*10-LO5 | 5 | 3.6to6.8 | 0.07 | 0.35 | 2500 | 0.27 | 9.50 | 0.92 | 0.04 | 22.7 |
| 60*60*10-L12 | 12 | 7.0to13.5 | 0.03 | 0.36 | ||||||
| 60*60*10-M05 | 5 | 3.6to6.8 | 0.12 | 0.60 | 3500 | 13.70 | 13.70 | 1.92 | 0.08 | 27.4 |
| 60*60*10-M12 | 12 | 7.0to13.5 | 0.05 | 0.60 | ||||||
| 60*60*10-H12 | 12 | 7.0to13.5 | 0.11 | 1.32 | 4500 | 17.31 | 17.31 | 2.80 | 0.11 | 31.7 |
| 60*60*10-H24 | 24 | 18to26.5 | 0.06 | 1.44 | ||||||
| 60*60*10-H12-HH | 12 | 7.Oto13.5 | 0.12 | 1.44 | 4800 | 0.53 | 18.56 | 3.04 | 0.12 | 33.4 |
| 60*60*10-H24-HH | 24 | 18to26.5 | 0.07 | 1.64 | ||||||
