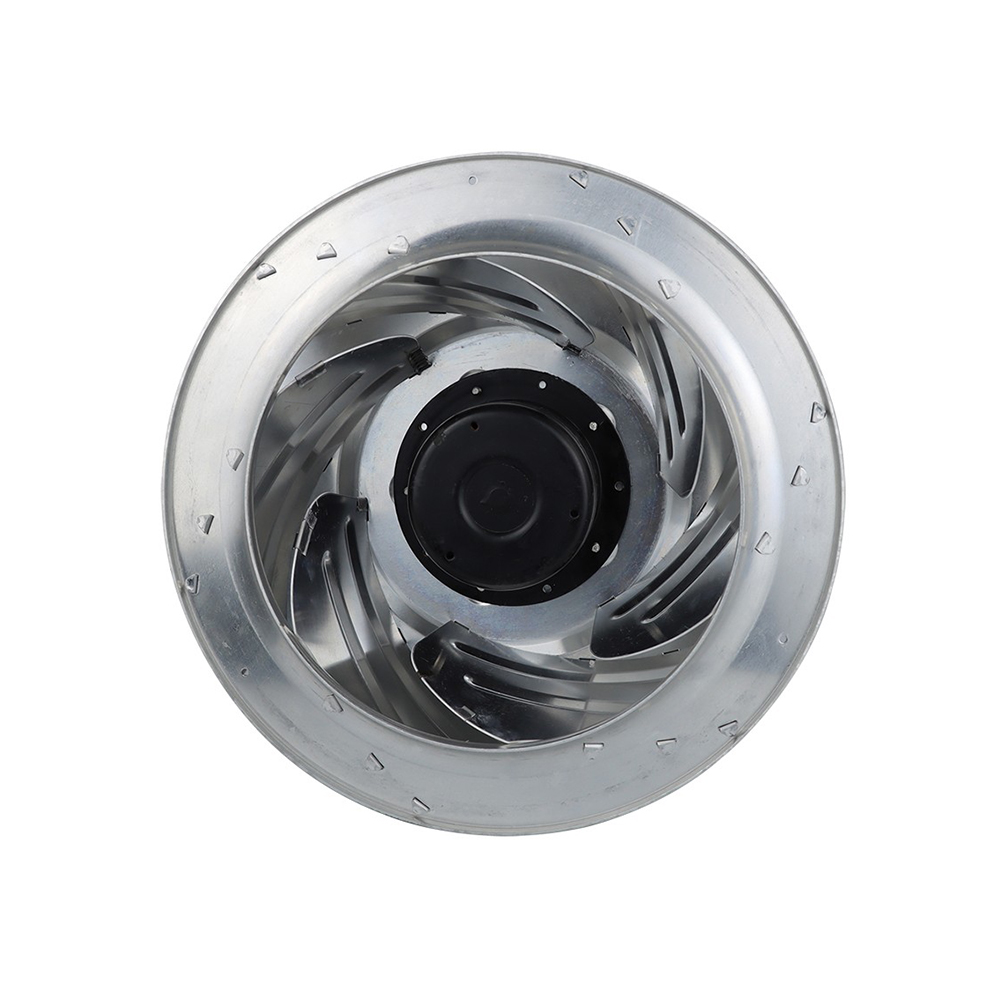

Aluminum Centrifugal fan,PWM centrifugal fan ,Backward curved centrifugal fan

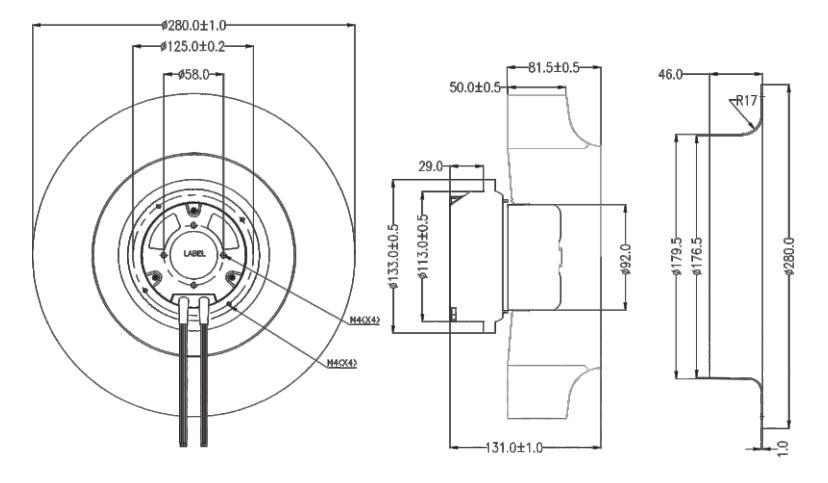

| Size: 280mm Diameter
| Voltage: AC 80V-265V
| Current: 50/60Hz
| Speed: 1400/2200rpm
| Total Airflow: 389.5/877.4CFM
| Air Pressure: 19.3/47.6 mmH2O
| Total Noise: 61.2/73dBA
Download
3D Model
SHARE:
Product details:
* Bearings: Ball Bearing
* Strong aluminum Impeller
* 0-10V/PWM Stepless-speed control constantly variable speed.
* Brushless DC external Rotor Motor, Motor Protection Type: IP44/IP54
* Special Rotor Opening Design,Tecch output, Locked-rotor protection,Over voltage protection, over-currect protection, solf start protection.
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB),Speed control mode(PWM/TC/VC/CC/CS).

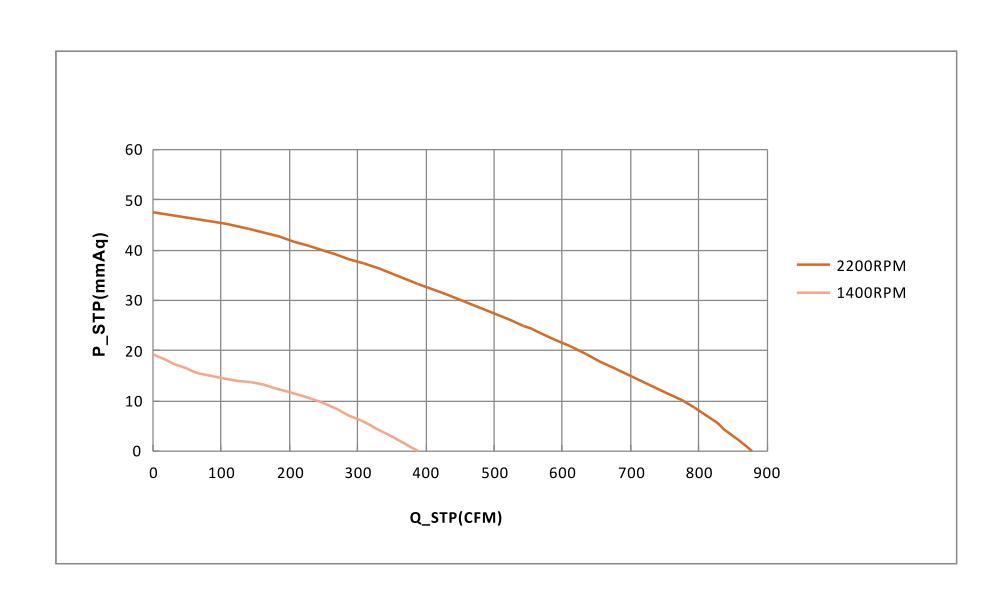

| Size | Rated Voltage | Operating Voltage Range | Frequency | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VAC | VAC | Hz | Watt | R.P.M | CMH | CFM | mmH2O | INH2O | DB-A | |
| Φ280-H110 | 110 | 80to135 | 50/60 | 50 | 1400 | 662.2 | 389.5 | 19.3 | 0.76 | 61.2 |
| Φ280-H220 | 220 | 180to265 | 50/60 | 50 | ||||||
| Φ280-H110 | 110 | 80to135 | 50/60 | 150 | 2200 | 1491.6 | 877.4 | 47.6 | 1.88 | 73.0 |
| Φ280-H220 | 220 | 180to265 | 50/60 | 150 | ||||||
