230V Backward centrifugal fan inline duct ventilation exhaust fan single inlet fan blower wheel HVAC

Centrifugal duct fan,230V centrifugal inline fan ,single inlet centrifugal fan


| Size: 355MM Diameter

| Voltage: EC 80V-265V

| Current: 50/60Hz

| Speed: 2000rpm

| Total Airflow: 2116.6CFM

| Air Pressure: 104.09 mmH2O

| Total Noise: 78dBA


Send Inquiry Download 3D Model

SHARE:

Product Details

Product details:

 * Bearings: Ball Bearing

 * Strong aluminum Impeller

 * 0-10V/PWM Stepless-speed control constantly variable speed.

 * Brushless DC external Rotor Motor, Motor Protection Type: IP44/IP54

 * Special Rotor Opening Design,Tecch output, Locked-rotor protection,Over voltage protection, over-currect protection, solf start protection.

 * Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB),Speed control mode(PWM/TC/VC/CC/CS).

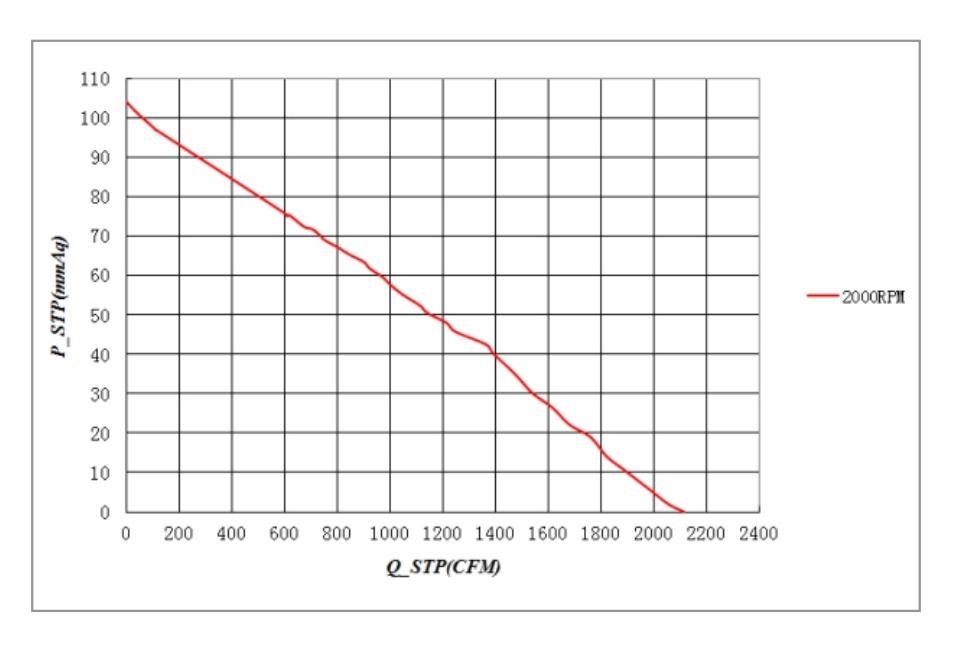

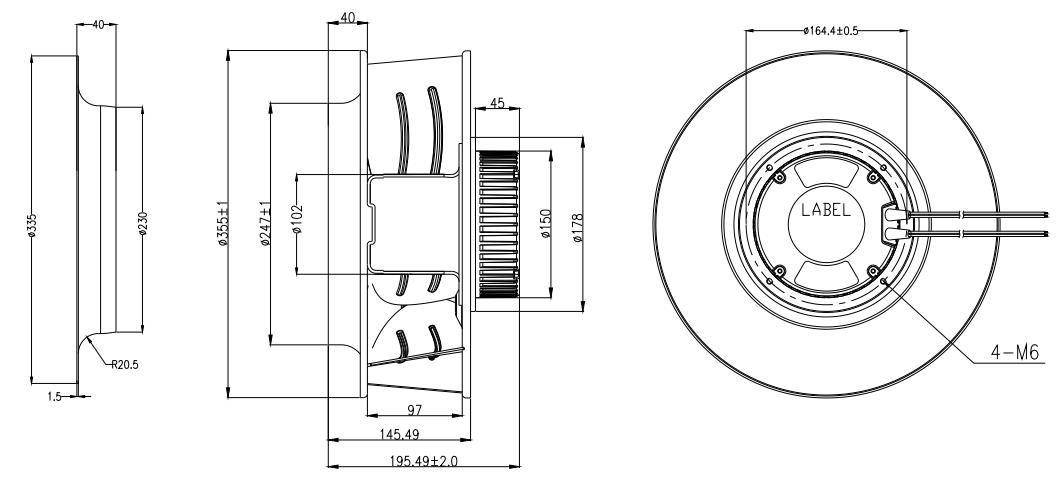

230V Backward centrifugal fan inline duct ventilation exhaust fan single inlet fan blower wheel HVAC(图1)230V Backward centrifugal fan inline duct ventilation exhaust fan single inlet fan blower wheel HVAC(图2)

Compare With Similar Items

SizeRated VoltageOperating Voltage RangeFrequencyRated Input PowerSpeedMaximum Air FlowMaximum Air PressureNoise

VACVACHzWattR.P.MCMHCFMmmH2OINH2ODB-A
Φ355-H11011080to13550/6039020003599.662116.6104.194.178
Φ355-H220220180to26550/60390
