Axial cooling fan , DC Cooling fan, DC Brushless fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

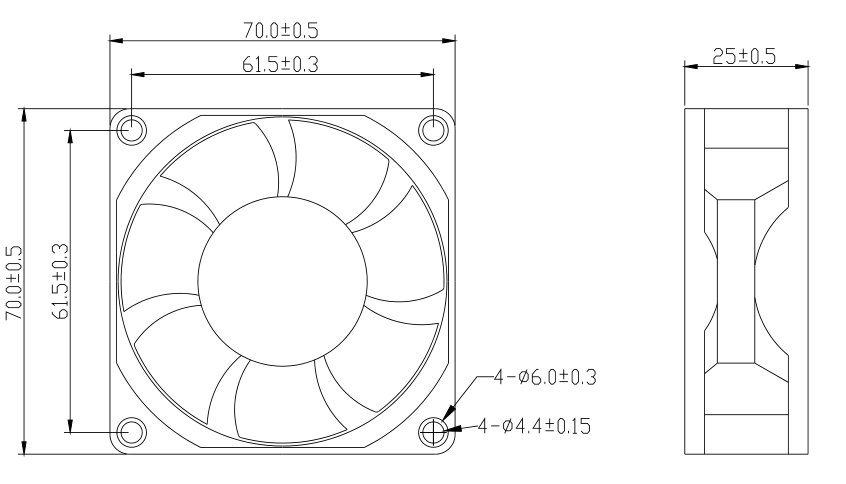

| Size: 70*70*25mm Series
| Voltage: DC 12V-48V
| Current: 0.04-0.22Amp
| Speed: 3000-6000rpm
| Total Airflow: 26-54.55CFM
| Air Pressure: 3.34-13.43mmH2O
| Total Noise: 30-53dBA

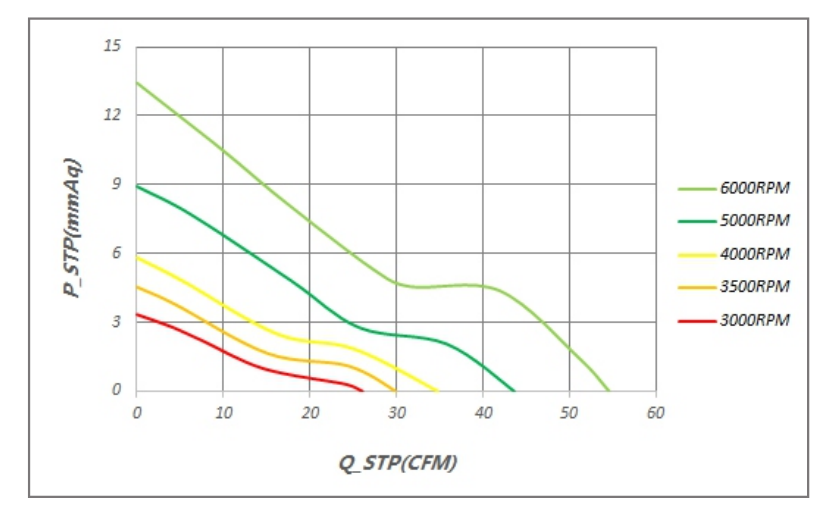

| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 70*70*25-L12 | 12 | 7.0to13.5 | 0.14 | 1.68 | 3000 | 0.74 | 26.05 | 3.34 | 0.13 | 30.3 |
| 70*70*25-L24 | 24 | 18to26.5 | 0.07 | 1.68 | ||||||
| 70*70*25-M12 | 12 | 7.0to13.5 | 0.18 | 2.16 | 3500 | 0.85 | 29.9 | 4.54 | 0.18 | 35.2 |
| 70*70*25-M24 | 24 | 18to26.5 | 0.09 | 2.16 | ||||||
| 70*70*25-H12 | 12 | 7.0to13.5 | 0.22 | 2.64 | 4000 | 0.98 | 34.76 | 5.82 | 0.23 | 38.6 |
| 70*70*25-H24 | 24 | 18to26.5 | 0.11 | 2.64 | ||||||
| 70*70*25-H12-HH | 12 | 7.0to13.5 | 0.31 | 3.72 | 5000 | 1.23 | 43.59 | 8.92 | 0.35 | 45.1 |
| 70*70*25-H24-HH | 24 | 18to26.5 | 0.16 | 3.84 | ||||||
| 70*70*25-H12-VH | 12 | 7.0to13.5 | 0.68 | 8.16 | 6000 | 1.54 | 54.55 | 13.43 | 0.53 | 53.6 |
| 70*70*25-H24-VH | 24 | 18to26.5 | 0.30 | 7.20 | ||||||
| 70*70*25-H48-VH | 48 | 36to54 | 0.15 | 7.20 | ||||||
