OEM EC Fan,EC Brushless Fan,EC Cooling fan,Axial Fan
* Bearings: Ball Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* CE Certificated.
* Customizable Wire and Connectors
* Long lifespan.
Download
3D Model
SHARE:
Product details:

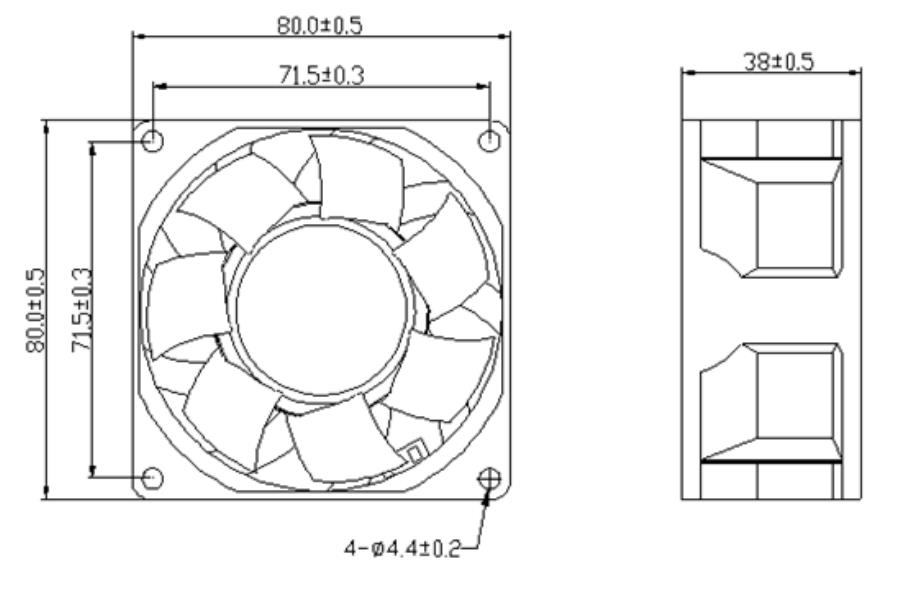

| Size: 80*80*38mm-1 Series
| Voltage: EC/AC 80-265V
| Frequescy: 50/60Hz
| Speed: 5000rpm

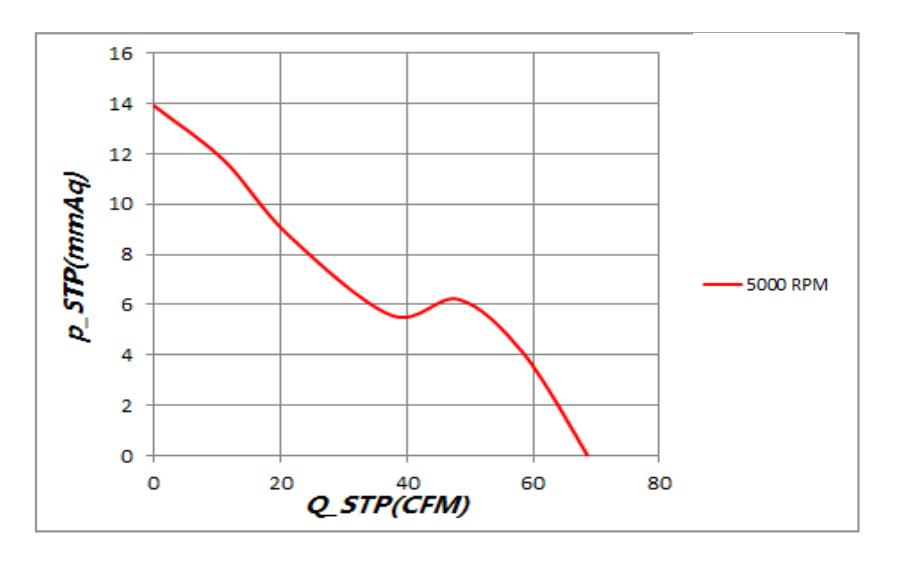

| Total Airflow: 62.3CFM
| Air Pressure: 13.6mmH2O
| Total Noise: 52.1dBA
| Size | Rated Voltage | Operating Voltage Range | Frequency | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VAC | VAC | Hz | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 80*80*38-H110 | 110 | 80to135 | 50/60 | 9 | 5000 | 1.76 | 62.3 | 13.6 | 0.45 | 52.1 |
| 80*80*38-H220 | 220 | 180to265 | 50/60 | 9 | ||||||
