DC Fan ,DC Brushless Fan,DC Cooling fan,Axial DC Fan manufacturer
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

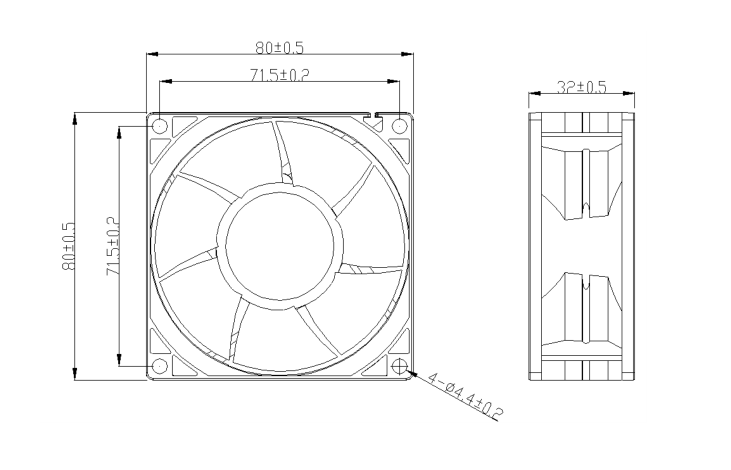

| Size: 80*80*32mm Series
| Voltage: DC 12V-48V
| Current: 0.06-1.2Amp
| Speed: 3500-7000rpm
| Total Airflow: 46.55-93.64CFM
| Air Pressure: 7.3-25.28mmH2O
| Total Noise: 39-59dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 80*80*32-L12 | 12 | 8.0to13.5 | 0.22 | 2.64 | 3500 | 1.32 | 46.55 | 7.3 | 0.287 | 39 |
| 80*80*32-L24 | 24 | 18to26.6 | 0.1 | 2.4 | ||||||
| 80*80*32-L48 | 48 | 36to54 | 0.06 | 2.88 | ||||||
| 80*80*32-M12 | 12 | 8.0to13.5 | 0.4 | 4.8 | 4500 | 1.7 | 60 | 11.88 | 0.467 | 45.8 |
| 80*80*32-M24 | 24 | 18to26.6 | 0.18 | 4.32 | ||||||
| 80*80*32-M48 | 48 | 36to54 | 0.1 | 4.8 | ||||||
| 80*80*32-H12 | 12 | 8.0to13.5 | 0.6 | 7.2 | 5500 | 2.11 | 74.5 | 18.1 | 0.71 | 51 |
| 80*80*32-H24 | 24 | 18to26.6 | 0.3 | 7.2 | ||||||
| 80*80*32-H48 | 48 | 36to54 | 0.2 | 9.6 | ||||||
| 80*80*32-H12-HH | 12 | 8.0to13.5 | 0.7 | 8.4 | 6000 | 2.31 | 81.52 | 21.61 | 0.85 | 54 |
| 80*80*32-H24-HH | 24 | 18to26.6 | 0.36 | 8.64 | ||||||
| 80*80*32-H48-HH | 48 | 36to54 | 0.22 | 10.56 | ||||||
| 80*80*32-H12-VH | 12 | 8.0to13.5 | 1.2 | 14.4 | 7000 | 2.65 | 93.64 | 25.28 | 0.99 | 59 |
| 80*80*32-H24-VH | 24 | 18to26.6 | 0.6 | 14.4 | ||||||
| 80*80*32-H48-VH | 48 | 36to54 | 0.3 | 14.4 | ||||||
