220mm EC telecom backward centrifugal blower fan for ventilation telecom

220MM Centrifugal fan, backward centrifugal fan, EC Backward centrifugal fan


| Size: 220mm Diameter

| Voltage: EC 80-265V

| Current: 50/60Hz

| Speed: 2650/3200rpm

| Total Airflow: 503.3/653.9CFM

| Air Pressure: 43.15/60.5 mmH2O

| Total Noise: 70/72dBA


Send Inquiry Download 3D Model

SHARE:

Product Details

Product details:

 * Bearings: Ball Bearing

 * Premium Plastic material(UL 94V-0)

 * 0-10V/PWM Stepless-speed control constantly variable speed.

 * Brushless DC external Rotor Motor, Motor Protection Type: IP44/IP54

 * Special Rotor Opening Design,Tecch output, Locked-rotor protection,Over voltage protection, over-currect protection, solf start protection.

 * Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB),Speed control mode(PWM/TC/VC/CC/CS).

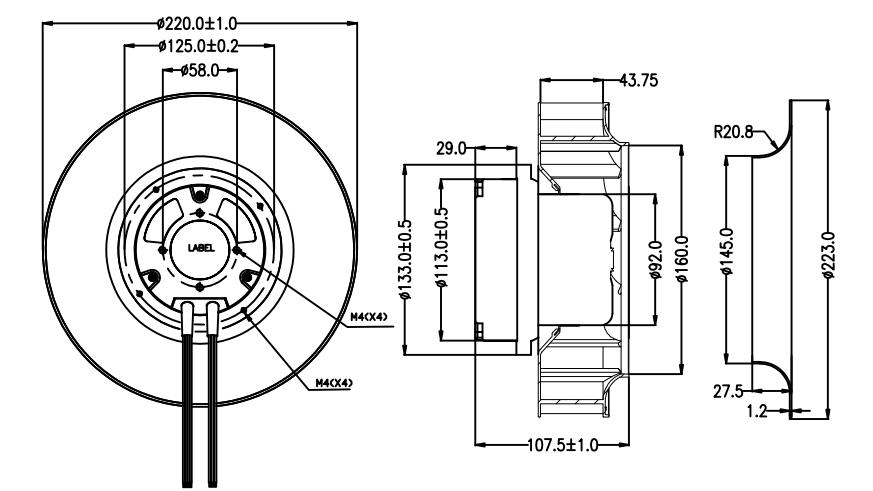

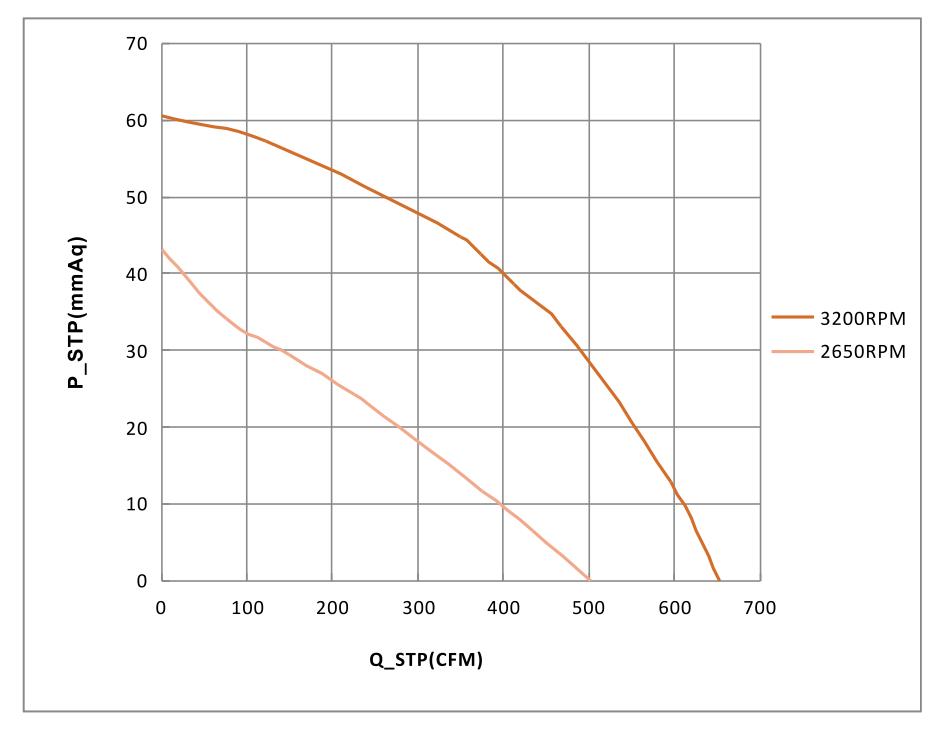

220mm EC telecom backward centrifugal blower fan for ventilation telecom(图1)220mm EC telecom backward centrifugal blower fan for ventilation telecom(图2)

Compare With Similar Items

SizeRated VoltageOperating Voltage RangeFrequencyRated Input PowerSpeedMaximum Air FlowMaximum Air PressureNoise

VACVACHzWattR.P.MCMHCFMmmH2OINH2ODB-A
Φ220-H11011080to13550/60602650855.6503.343.151.770.5
Φ220-H220220180to26550/6060
Φ220-H11011080to13550/6015032001111.5653.960.52.3872.0
Φ220-H220220180to26550/60150
