Frameless dc coolingfan , Brushless axial DC fan , Mini DC fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 Material.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

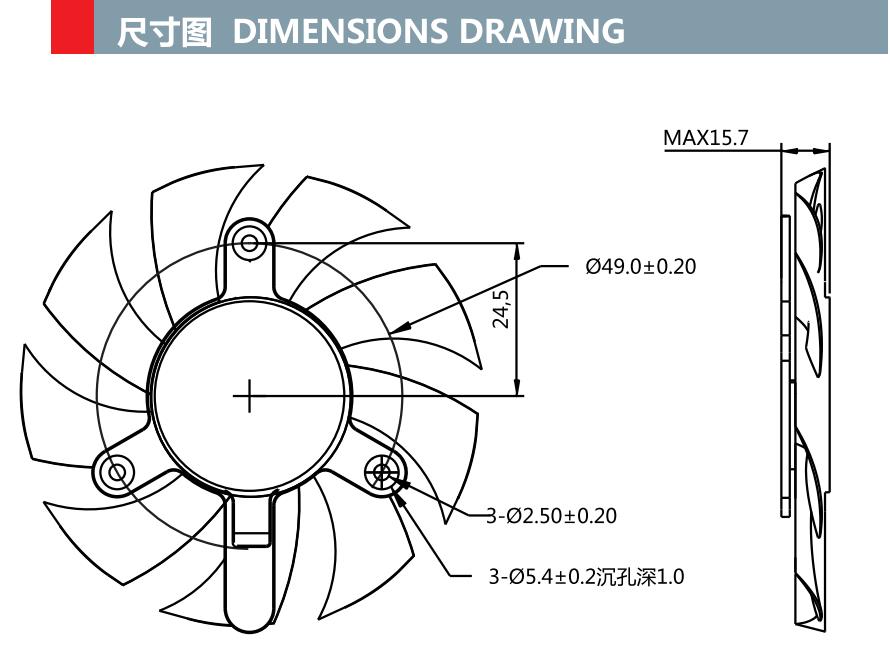

| Size: 80*80*15mm Series
| Voltage: DC 5V-24V
| Current: 0.02-0.7 Amp
| Speed: 1500-3200rpm
| Airflow: 14.64-31.24CFM

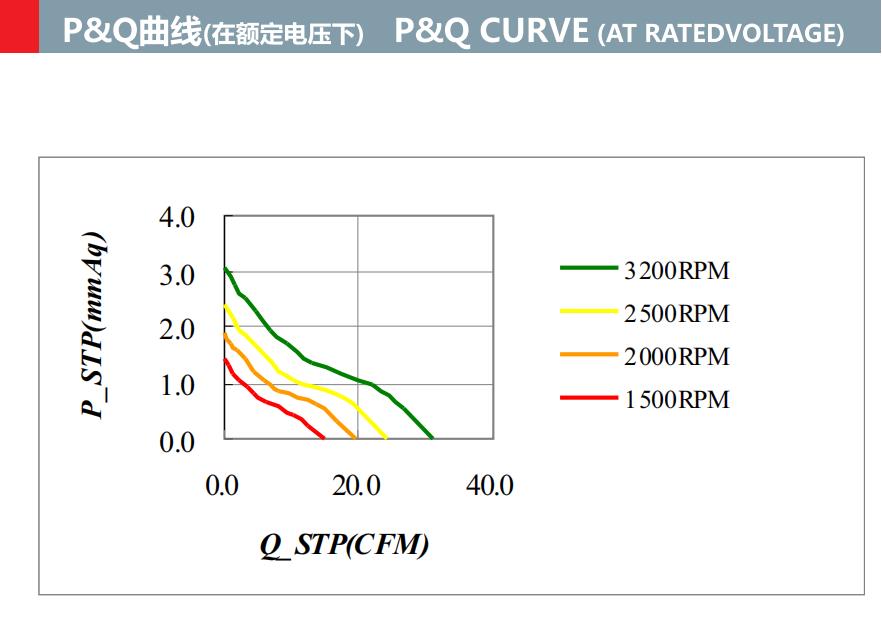

| Air Pressure: 1.43-3.05mmH2O
| Total Noise: 19.8-32.1dBA
| MODEL | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YY8015L05 | 5 | 3.6to6.8 | 0.09 | 0.45 | 1500 | 0.42 | 14.64 | 1.43 | 0.06 | 19.8 | |
| YY8015L12 | 12 | 7.0to13.5 | 0.04 | 0.48 | |||||||
| YY8015L24 | 24 | 18to26.5 | 0.02 | 0.48 | |||||||
| YY8015M05 | 5 | 3.6to6.8 | 0.17 | 0.85 | 2000 | 0.55 | 19.53 | 1.91 | 0.08 | 24.6 | |
| YY8015M12 | 12 | 7.0to13.5 | 0.07 | 0.84 | |||||||
| YY8015M24 | 24 | 18to26.5 | 0.03 | 0.76 | |||||||
| YY8015H05 | 5 | 3.6to6.8 | 0.32 | 1.60 | 2500 | 0.69 | 24.41 | 2.39 | 0.09 | 28.7 | |
| YY8015H12 | 12 | 7.0to13.5 | 0.13 | 1.56 | |||||||
| YY8015H24 | 24 | 18to26.5 | 0.06 | 1.44 | |||||||
| YY8015H05-HH | 5 | 3.6to6.8 | 0.7 | 3.50 | 3200 | 0.89 | 31.24 | 3.05 | 0.12 | 32.1 | |
| YY8015H12-HH | 12 | 7.0to13.5 | 0.28 | 3.36 | |||||||
| YY8015H24-HH | 24 | 18to26.5 | 0.13 | 3.12 | |||||||
