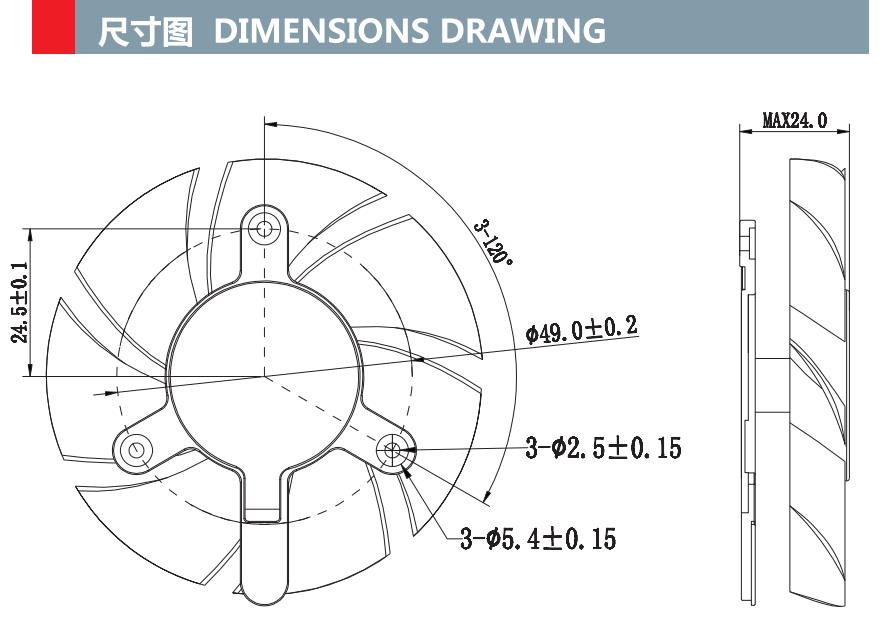

Frameless dc coolingfan , Brushless axial DC fan , Mini DC fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 Material.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:
| Size: 80*80*25mm Series
| Voltage: DC 5V-24V
| Current: 0.02-1.39 Amp
| Speed: 2000-4500rpm
| Airflow: 23.48-52.83CFM
| Air Pressure: 3.78-8.5mmH2O
| Total Noise: 25.2-49.1dBA
| MODEL | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YY8025L05 | 5 | 3.6to6.8 | 0.13 | 0.65 | 2000 | 0.67 | 23.48 | 3.78 | 0.15 | 25.2 | |
| YY8025L12 | 12 | 7.0to13.5 | 0.05 | 0.6 | |||||||
| YY8025L24 | 24 | 18to26.5 | 0.02 | 0.48 | |||||||
| YY8025M05 | 5 | 3.6to6.8 | 0.21 | 1.05 | 2500 | 0.83 | 29.35 | 4.72 | 0.19 | 28.3 | |
| YY8025M12 | 12 | 7.0to13.5 | 0.08 | 1.06 | |||||||
| YY8025M24 | 24 | 18to26.5 | 0.04 | 0.96 | |||||||
| YY8025H05 | 5 | 3.6to6.8 | 0.35 | 1.75 | 3000 | 1 | 35.22 | 5.67 | 0.22 | 35.2 | |
| YY8025H12 | 12 | 7.0to13.5 | 0.14 | 1.68 | |||||||
| YY8025H24 | 24 | 18to26.5 | 0.07 | 1.58 | |||||||
| YY8025H05-HH | 5 | 3.6to6.8 | 0.57 | 2.85 | 3500 | 1.17 | 41.09 | 6.61 | 0.26 | 37.6 | |
| YY8025H12-HH | 12 | 7.0to13.5 | 0.23 | 2.76 | |||||||
| YY8025H24-HH | 24 | 18to26.5 | 0.11 | 2.54 | |||||||
| YY8025H05-VH | 5 | 3.6to6.8 | 0.92 | 4.6 | 4000 | 1.33 | 46.96 | 7.55 | 0.3 | 42.9 | |
| YY8025H12-VH | 12 | 7.0to13.5 | 0.36 | 4.32 | |||||||
| YY8025H24-VH | 24 | 18to26.5 | 0.17 | 4.18 | |||||||
| YY8025H05-SH | 5 | 3.6to6.8 | 1.39 | 6.95 | 4500 | 1.5 | 52.83 | 8.5 | 0.34 | 49.1 | |
| YY8025H12-SH | 12 | 7.0to13.5 | 0.55 | 6.6 | |||||||
| YY8025H24-SH | 24 | 18to26.5 | 0.26 | 6.24 | |||||||
Link: Rubber 3D print
