Centrifugal fan,Centrifugal fan DC,Centrifugal fan 12V
* Bearings: Ball Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

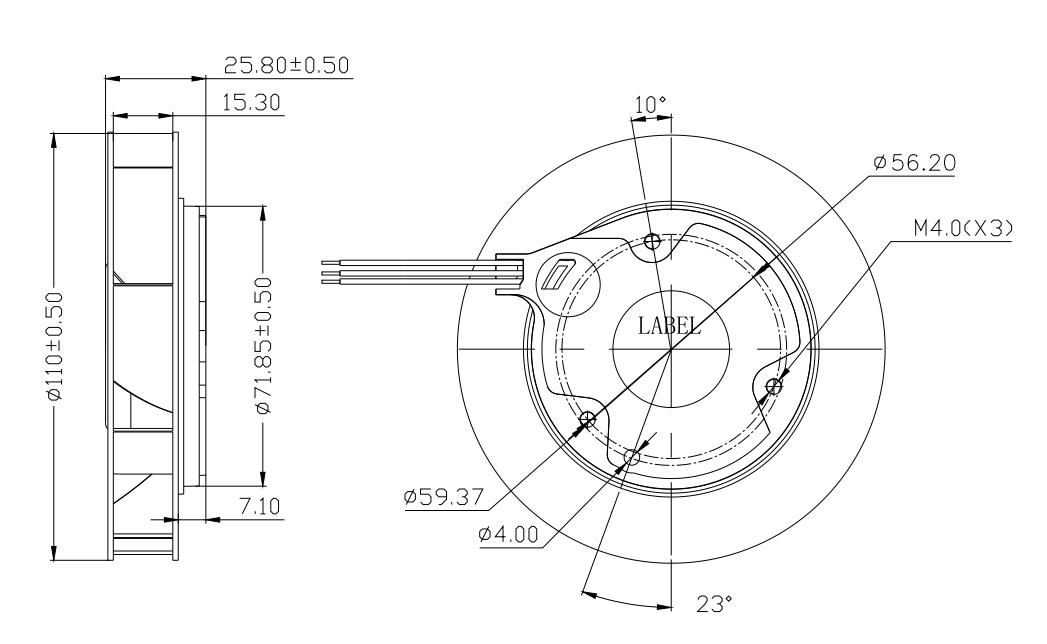

| Size: 110*110*25mm
| Voltage: DC 12V-24V
| Current: 0.33-0.68Amp
| Speed: 4000rpm
| Total Airflow: 71.92CFM
| Air Pressure: 23.09 mmH2O
| Total Noise: 55.89dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | CMM | CFM | mmH2O | INH2O | DB-A | |
| Φ110-H12 | 12 | 7.0to13.5 | 0.68 | 8.16 | 4000 | 2.04 | 71.92 | 23.09 | 0.91 | 55.89 |
| Φ110-H24 | 24 | 18to26.5 | 0.33 | 7.92 | ||||||
