10025 Centrifugal Fan,Centrifugal fan,DC Centrifugal fan
* Bearings: Ball Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

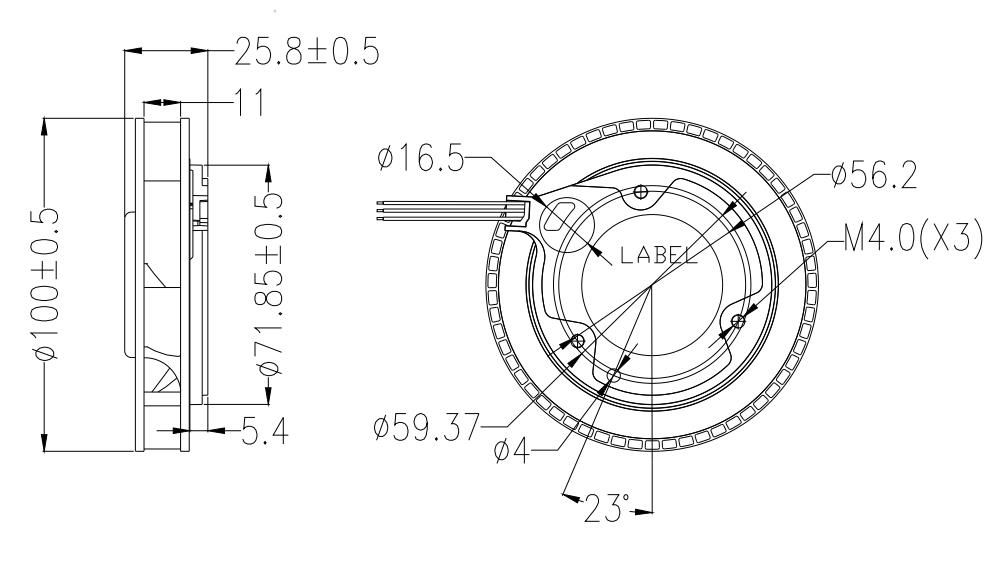

| Size: 100*100*25mm
| Voltage: DC 12V-24V
| Current: 0.27-0.53Amp
| Speed: 4500rpm

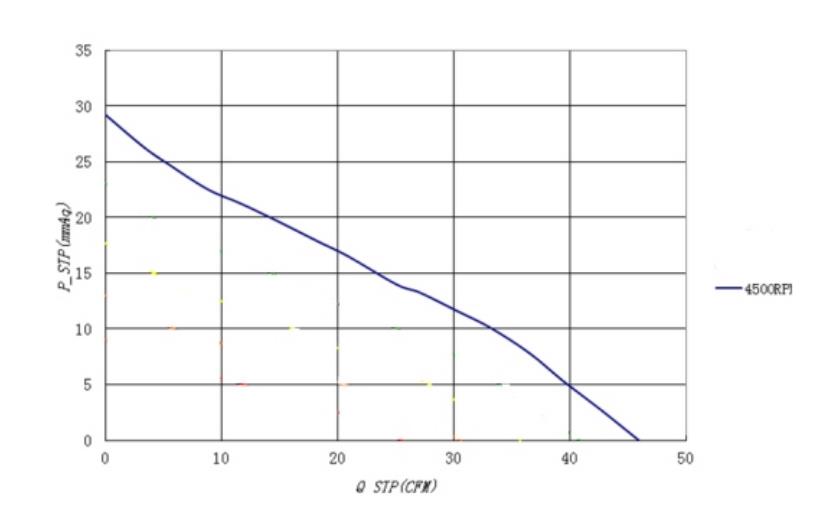

| Total Airflow: 45.96CFM
| Air Pressure: 19.69 mmH2O
| Total Noise: 53.3dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | CMM | CFM | mmH2O | INH2O | DB-A | |
| Φ100-H12 | 12 | 7.0to13.5 | 0.53 | 6.36 | 4500 | 1.30 | 45.96 | 19.69 | 1.15 | 53.3 |
| Φ100-H24 | 24 | 18to26.5 | 0.27 | 6.48 | ||||||
