High Air Flow 48V Round 400mm DC Centrifugal Fan PWM Control Ventilation Fan

Strong Centrifugal fan,48V Centrifugal fan ,centrifugal exhaust fan


| Size: 400MM Diameter

| Voltage: DC 48V

| Current: 8.5 Amp

| Speed: 1500rpm

| Total Airflow: 1687.77CFM

| Air Pressure: 83 mmH2O

| Total Noise: 65.88dBA


Send Inquiry Download 3D Model

SHARE:

Product Details

Product details:

 * Bearings: Ball Bearing

 * Strong aluminum Impeller

 * 0-10V/PWM Stepless-speed control constantly variable speed.

 * Brushless DC external Rotor Motor, Motor Protection Type: IP44/IP54

 * Special Rotor Opening Design,Tecch output, Locked-rotor protection,Over voltage protection, over-currect protection, solf start protection.

 * Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB),Speed control mode(PWM/TC/VC/CC/CS).

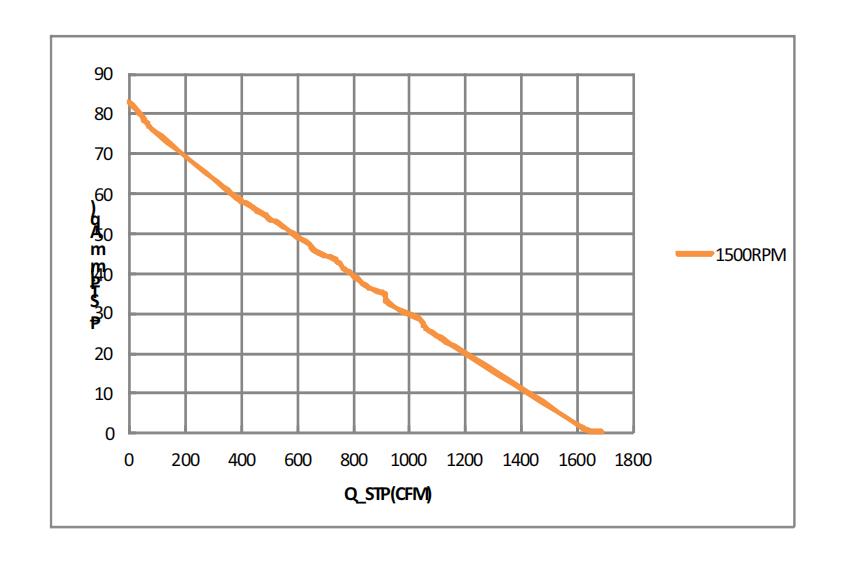

High Air Flow 48V Round 400mm DC Centrifugal Fan PWM Control Ventilation Fan(图1)

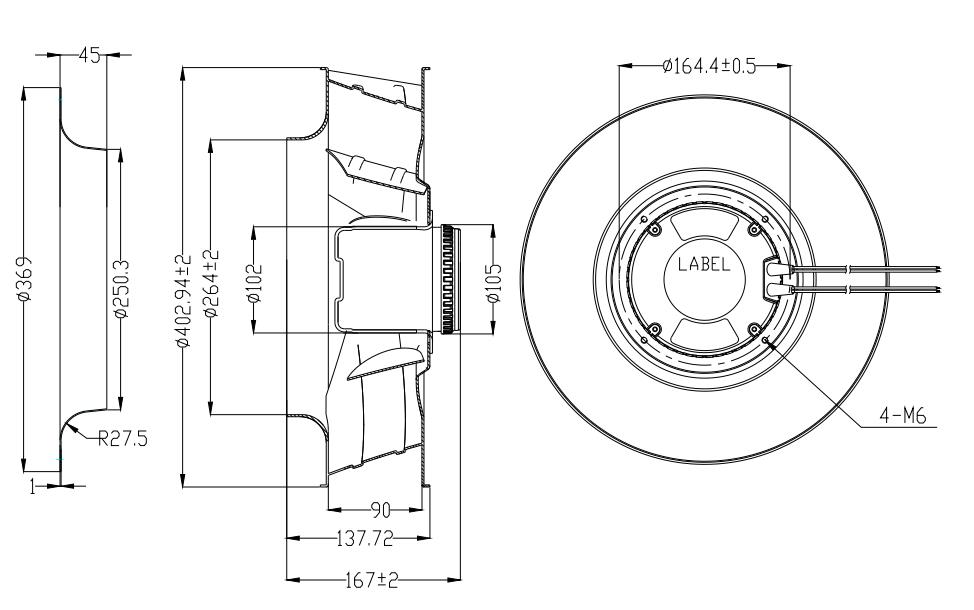

High Air Flow 48V Round 400mm DC Centrifugal Fan PWM Control Ventilation Fan(图2)

Compare With Similar Items

SizeRated VoltageOperating Voltage RangeRated CurrentRated Input PowerSpeedMaximum Air FlowMaximum Air PressureNoise

VDCVDCAmpWattR.P.MCMHCFMmmH2OINH2ODB-A
Φ400-H48B4836to548.5408.0 15002870.361687.7783.00 3.2765.88
