254*89mm Industrial Ventilation Fans Cooling Electric axial flow EC fans

25489 EC Fan,EC Cooling Fan,EC Axial Fans


 * Bearings: Ball Bearing

 * Long Lifespan Up to 70 000 hrs.

 * Strong quality Aluminum Material.

 * Premium Environmental and fire prevention PBT UL94V-0 impeller.

 * CE Certificated.

 * Customizable Wire and Connectors

Send Inquiry Download 3D Model

SHARE:

Product Details

Product details:


| Size: 254*89mm Series

| Voltage: EC/AC 80-265V

| Frequency: 50/60Hz

| Speed: 2500rpm

| Total Airflow: 739.23CFM

| Air Pressure: 21.66mmH2O

| Total Noise: 65.4dBA

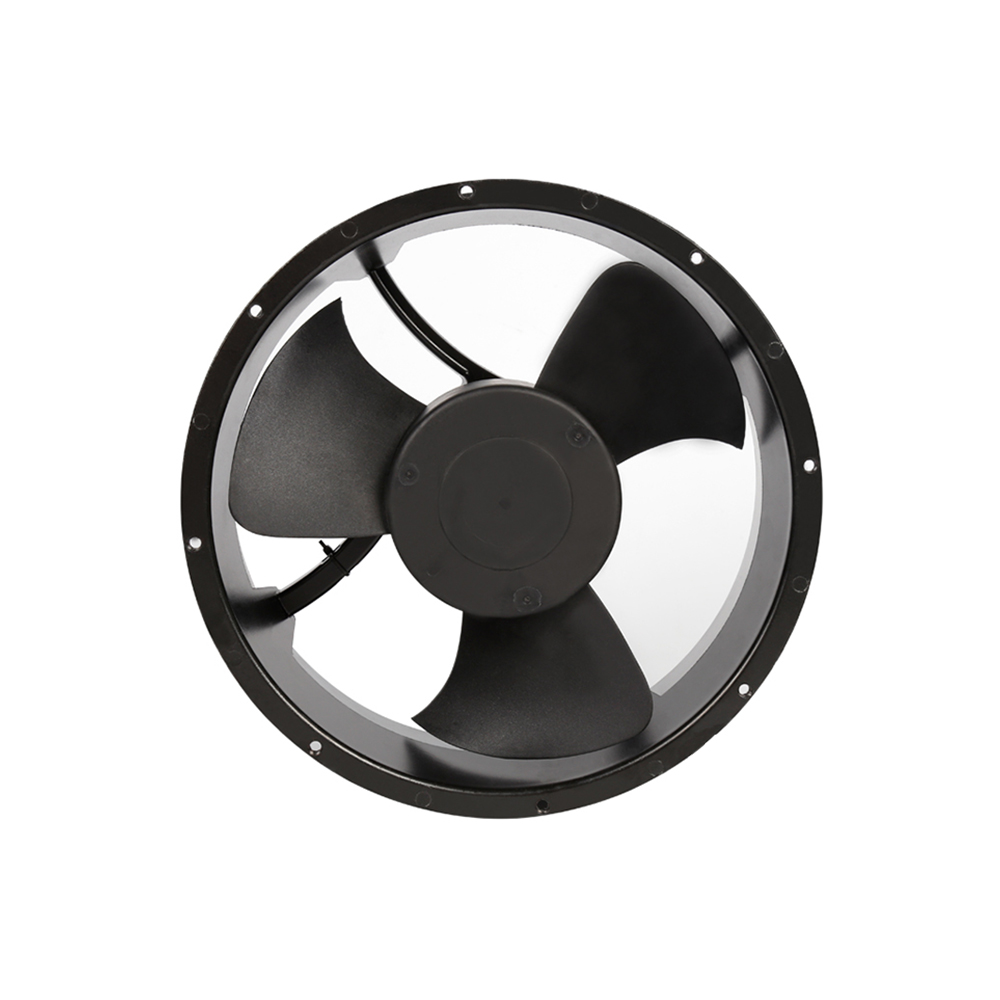

254*89mm Industrial Ventilation Fans Cooling Electric axial flow EC fans(图1)

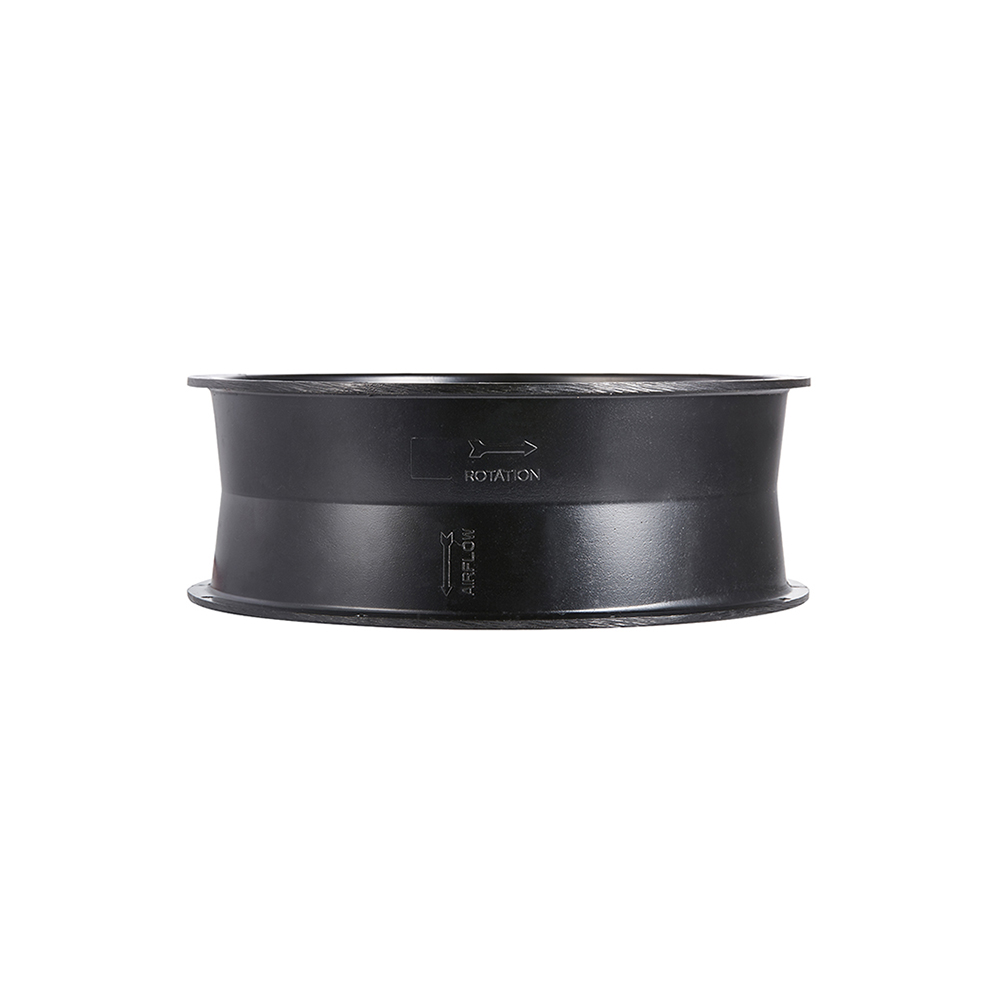

254*89mm Industrial Ventilation Fans Cooling Electric axial flow EC fans(图2)

Compare With Similar Items

MODELRated
Voltage
Operating
Voltage Range
FrequencyRated Input
Power
SpeedMaximum
Air Flow
Maximum
Air Pressure
NoiseDownload
Specifications
PART NO.VACVACHzWattR.P.Mm3/minCFMmmH2OINH2ODB-A
YE25489H11011080to13550/6060250020.95739.2321.660.8565.4

254*89mm Industrial Ventilation Fans Cooling Electric axial flow EC fans(图1)YE25489H110

YE25489H220220180to26550/6060

254*89mm Industrial Ventilation Fans Cooling Electric axial flow EC fans(图1)YE25489H220
