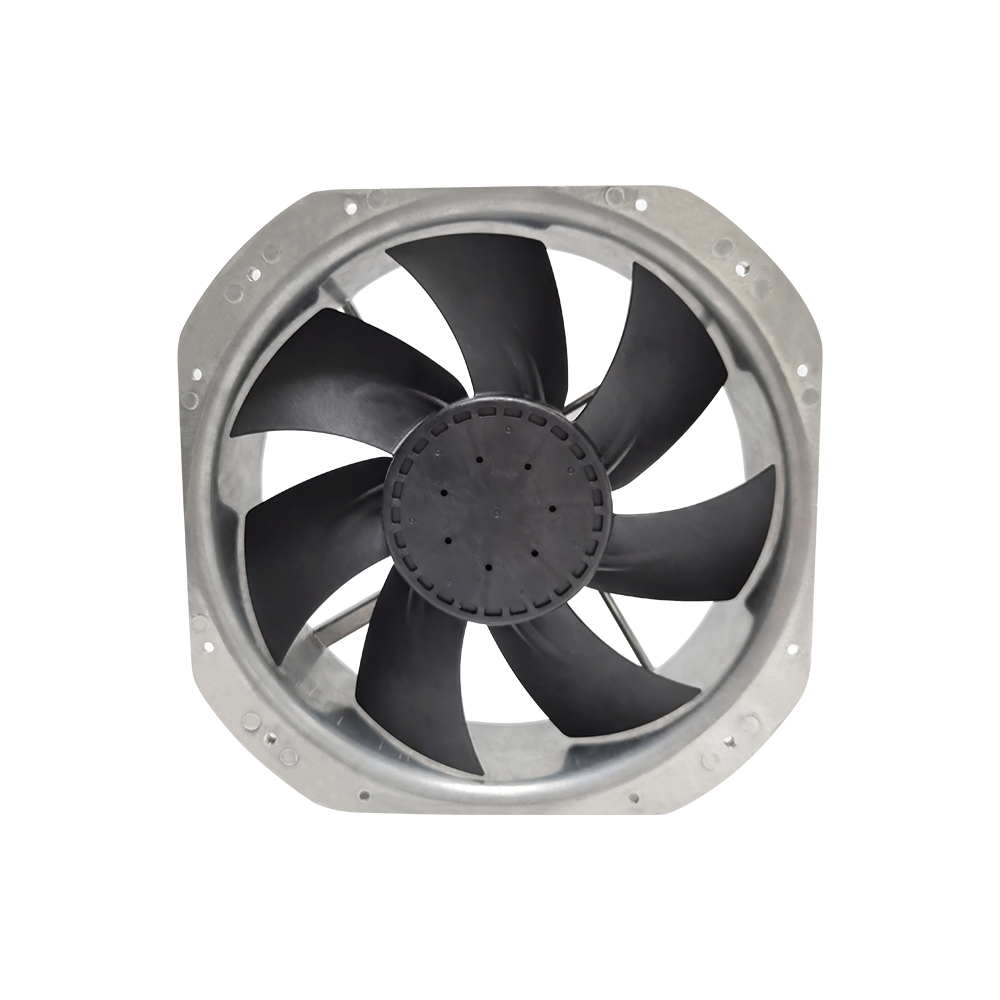

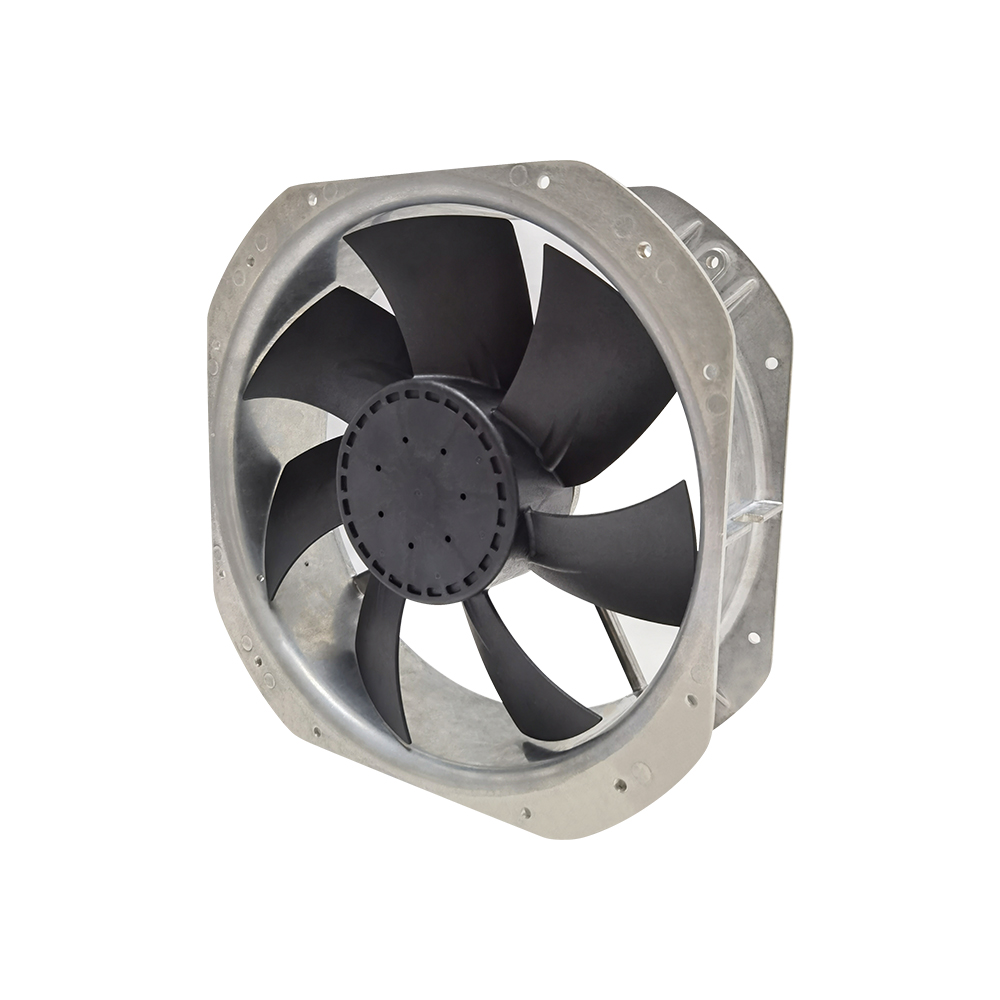

28090 EC Fan,EC Cooling Fan,EC Axial Fans
* Bearings: Ball Bearing
* Long Lifespan Up to 70 000 hrs.
* Strong quality Aluminum Material.
* Premium Environmental and fire prevention PBT UL94V-0 impeller.
* CE Certificated.
* Customizable Wire and Connectors
Download
3D Model
SHARE:
Product details:

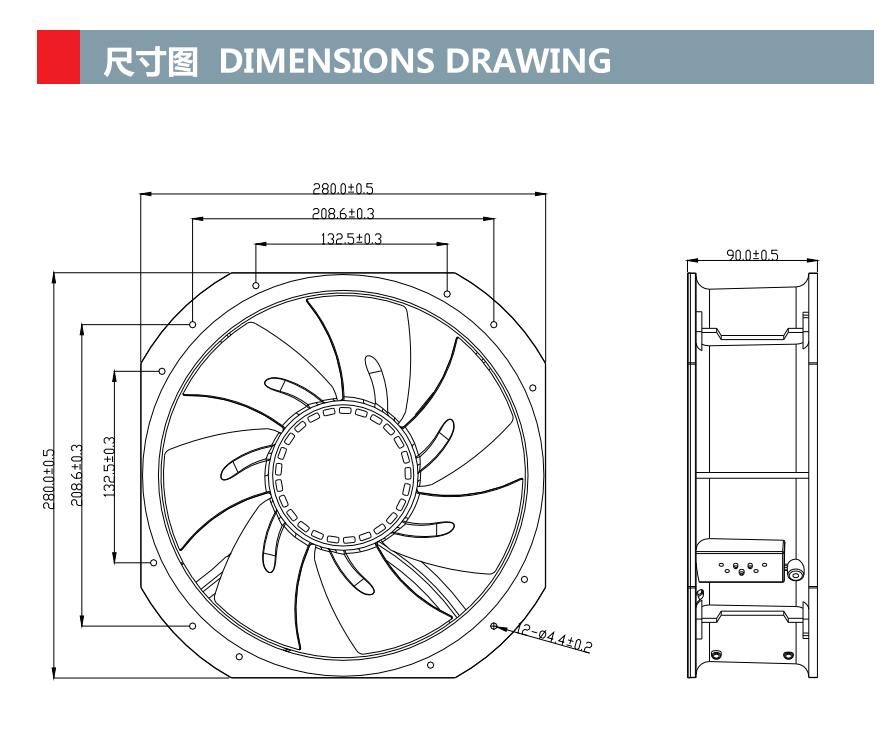

| Size: 280*280*90mm Series
| Voltage: EC/AC 80-265V
| Frequency: 50/60Hz
| Speed: 2500rpm
| Total Airflow: 1138.5CFM
| Air Pressure: 20.58mmH2O
| Total Noise: 67.8dBA
| MODEL | Rated Voltage | Operating Voltage Range | Frequency | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VAC | VAC | Hz | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YE28090H110 | 110 | 80to135 | 50/60 | 98 | 2500 | 32.26 | 1138.5 | 20.58 | 0.82 | 67.8 | |
| YE28090H220 | 220 | 180to265 | 50/60 | 98 | |||||||
