140x140x25mm Industrial Ventilation Fans Cooling Electric axial flow EC fans

14025 EC Fan,EC Cooling Fan,EC Axial Fans


 * Bearings: Ball Bearing

 * Long Lifespan Up to 70 000 hrs.

 * High quality PBT Material.

 * Premium Environmental and fire prevention PBT UL94V-0 impeller.

 * CE Certificated.

 * Customizable Wire and Connectors


Send Inquiry Download 3D Model

SHARE:

Product Details

Product details:


| Size: 140*140*25mm Series

| Voltage: EC/AC 80-265V

| Frequency: 50/60Hz

| Speed: 1800rpm

| Total Airflow: 76.1CFM

| Air Pressure: 1.7mmH2O

| Total Noise: 38.8dBA

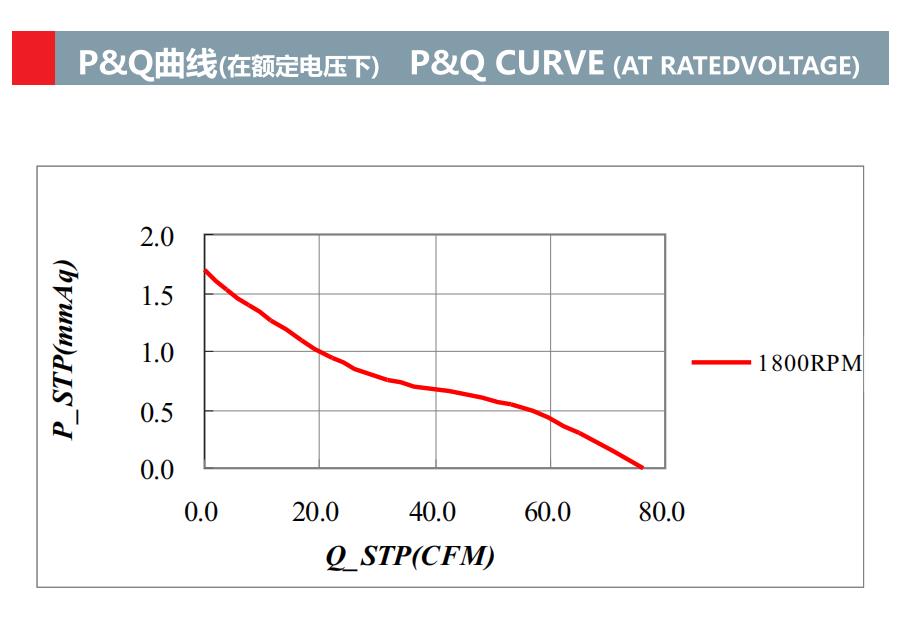

140x140x25mm Industrial Ventilation Fans Cooling Electric axial flow EC fans(图1)

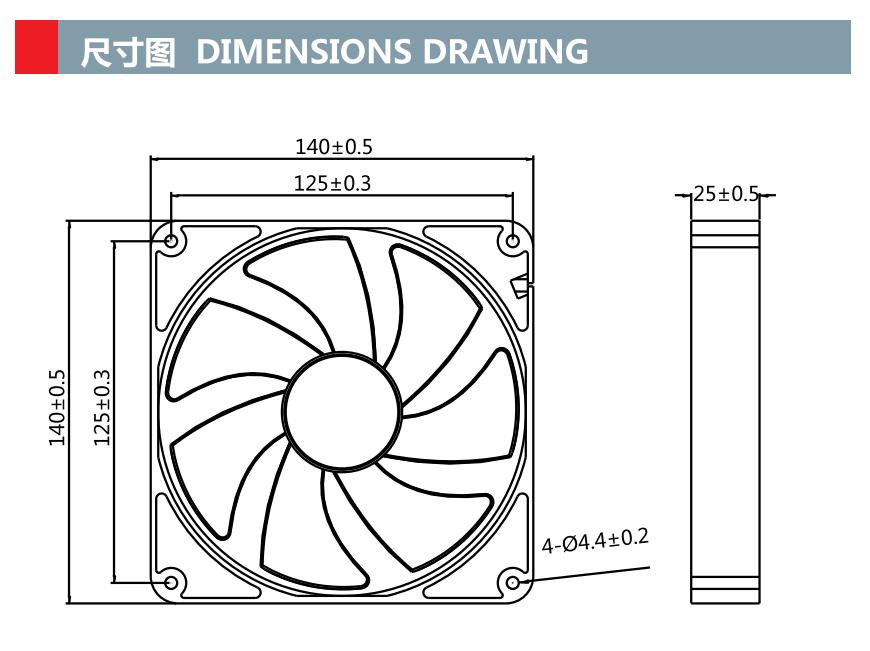

140x140x25mm Industrial Ventilation Fans Cooling Electric axial flow EC fans(图2)

Compare With Similar Items

MODELRated
Voltage
Operating
Voltage Range
FrequencyRated Input
Power
SpeedMaximum
Air Flow
Maximum
Air Pressure
NoiseDownload
Specifications
PART NO.VACVACHzWattR.P.Mm3/minCFMmmH2OINH2ODB-A
YE14025L11011080to13550/604.018002.1676.101.700.0738.8
YE14025L220220180to26550/604.0
