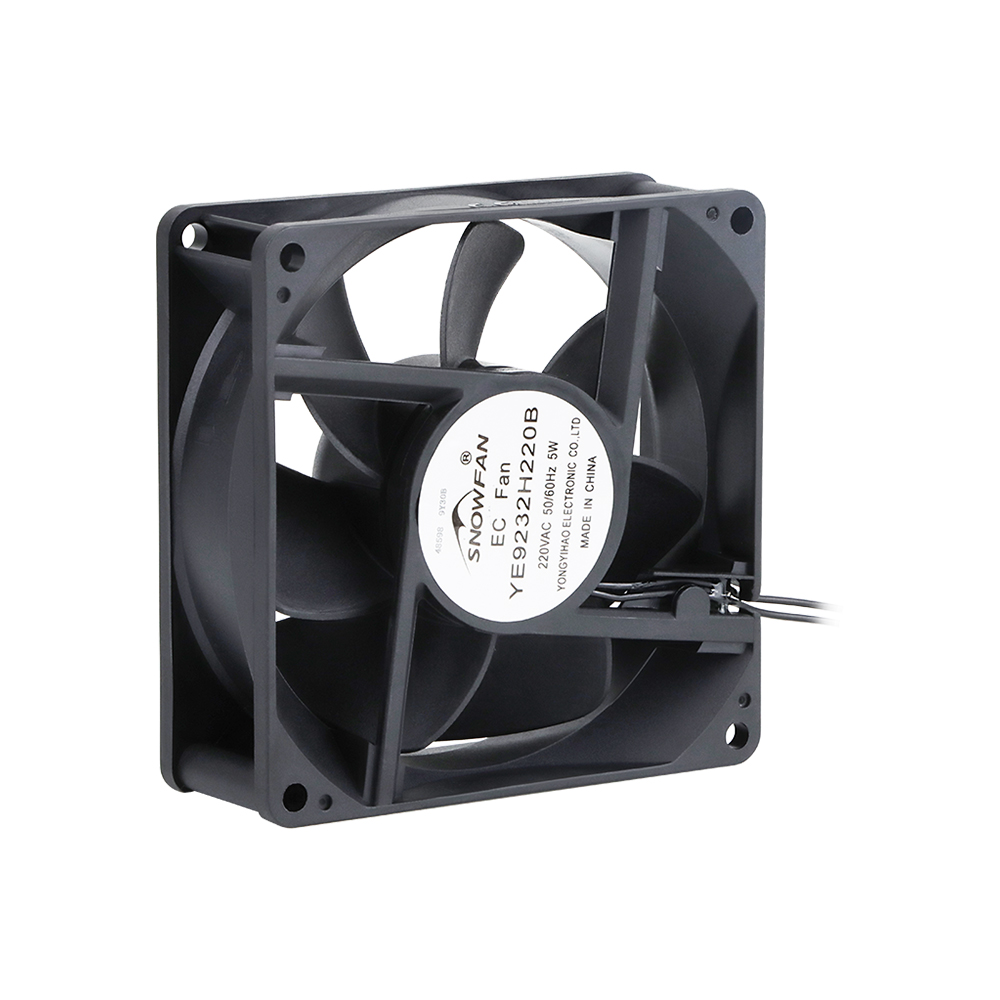

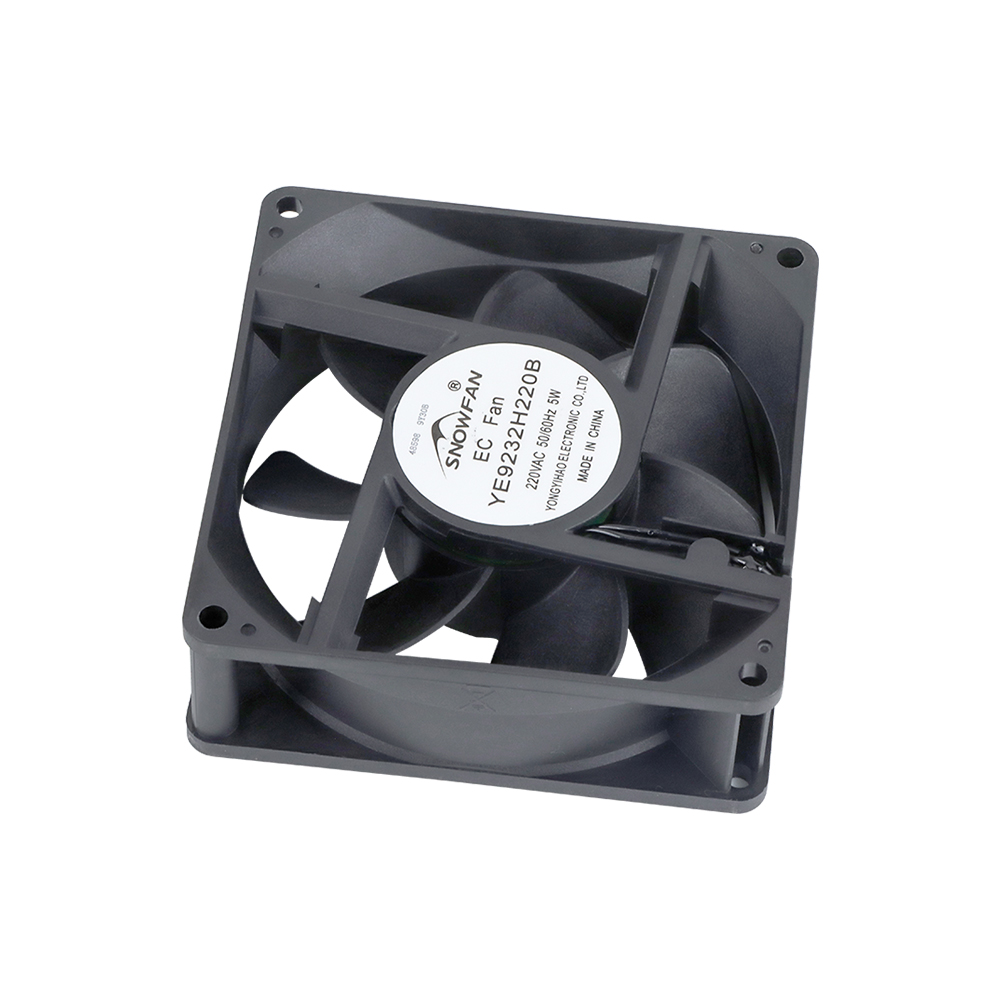

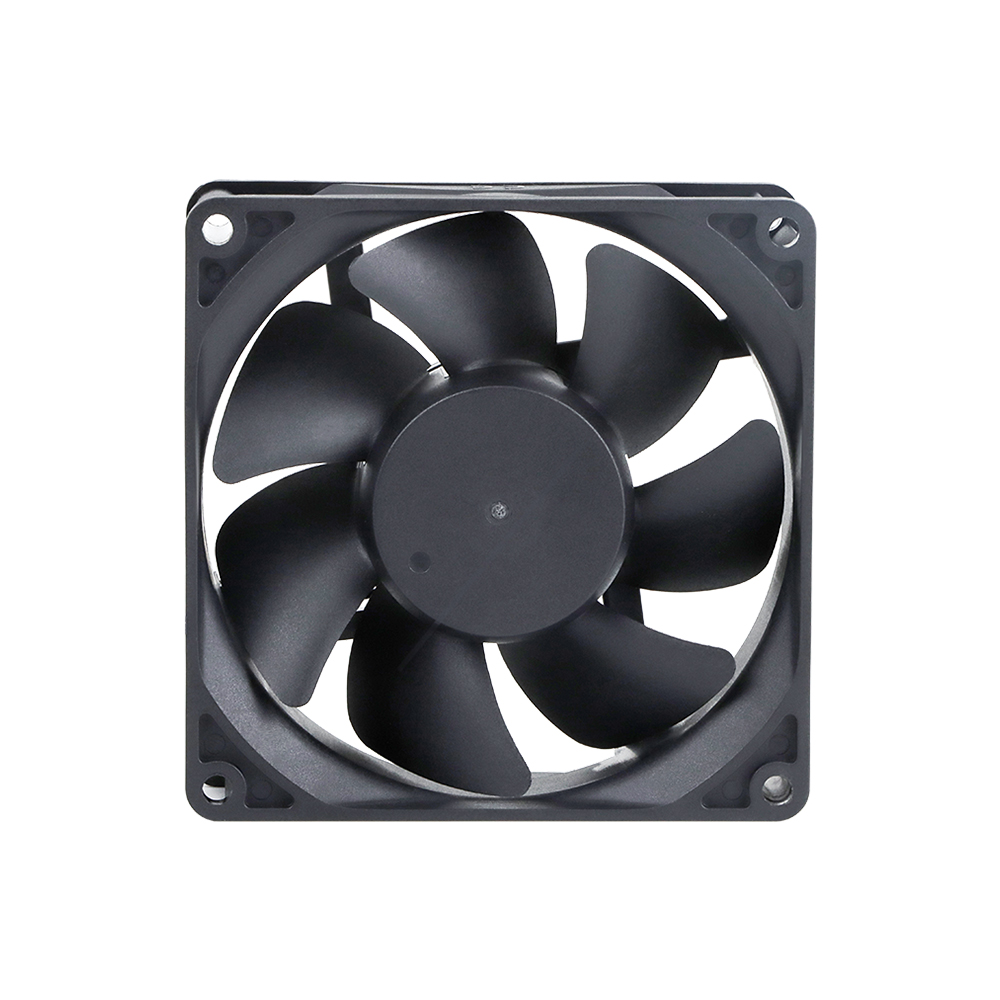

9232 EC Fan,EC Cooling Fan,EC Axial Fans
* Bearings: Ball Bearing
* Long Lifespan Up to 70 000 hrs.
* High quality PBT Material.
* Premium Environmental and fire prevention PBT UL94V-0 impeller.
* CE Certificated.
* Customizable Wire and Connectors
Download
3D Model
SHARE:
Product details:
| Size: 92*92*32mm Series
| Voltage: EC/AC 80-265V
| Frequency: 50/60Hz
| Speed: 3500rpm
| Total Airflow: 56.66CFM
| Air Pressure: 4.24mmH2O
| Total Noise: 43.7dBA
| MODEL | Rated Voltage | Operating Voltage Range | Frequency | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VAC | VAC | Hz | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YE9232M110 | 110 | 80to135 | 50/60 | 6 | 3500 | 1.60 | 56.66 | 4.24 | 0.17 | 43.7 | |
| YE9232M220 | 220 | 180to265 | 50/60 | 6 | |||||||
