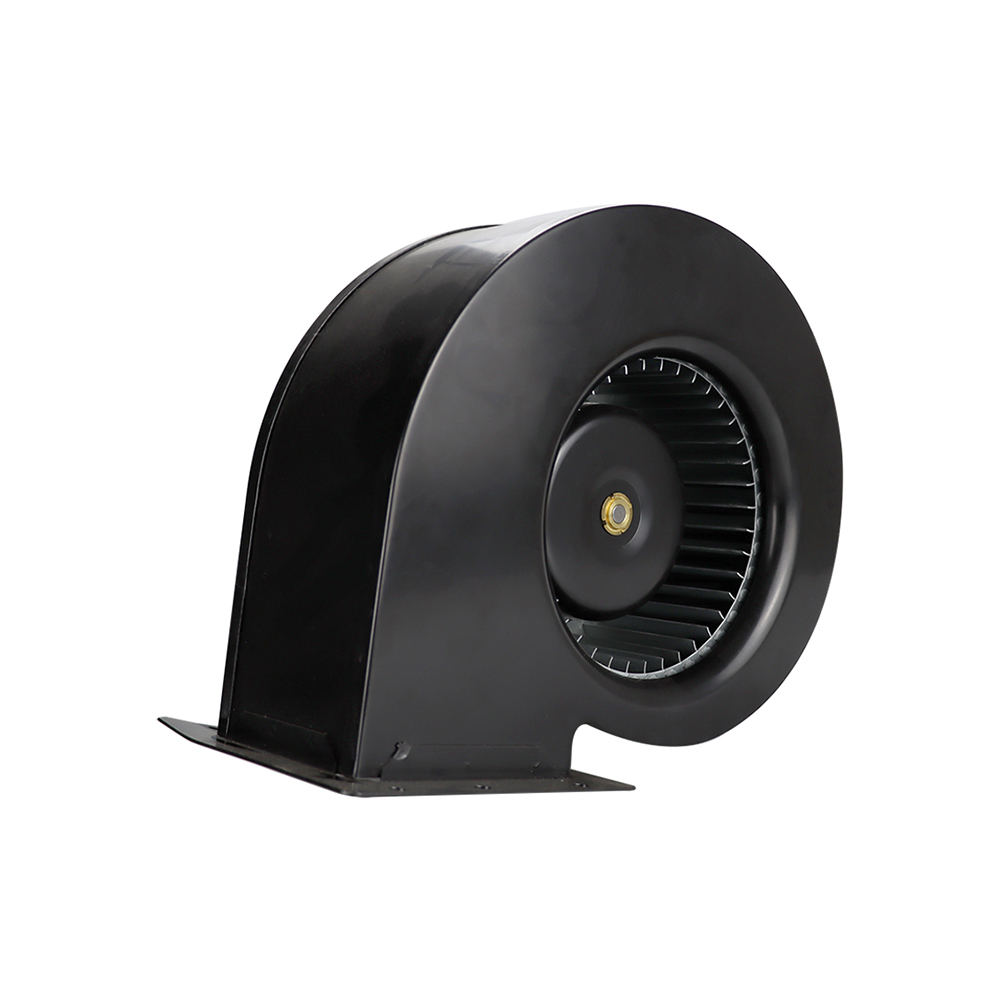

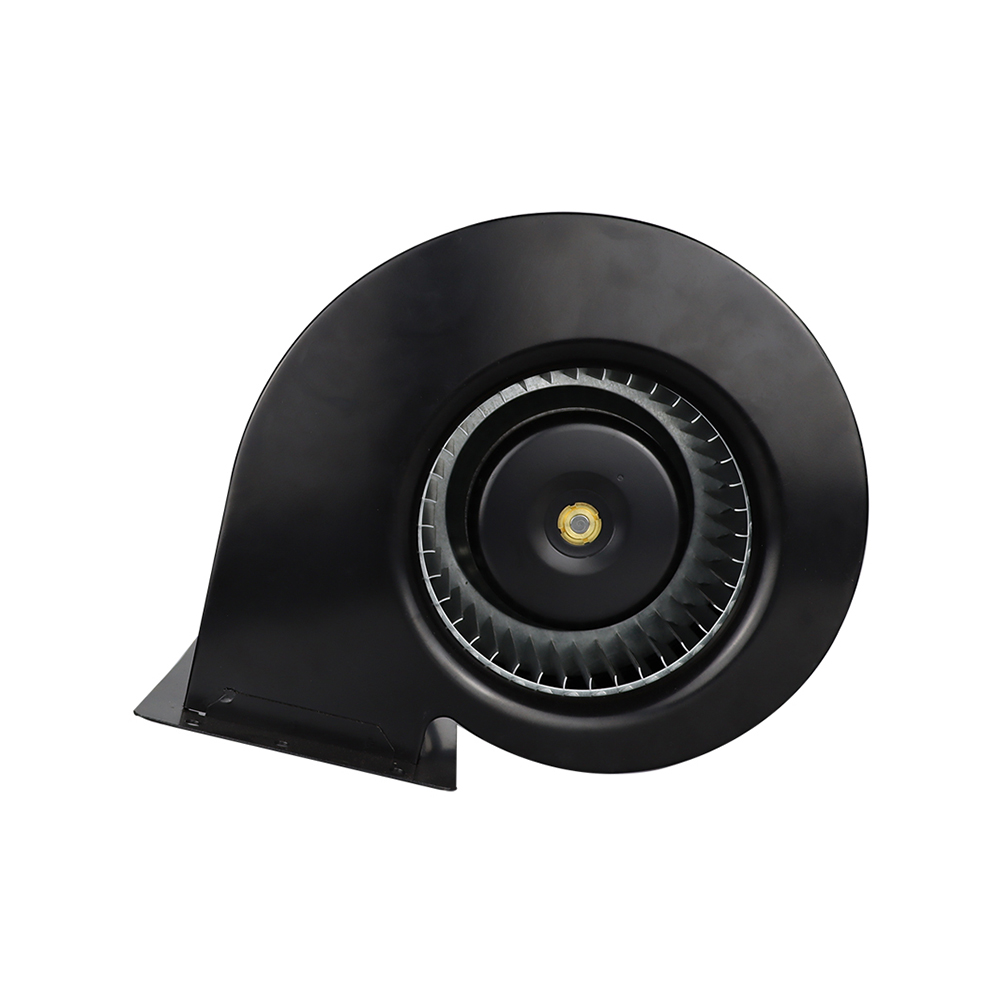

15092 DC Blower fan,Blower DC Ventilation fan 150*150*92mm
*Designed for Industrial projects that requires cooling or ventilation;
*High efficiency and low power consumption.
*Bearing Type: Hydraulic/Ball Bearing .
*Full Certification included CE/UL/TUV.
*Customizable Wire and Connectors.
Download
3D Model
SHARE:
Product details:

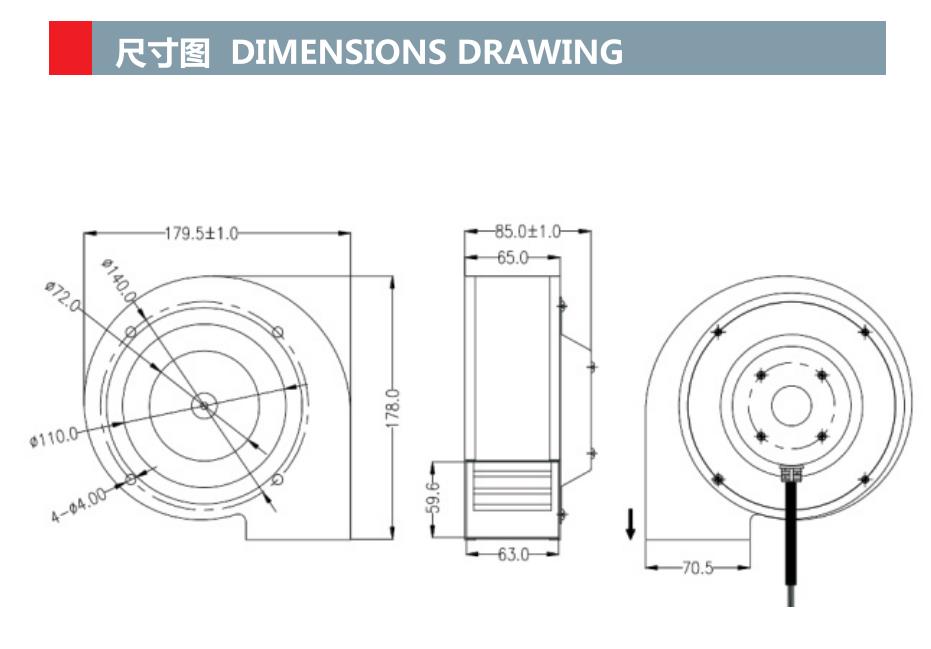

| Size: 150*150*92mm Series
| Voltage: DC 24V/48V
| Current:3.1-6.1Amp
| Speed: 2200rpm

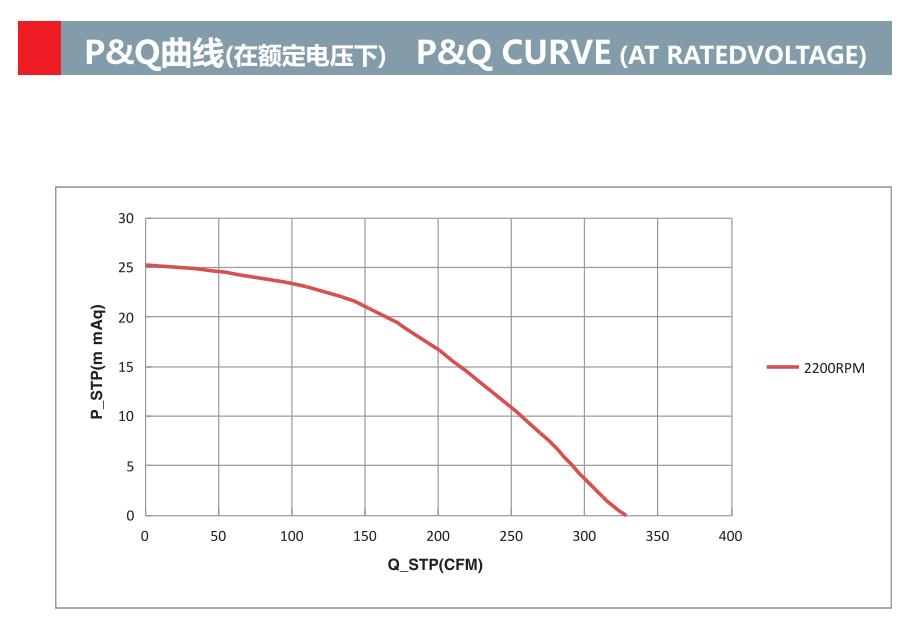

| Total Airflow: 328.1CFM
| Air Pressure: 25.3mmH2O
| Total Noise: 60dBA
| MODEL | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YY150H24 | 24 | 18to26.5 | 6.1 | 150 | 2200 | 557.8 | 328.1 | 25.3 | 0.99 | 60 | |
| YY150H48 | 48 | 36to54 | 3.1 | 150 | |||||||
