dc fan , Cooling fan , 24v fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

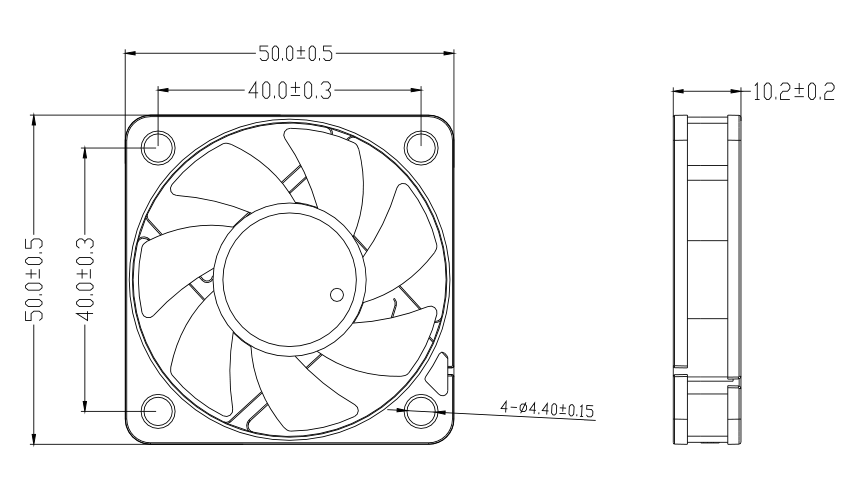

| Size: 50*50*10mm Series
| Voltage: DC 5V-24V
| Current: 0.03-0.12Amp
| Speed: 4000-6000rpm

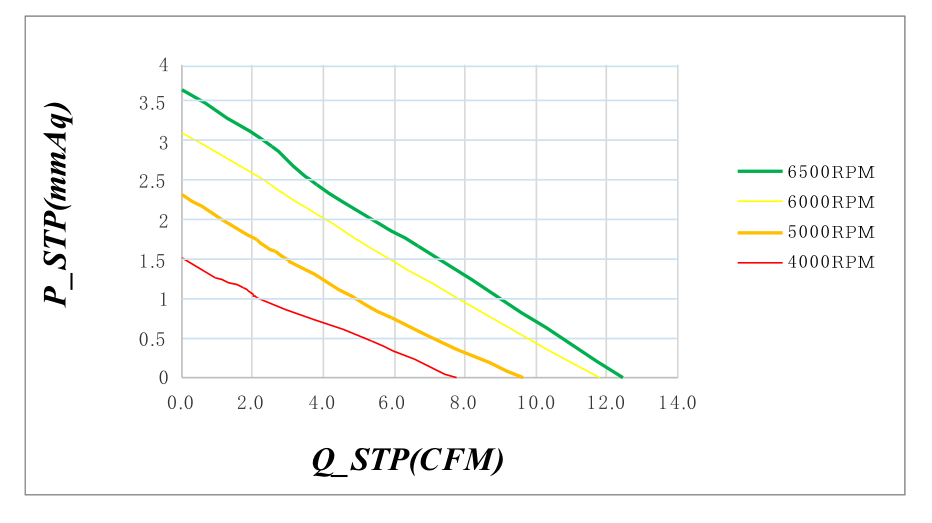

| Total Airflow:7.74-14.13CFM
| Air Pressure: 2.54-5.09mmH2O
| Total Noise: 25-36dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 50*50*10-L05 | 5 | 3.6to6.8 | 0.08 | 0.40 | 4000 | 0.22 | 7.74 | 2.54 | 0.06 | 25.0 |
| 50*50*10-L12 | 12 | 7.0to13.5 | 0.03 | 0.36 | ||||||
| 50*50*10-MO5 | 5 | 3.6to6.8 | 0.12 | 0.60 | 5000 | 0.27 | 9.66 | 3.2 | 0.09 | 30.0 |
| 50*50*10-M12 | 12 | 7.0to13.5 | 0.05 | 0.60 | ||||||
| 50*50*10-H05 | 5 | 3.6to6.8 | 0.15 | 0.75 | 6000 | 0.33 | 11.79 | 4.32 | 0.12 | 33.2 |
| 50*50*10-H12 | 12 | 7.0to13.5 | 0.06 | 0.72 | ||||||
| 50*50*10-H24 | 24 | 18to26.5 | 0.03 | 0.72 | ||||||
| 50*50*10-H12-HH | 12 | 7.0to13.5 | 0.08 | 0.96 | 6500 | 0.35 | 14.13 | 5.09 | 0.14 | 36.5 |
| 50*50*10-H24-HH | 24 | 18to26.5 | 0.04 | 0.96 | ||||||
