dc brushless fan , Cooling fan , 12v fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

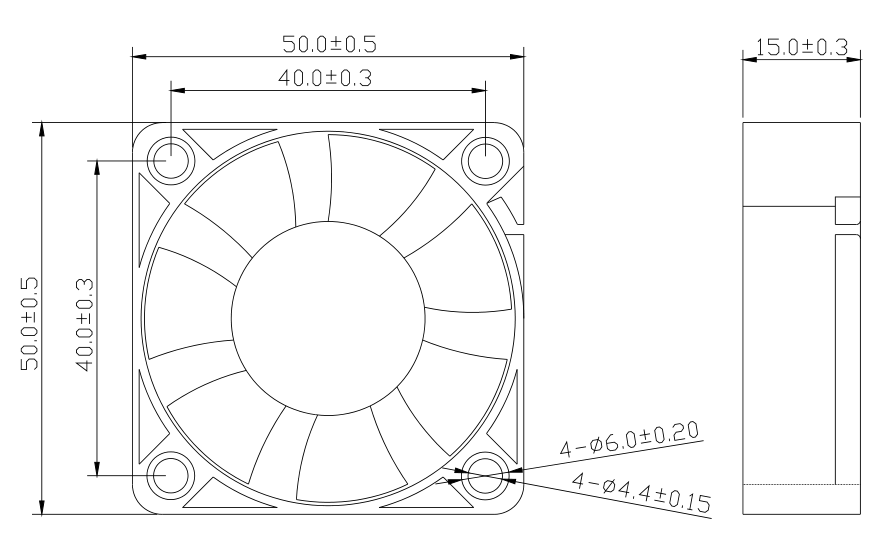

| Size: 50*50*15mm Series
| Voltage: DC 5V-24V
| Current: 0.05-0.26Amp
| Speed: 4300-7500rpm
| Total Airflow:10.64-18.68CFM

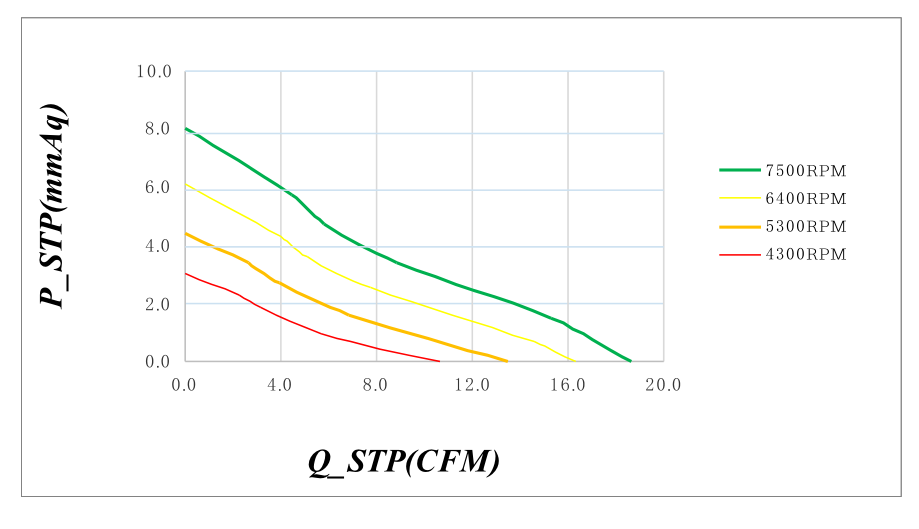

| Air Pressure: 3.02-8.03mmH2O
| Total Noise: 29-40dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 50*50*15-LO5 | 5 | 3.6to6.8 | 0.16 | 0.80 | 4300 | 0.30 | 10.64 | 3.02 | 0.12 | 29.3 |
| 50*50*15-L12 | 12 | 7.0to13.5 | 0.10 | 1.20 | ||||||
| 50*50*15-L24 | 24 | 18to26.5 | 0.05 | 1.20 | ||||||
| 50*50*15-M05 | 5 | 3.6to6.8 | 0.21 | 1.05 | 5300 | 0.38 | 13.53 | 4.41 | 0.17 | 35.2 |
| 50*50*15-M12 | 12 | 7.0to13.5 | 0.12 | 1.44 | ||||||
| 50*50*15-M24 | 24 | 18to26.5 | 0.08 | 1.92 | ||||||
| 50*50*15-H12 | 12 | 7.0to13.5 | 0.21 | 2.52 | 6400 | 0.46 | 16.33 | 6.10 | 0.24 | 39.5 |
| 50*50*15-H24 | 24 | 18to26.5 | 0.10 | 2.40 | ||||||
| 50*50*15-H12-HH | 12 | 7.Oto13.5 | 0.26 | 3.12 | 7500 | 0.53 | 18.68 | 8.03 | 0.32 | 44.5 |
| 50*50*15-H24-HH | 24 | 18to26.5 | 0.15 | 3.60 | ||||||
