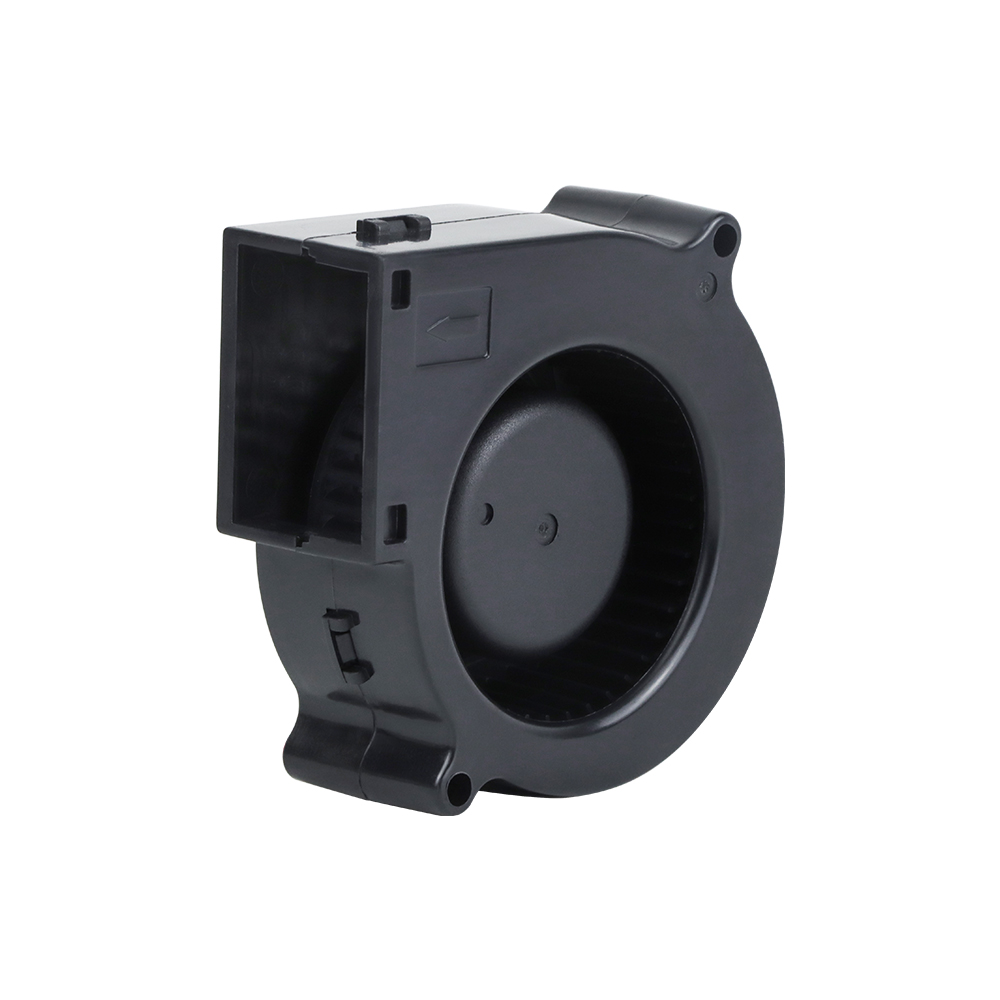

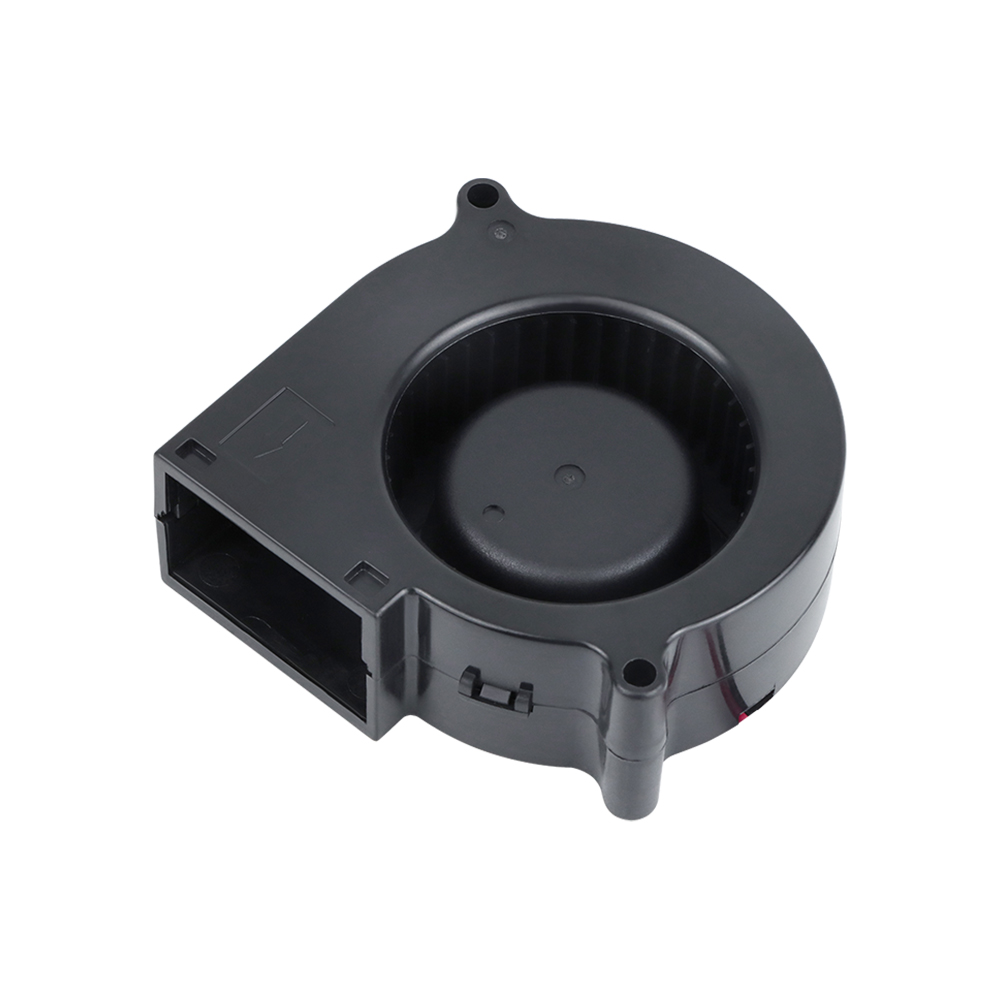

7530 DC Axial fan,Brushless blower DC fan 75*75*30mm
*Designed for projects that requires cooling or ventilation;
*High efficiency and low power consumption.
*Bearing Type: Hydraulic/Ball Bearing .
*Full Certification included CE/UL/TUV.
*Customizable Wire and Connectors.
Download
3D Model
SHARE:
Product details:

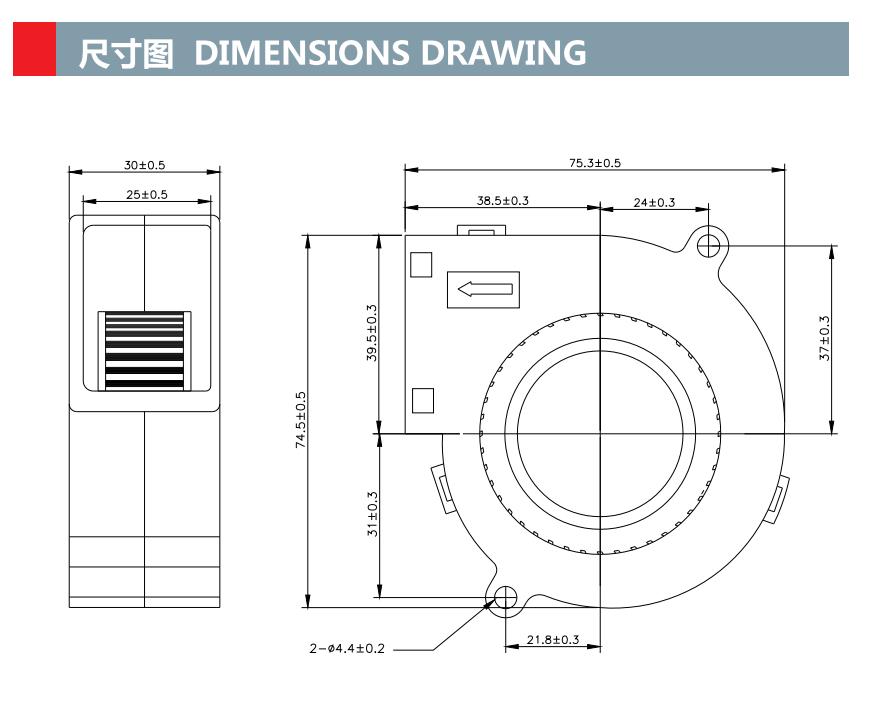

| Size: 75*75*30mm Series
| Voltage: DC 5V/12V/24V
| Current: 0.07-0.35Amp
| Speed: 2000-4000rpm
| Total Airflow: 5.17-9.52CFM
| Air Pressure: 6.86-12.95mmH2O
| Total Noise: 27.2-45.5dBA

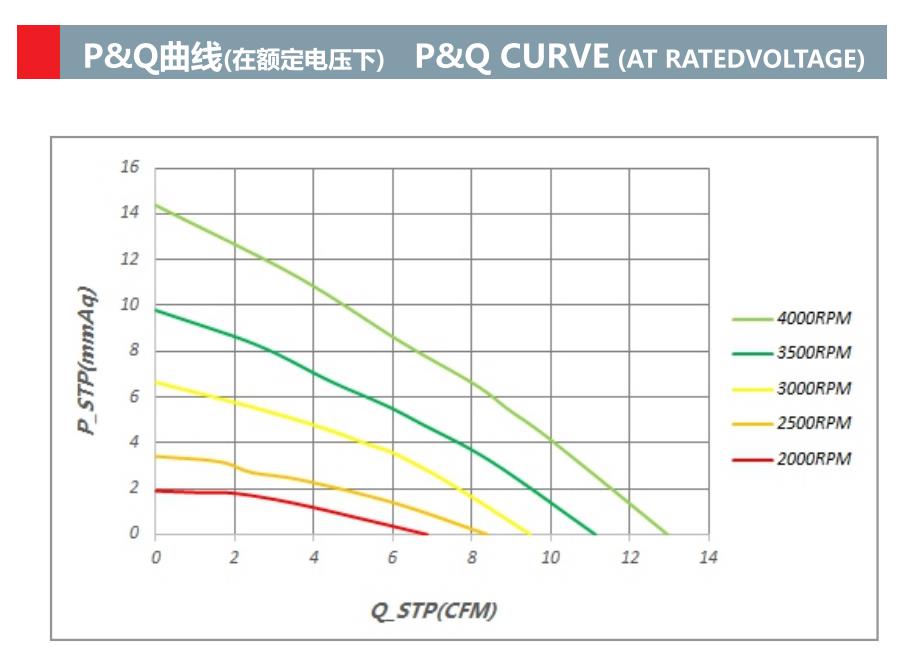

| MODEL | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YY7530L12 | 12 | 7.0to13.5 | 0.35 | 4.2 | 2000 | 0.19 | 6.86 | 1.9 | 0.07 | 27.2 | |
| YY7530L24 | 24 | 18to26.5 | 0.2 | 4.8 | |||||||
| YY7530L48 | 48 | 36to54 | 0.09 | 4.32 | |||||||
| YY7530M24 | 24 | 18to26.5 | 0.3 | 7.2 | 2500 | 0.24 | 8.38 | 3.41 | 0.13 | 33.6 | |
| YY7530M48 | 48 | 36to54 | 0.14 | 6.72 | |||||||
| YY7530H12 | 12 | 7.0to13.5 | 0.12 | 1.44 | 3000 | 0.27 | 9.48 | 6.65 | 0.26 | 38 | |
| YY7530H24 | 24 | 18to26.5 | 0.07 | 1.68 | |||||||
| YY7530H12-HH | 12 | 7.0to13.5 | 0.23 | 2.76 | 3500 | 0.31 | 11.12 | 9.79 | 0.39 | 41.3 | |
| YY7530H24-HH | 24 | 18to26.5 | 0.11 | 2.64 | |||||||
| YY7530H12-VH | 12 | 7.0to13.5 | 0.28 | 3.0 | 4000 | 0.37 | 12.95 | 14.37 | 0.57 | 45.5 | |
| YY7530H24-VH | 24 | 18to26.5 | 0.14 | 3.36 | |||||||
| YY7530H48-VH | 48 | 36to54 | 0.07 | 3.36 | |||||||
