4pin PWM DC Fan,DC Miner Fan,DC Fan,Axial flow fans,12V DC Fan
* Bearings: Ball /Sleeve/Fluid Bearing
* Long Lifespan Up to 70 000 hrs.
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

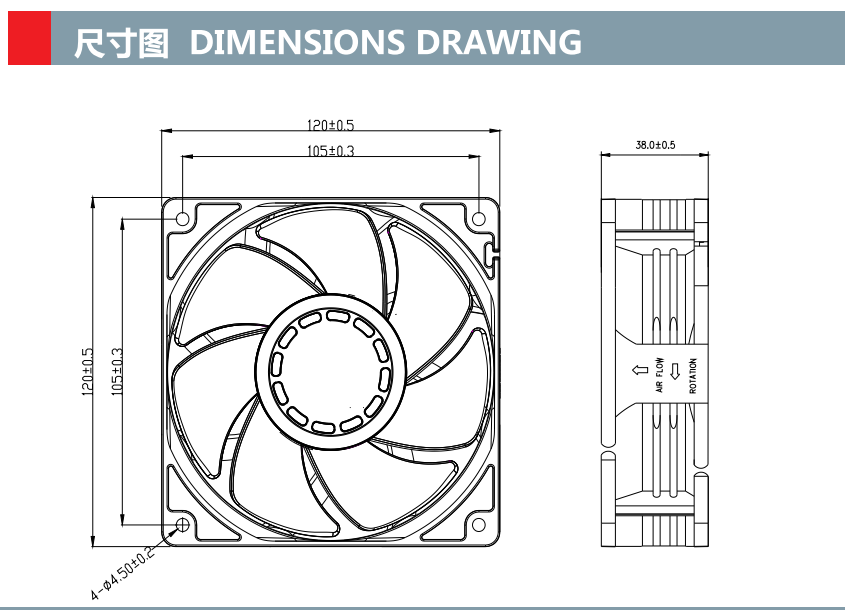

| Size: 120*120*38mm Series
| Voltage: DC 12-48V
| Current: 0.2-3.8Amp
| Speed: 4000-7000rpm
| Total Airflow: 144-246.2CFM

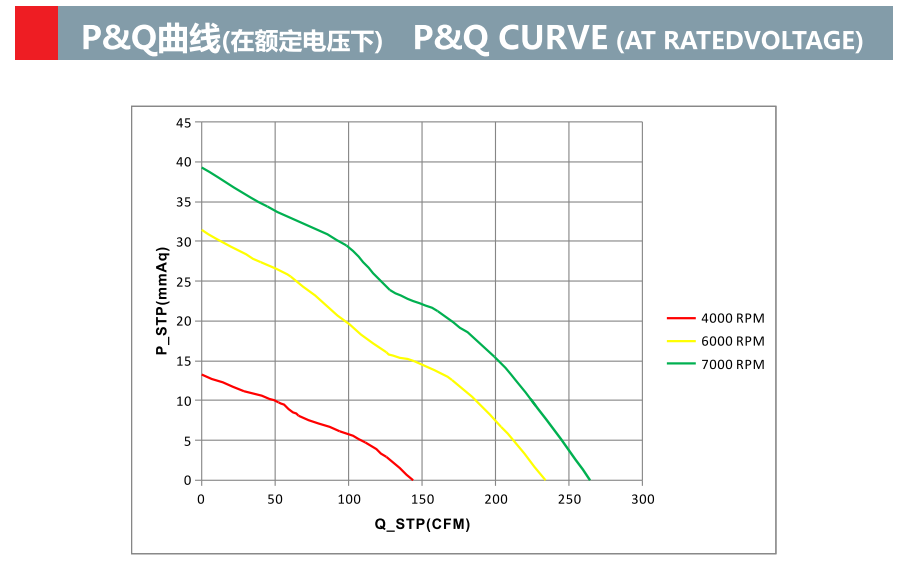

| Air Pressure: 13.5-39.3 mmH2O
| Total Noise: 54.2-69.5dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 120*120*38-L12 | 12 | 8.0to13.5 | 0.80 | 9.60 | 4000 | 4.08 | 144 | 13.5 | 0.53 | 54.2 |
| 120*120*38-L24 | 24 | 18to26.5 | 0.40 | 9.60 | ||||||
| 120*120*38-L48 | 48 | 36to54 | 0.20 | 9.60 | ||||||
| 120*120*38-M12 | 12 | 8.0to13.5 | 2.80 | 33.60 | 6000 | 6.63 | 234 | 31.4 | 1.24 | 62 |
| 120*120*38-M24 | 24 | 18to26.5 | 1.40 | 33.60 | ||||||
| 120*120*38-M48 | 48 | 36to54 | 0.70 | 33.60 | ||||||
| 120*120*38-H12 | 12 | 8.0to13.5 | 3.80 | 45.60 | 7000 | 6.97 | 246.2 | 39.4 | 1.55 | 69.5 |
| 120*120*38-H24 | 24 | 18to26.5 | 1.90 | 45.60 | ||||||
| 120*120*38-H48 | 48 | 36to54 | 1.00 | 48.00 | ||||||
