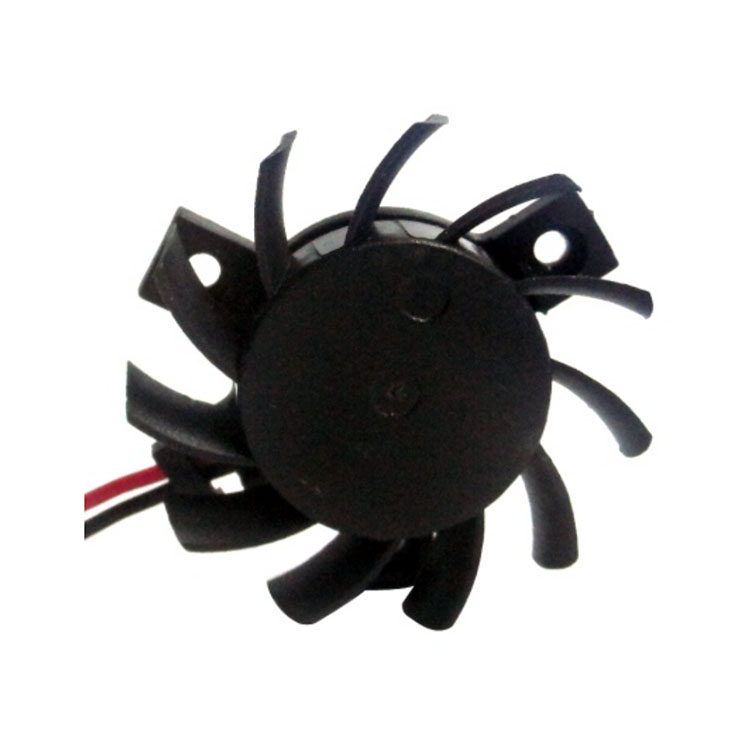

Frameless dc coolingfan , Brushless axial DC fan , Mini DC fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

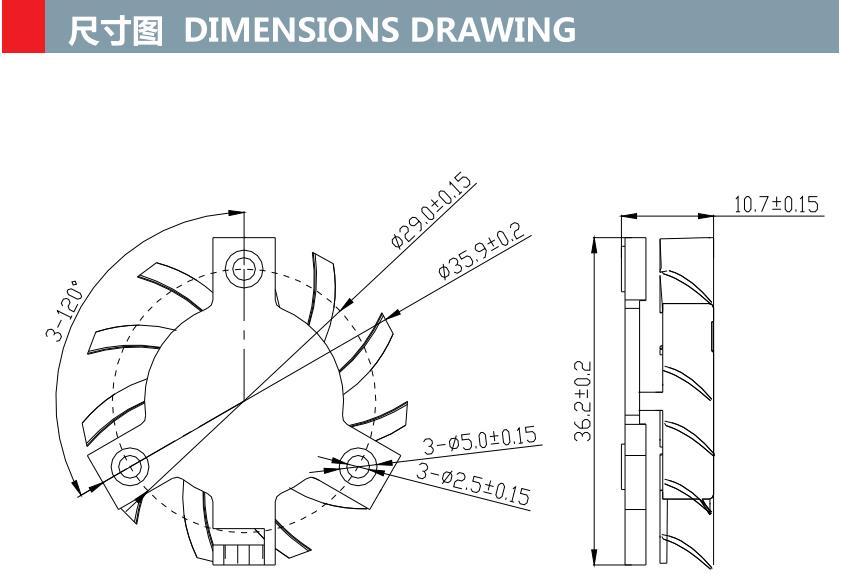

| Size: 40*40*10mm Series
| Voltage: DC 5V-24V
| Current: 0.02-0.45Amp
| Speed: 3000-6000rpm

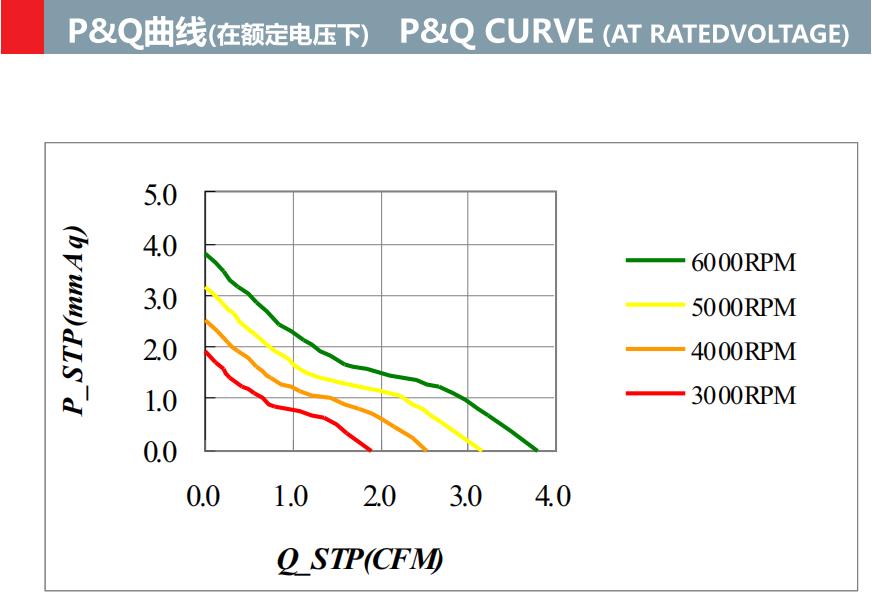

| Airflow: 1.9-3.8CFM
| Air Pressure: 1.92-3.84mmH2O
| Total Noise: 18-31dBA
| MODEL | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YY4010L05 | 5 | 3.6to6.8 | 0.07 | 0.35 | 3000 | 0.05 | 1.9 | 1.92 | 0.08 | 18 | |
| YY4010L12 | 12 | 7.0to13.5 | 0.03 | 0.36 | |||||||
| YY4010L24 | 24 | 18to26.5 | 0.05 | 0.48 | |||||||
| YY4010M05 | 5 | 3.6to6.8 | 0.15 | 0.75 | 4000 | 0.07 | 2.53 | 2.56 | 0.1 | 22 | |
| YY4010M12 | 12 | 7.0to13.5 | 0.06 | 0.72 | |||||||
| YY4010M24 | 24 | 18to26.5 | 0.03 | 0.72 | |||||||
| YY4010H05 | 5 | 3.6to6.8 | 0.25 | 1.25 | 5000 | 0.09 | 3.16 | 3.2 | 0.13 | 27 | |
| YY4010H12 | 12 | 7.0to13.5 | 0.1 | 1.2 | |||||||
| YY4010H24 | 24 | 18to26.5 | 0.05 | 1.20 | |||||||
| YY4010H05-HH | 5 | 3.6to6.8 | 0.45 | 2.25 | 6000 | 0.11 | 3.8 | 3.84 | 0.15 | 31 | |
| YY4010H12-HH | 12 | 7.0to13.5 | 0.18 | 2.16 | |||||||
| YY4010H24-HH | 24 | 18to26.5 | 0.09 | 2.16 | |||||||
