225mm 0~10V PWM plastc impeller AC backward centrifugal blower fan EC

225MM Centrifugal fan, centrifugal fan ,EC Backward centrifugal fan


| Size: 225mm Diameter

| Voltage: AC80-265V

| Current: 50/60Hz

| Speed: 2500/2800rpm

| Total Airflow: 636.9/703.7CFM

| Air Pressure: 42.6/54.5 mmH2O

| Total Noise: 73/74.5dBA


Send Inquiry Download 3D Model

SHARE:

Product Details

Product details:

 * Bearings: Ball Bearing

 * Premium Plastic material(UL 94V-0)

 * 0-10V/PWM Stepless-speed control constantly variable speed.

 * Brushless DC external Rotor Motor, Motor Protection Type: IP44/IP54

 * Special Rotor Opening Design,Tecch output, Locked-rotor protection,Over voltage protection, over-currect protection, solf start protection.

 * Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB),Speed control mode(PWM/TC/VC/CC/CS).

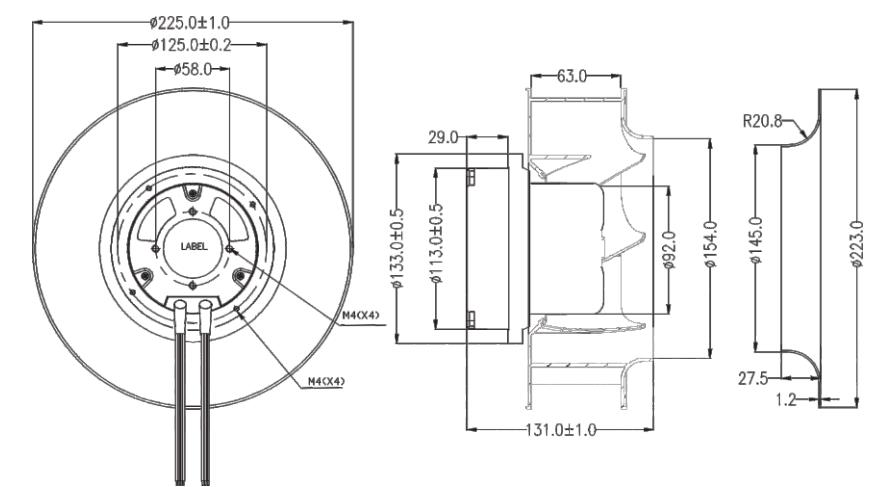

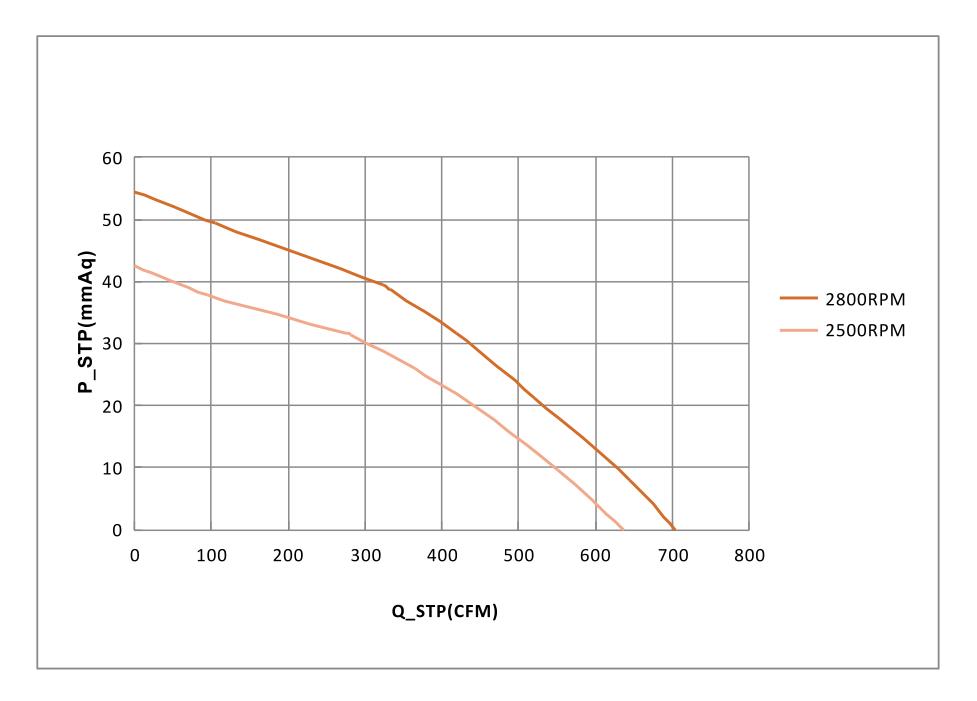

225mm 0~10V PWM plastc impeller AC backward centrifugal blower fan EC(图1)225mm 0~10V PWM plastc impeller AC backward centrifugal blower fan EC(图2)

Compare With Similar Items

SizeRated VoltageOperating Voltage RangeFrequencyRated Input PowerSpeedMaximum Air FlowMaximum Air PressureNoise

VACVACHzWattR.P.MCMHCFMmmH2OINH2ODB-A
Φ225-H11011080to13550/6012025001083636.942.61.6873.8
Φ225-H220220180to26550/60120
Φ225-H11011080to13550/6015028001196.3703.754.52.1574.5
Φ225-H220220180to26550/60150
