120mm DC Fan,DC Axial Fan,DC Fan PWM,Axial flow DC fans
* Bearings: Ball /Sleeve/Fluid Bearing
* Long Lifespan Up to 70 000 hrs.
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

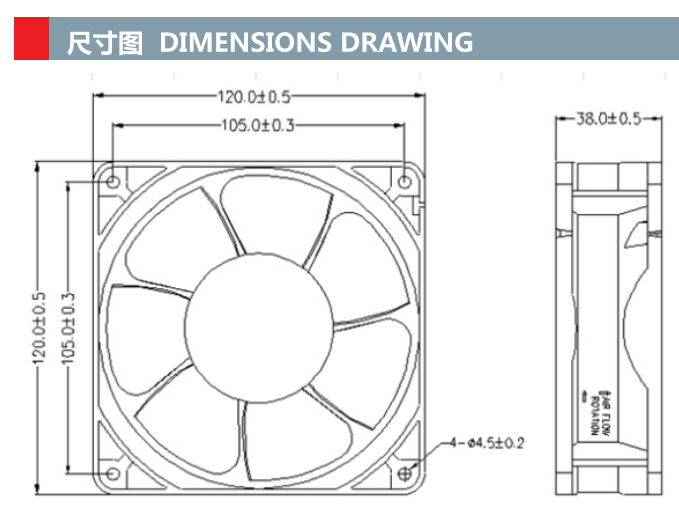

| Size: 120*120*38mm Series
| Voltage: DC 5V-48V
| Current: 0.12-4Amp
| Speed: 1500-6500rpm

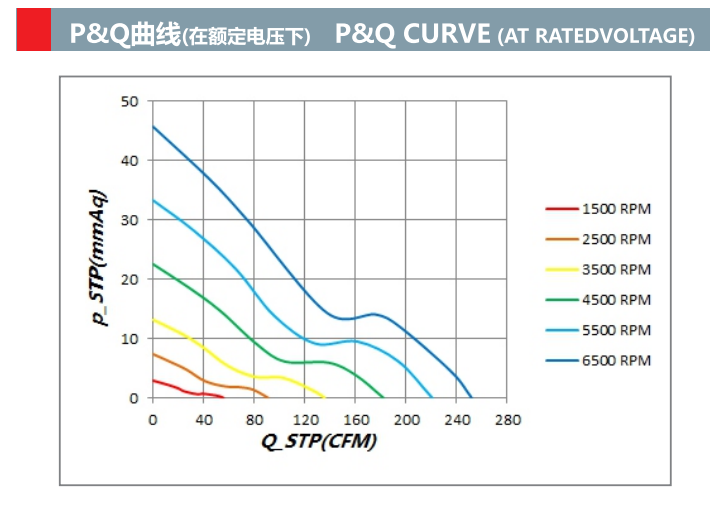

| Total Airflow: 55.61-252.02CFM
| Air Pressure: 2.9-45.7 mmH2O
| Total Noise: 31-67.2dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 120*120*38-LO5 | 5 | 4.0to6.8 | 0.80 | 4.00 | 1500 | 1.57 | 55.61 | 2.9 | 0.11 | 31 |
| 120*120*38-L12 | 12 | 8.Oto13.5 | 0.32 | 3.84 | ||||||
| 120*120*38-L24 | 24 | 18to26.5 | 0.15 | 3.60 | ||||||
| 120*120*38-M12 | 12 | 8.Oto13.5 | 0.50 | 6.00 | 2500 | 2.58 | 90.99 | 7.36 | 0.29 | 42.6 |
| 120*120*38-M24 | 24 | 18to26.5 | 0.25 | 6.00 | ||||||
| 120*120*38-M48 | 48 | 36to54 | 0.12 | 5.76 | ||||||
| 120*120*38-H12 | 12 | 8.0to13.5 | 0.85 | 10.20 | 3500 | 3.84 | 135.71 | 13.16 | 0.52 | 54.5 |
| 120*120*38-H24 | 24 | 18to26.5 | 0.41 | 9.84 | ||||||
| 120*120*38-H48 | 48 | 36to54 | 0.20 | 9.60 | ||||||
| 120*120*38-H12-HH | 12 | 8.0to13.5 | 1.50 | 18.00 | 4500 | 5.16 | 182.2 | 22.52 | 0.89 | 58.8 |
| 120*120*38-H24-HH | 24 | 18to26.5 | 0.70 | 16.80 | ||||||
| 120*120*38-H48-HH | 48 | 36to54 | 0.35 | 16.80 | ||||||
| 120*120*38-H12-VH | 12 | 8.0o13.5 | 2.40 | 28.80 | 5500 | 6.25 | 220.84 | 33.29 | 1.31 | 63.1 |
| 120*120*38-H24-VH | 24 | 18to26.5 | 1.15 | 27.60 | ||||||
| 120*120*38-H48-VH | 48 | 36to54 | 0.60 | 28.80 | ||||||
| 120*120*38-H12-SH | 12 | 8.0to13.5 | 4.00 | 48.00 | 6500 | 7.14 | 252.02 | 45.7 | 1.80 | 67.2 |
| 120*120*38-H24-SH | 24 | 18to26.5 | 2.00 | 48.00 | ||||||
| 120*120*38-H48-SH | 48 | 36to54 | 1.00 | 48.00 | ||||||
