DC Blower fan, DC Blower,long life dc blower fan
**Premium materials great for extra cooling, ventilation.high temperature resistant and extremely durable.
**Widely use for humidifier, aromatherapy,Car ventilation,Printer and other small appliances series.. Etc.
**MOTOR PROTECTION: Impedance Protected / Reverse Polarity Protected.
**High efficiency and low power consumption
**Bearing Type: Hydraulic/Sleeve/Ball Bearing
**Full Certification included CE/UL/TUV.
Download
3D Model
SHARE:
Product details:

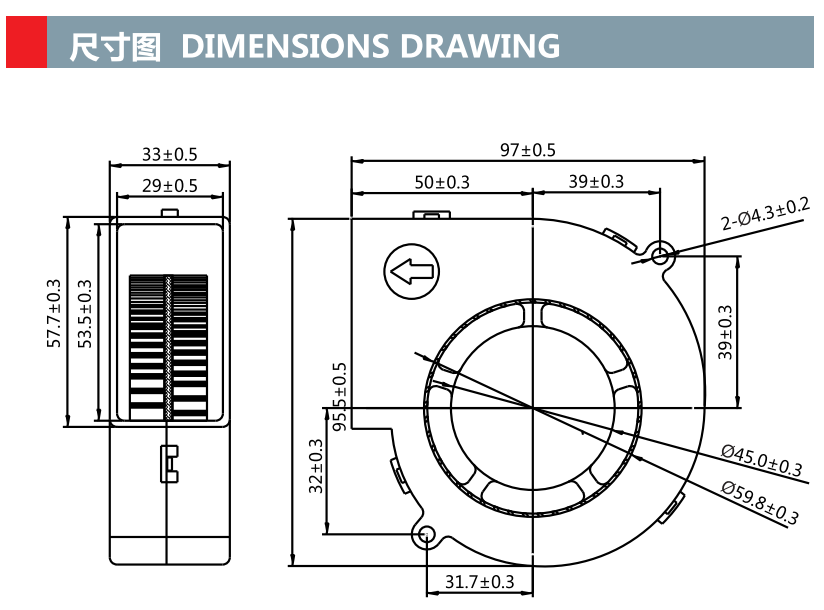

| Size: 97*97*33mm Series
| Voltage: DC 12V-24V
| Current: 0.18-1Amp
| Speed: 3000-5000rpm
| Total Airflow: 17.98-25.06CFM
| Air Pressure: 8.72-28.37 mmH2O
| Total Noise: 44.8-56.2dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 97*97*33-L12 | 12 | 7.0to13.5 | 0.35 | 4.2 | 3000 | 0.51 | 17.98 | 8.72 | 0.34 | 44.8 |
| 97*97*33-L24 | 24 | 18to26.5 | 0.18 | 4.32 | ||||||
| 97*97*33-M12 | 12 | 7.0to13.5 | 0.54 | 6.48 | 4000 | 0.56 | 19.94 | 17.07 | 0.67 | 51 |
| 97*97*33-M24 | 24 | 18to26.5 | 0.32 | 7.68 | ||||||
| 97*97*33-H12 | 12 | 7.0to13.5 | 1 | 12 | 5000 | 0.71 | 25.06 | 28.37 | 1.12 | 56.2 |
| 97*97*33-H24 | 24 | 18to26.5 | 0.5 | 12 | ||||||
