DC Air blower fan, DC Blower fan,High speed dc blower fan
**Premium materials great for extra cooling, ventilation.high temperature resistant and extremely durable.
**Widely use for humidifier, aromatherapy,Car ventilation,Printer and other small appliances series.. Etc.
**MOTOR PROTECTION: Impedance Protected / Reverse Polarity Protected.
**High efficiency and low power consumption
**Bearing Type: Hydraulic/Sleeve/Ball Bearing
**Full Certification included CE/UL/TUV.
Download
3D Model
SHARE:
Product details:

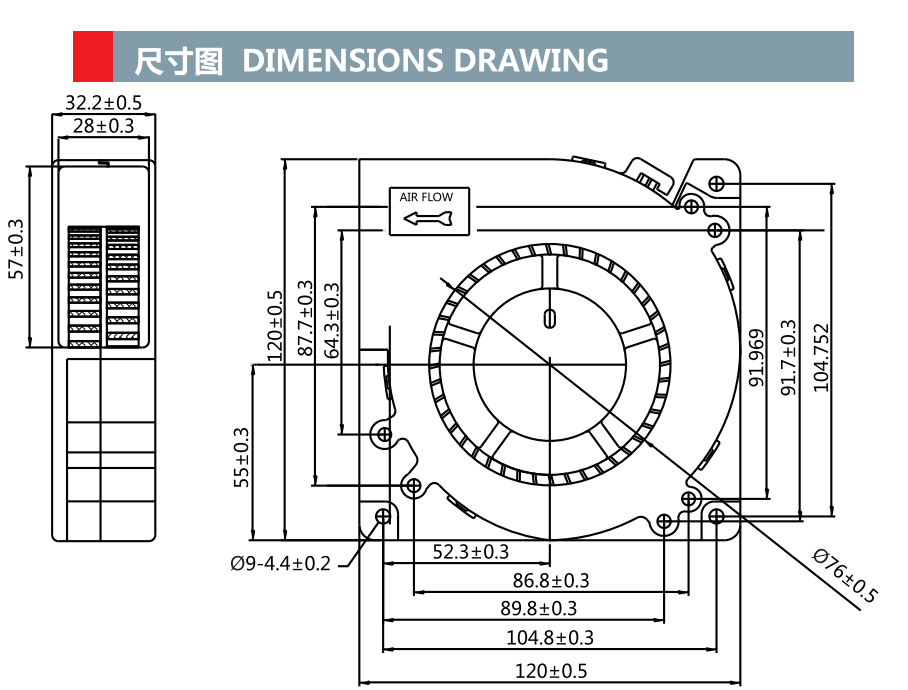

| Size: 120*120*32mm Series
| Voltage: DC 12V-48V
| Current: 0.26-1.46Amp
| Speed: 2000-3300rpm

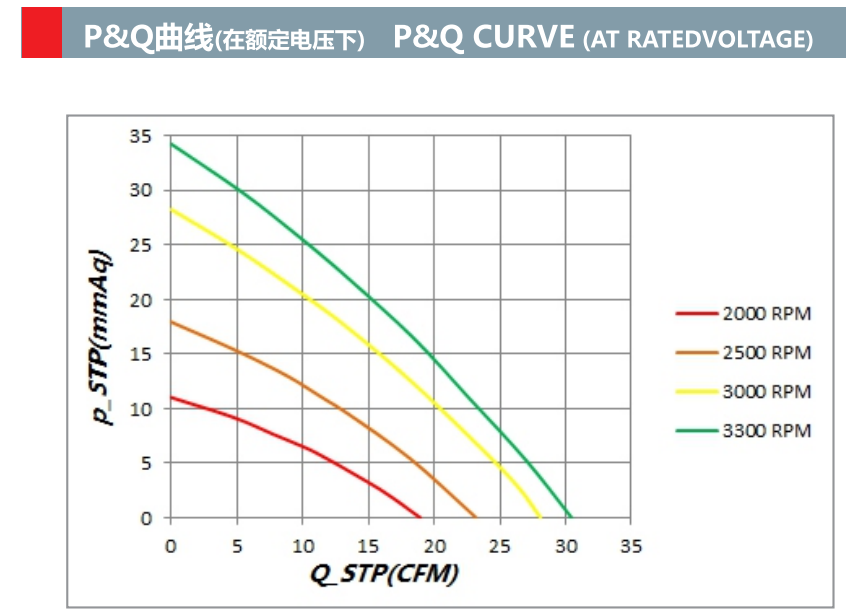

| Total Airflow: 18.94-30.45CFM
| Air Pressure: 11.03-34.27 mmH2O
| Total Noise: 44.6-56dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 120*120*32-L12 | 12 | 8.0to13.5 | 0.52 | 6.24 | 2000 | 0.54 | 18.94 | 11.03 | 0.43 | 44.6 |
| 120*120*32-L24 | 24 | 18to26.5 | 0.26 | 6.24 | ||||||
| 120*120*32-M12 | 12 | 8.0to13.5 | 0.6 | 7.2 | 2500 | 0.66 | 23.19 | 17.95 | 0.71 | 50.3 |
| 120*120*32-M24 | 24 | 18to26.5 | 0.29 | 6.96 | ||||||
| 120*120*32-H12 | 12 | 8.0to13.5 | 1 | 12 | 3000 | 0.80 | 28.09 | 28.27 | 1.11 | 54.6 |
| 120*120*32-H24 | 24 | 18to26.5 | 0.6 | 12 | ||||||
| 120*120*32-H48 | 48 | 36to54 | 0.3 | 14.4 | ||||||
| 120*120*32-H12-HH | 12 | 8.0to13.5 | 1.46 | 17.52 | 3300 | 0.86 | 30.45 | 34.27 | 1.35 | 56 |
| 120*120*32-H24-HH | 24 | 18to26.5 | 0.75 | 18 | ||||||
| 120*120*32-H48-HH | 48 | 36to54 | 0.4 | 19.2 | ||||||
