dc brushless fan , Cooling fan , 24v fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

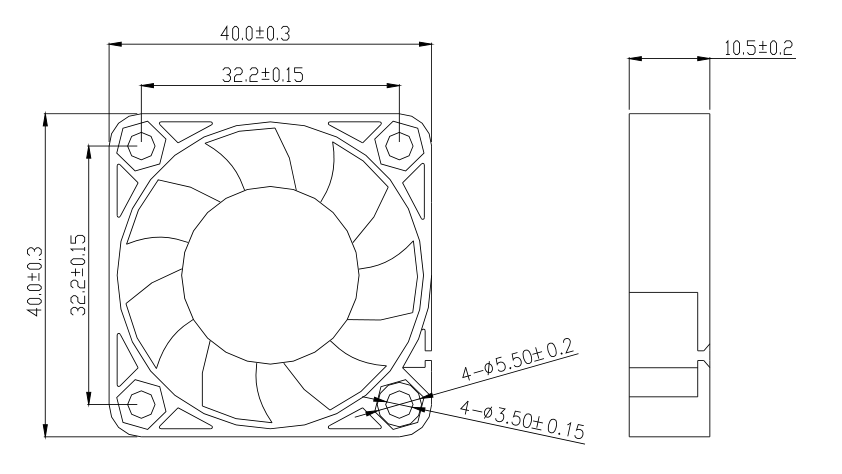

| Size: 40*40*10mm Series
| Voltage: DC 5V-24V
| Current: 0.08-2.28Amp
| Speed: 5500-8000rpm

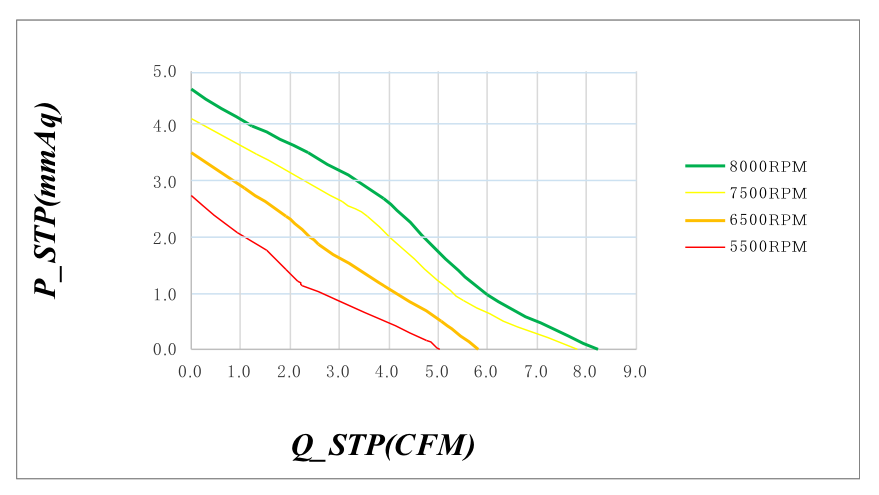

| Total Airflow:5.97-8.3CFM
| Air Pressure: 2.48-4.66mmH2O
| Total Noise: 28-39dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 40*40*10-L05 | YY4010L05 | 4.3to5.4 | 0.11 | 0.80 | 5500 | 0.17 | 5.97 | 2.48 | 0.10 | 28.5 |
| 40*40*10-L12 | YY4010L12 | 7.0to13.5 | 0.08 | 0.96 | ||||||
| 40*40*10-M05 | YY4010M05 | 4.3to5.4 | 0.20 | 1.00 | 6500 | 0.19 | 6.78 | 3.12 | 0.12 | 34.0 |
| 40*40*10-M12 | YY4010M12 | 7.0to13.5 | 0.11 | 1.20 | ||||||
| 40*40*10-H05 | YY4010H05 | 4.3to5.4 | 0.15 | 1.80 | 7500 | 0.22 | 7.80 | 4.13 | 0.16 | 37.5 |
| 40*40*10-H12 | YY4010H12 | 7.0to13.5 | 0.08 | 1.92 | ||||||
| 40*40*10-HO5-HH | YY4010HO5-HH | 4.3to5.4 | 0.19 | 2.28 | 8000 | 0.23 | 8.23 | 4.66 | 0.18 | 39.6 |
| 40*40*10-H12-HH | YY4010H12-HH | 7.0to13.5 | 0.09 | 2.16 | ||||||
