dc brushless fan , Cooling fan , 24v fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

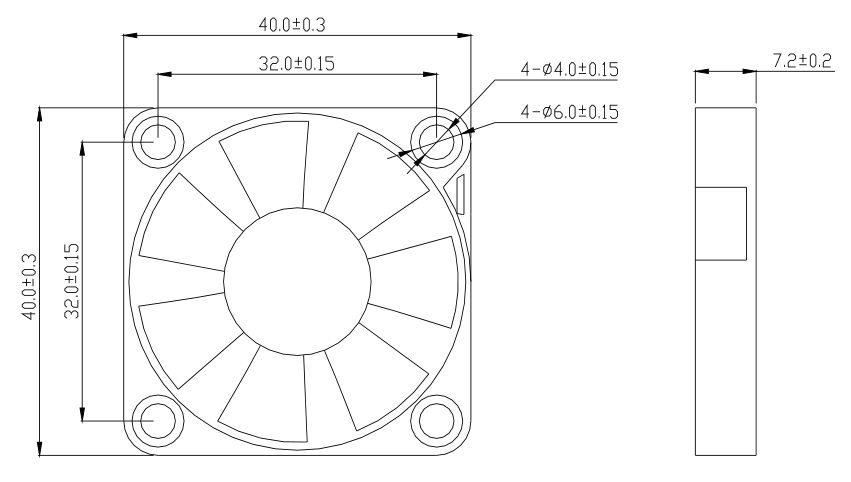

| Size: 40*40*7mm Series
| Voltage: DC 5V-24V
| Current: 0.07-0.25Amp
| Speed: 4500-8000rpm
| Total Airflow:2.58-4.72CFM
| Air Pressure: 1.1-3.04mmH2O
| Total Noise: 24-35dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 40*40*07-LO5 | 5 | 4.3to5.4 | 0.12 | 0.60 | 4500 | 0.07 | 2.58 | 1.10 | 0.04 | 24.0 |
| 40*40*07-L12 | 12 | 7.0to13.5 | 0.05 | 0.60 | ||||||
| 40*40*07-M05 | 5 | 4.3to5.4 | 0.18 | 0.90 | 6000 | 0.11 | 3.84 | 2.08 | 0.08 | 30.0 |
| 40*40*07-M12 | 12 | 7.Oto13.5 | 0.07 | 0.84 | ||||||
| 40*40*07-H05 | 5 | 4.3to5.4 | 0.22 | 1.10 | 7000 | 0.12 | 4.24 | 2.16 | 0.09 | 33.0 |
| 40*40*07-H12 | 12 | 7.0to13.5 | 0.09 | 1.08 | ||||||
| 40*40*07-H05-HH | 5 | 4.3to5.4 | 0.25 | 1.25 | 8000 | 0.13 | 4.72 | 3.04 | 0.12 | 35.0 |
| 40*40*07-H12-HH | 12 | 7.0to13.5 | 0.10 | 1.20 | ||||||
Link: Rubber 3D print
