Axial cooling fan supplier,Industrial DC fan,DC Cooling fan,DC Cooling fan manufacturers
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

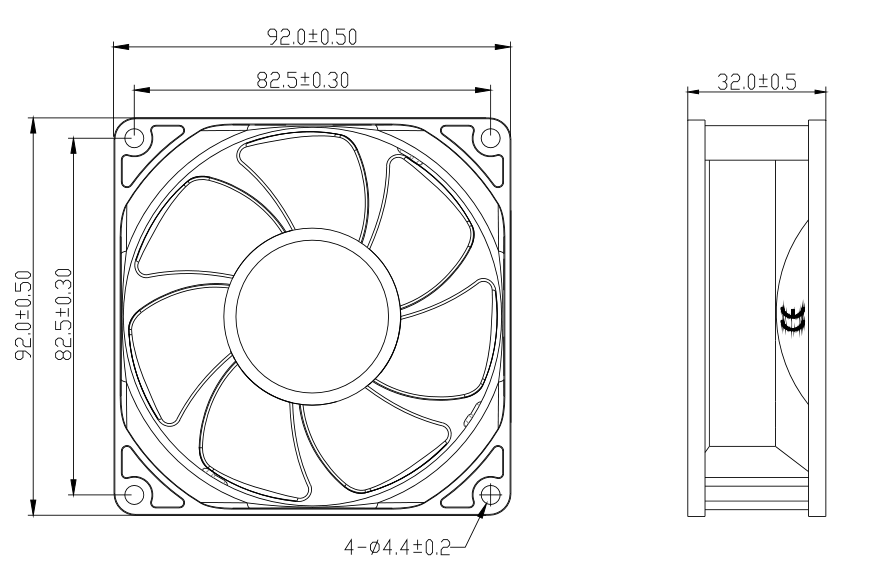

| Size: 92*92*32mm Series
| Voltage: DC 12V-48V
| Current: 0.11-0.98Amp
| Speed: 3000-5000rpm
| Total Airflow: 61.47-101.93CFM

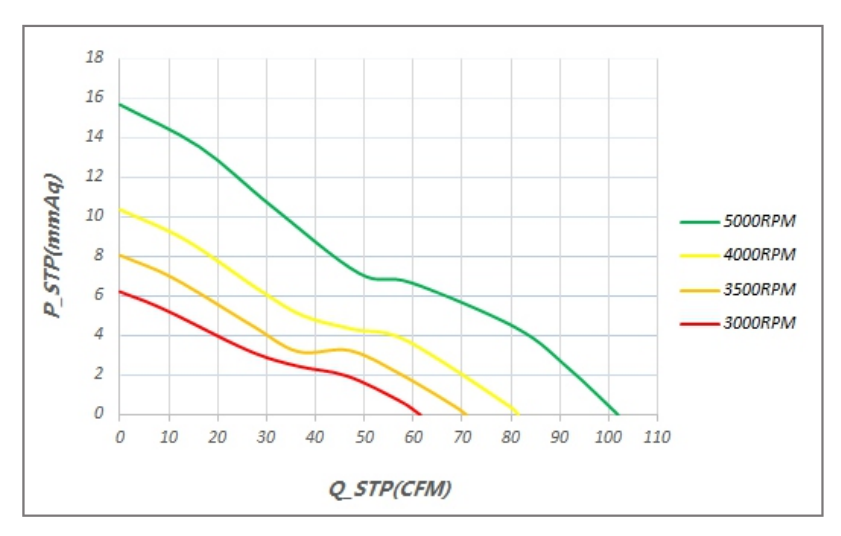

| Air Pressure: 6.21-15.66 mmH2O
| Total Noise: 36-51.6dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 92*92*32-L12 | 12 | 8.0to13.5 | 0.35 | 4.2 | 3000 | 1.74 | 61.47 | 6.21 | 0.24 | 36 |
| 92*92*32-L24 | 24 | 18to26.5 | 0.18 | 4.32 | ||||||
| 92*92*32-L48 | 48 | 36to54 | 0.11 | 5.28 | ||||||
| 92*92*32-M12 | 12 | 8.0to13.5 | 0.49 | 5.88 | 3500 | 2.01 | 70.89 | 8.05 | 0.32 | 41.8 |
| 92*92*32-M24 | 24 | 18to26.5 | 0.25 | 6 | ||||||
| 92*92*32-M48 | 48 | 36to54 | 0.13 | 6.24 | ||||||
| 92*92*32-H12 | 12 | 8.0to13.5 | 0.68 | 8.16 | 4000 | 2.31 | 81.51 | 10.36 | 0.41 | 46.2 |
| 92*92*32-H24 | 24 | 18to26.5 | 0.37 | 8.88 | ||||||
| 92*92*32-H48 | 48 | 36to54 | 0.18 | 8.64 | ||||||
| 92*92*32-H12-HH | 12 | 8.0to13.5 | 0.98 | 11.76 | 5000 | 2.89 | 101.93 | 15.66 | 0.62 | 51.6 |
| 92*92*32-H24-HH | 24 | 18to26.5 | 0.49 | 11.76 | ||||||
| 92*92*32-H48-HH | 48 | 36to54 | 0.25 | 12 | ||||||
