DC Fan,Industrial DC fan,DC Cooling fan,92mm DC Axial Fan
* Bearings: Ball /Sleeve/Fluid Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

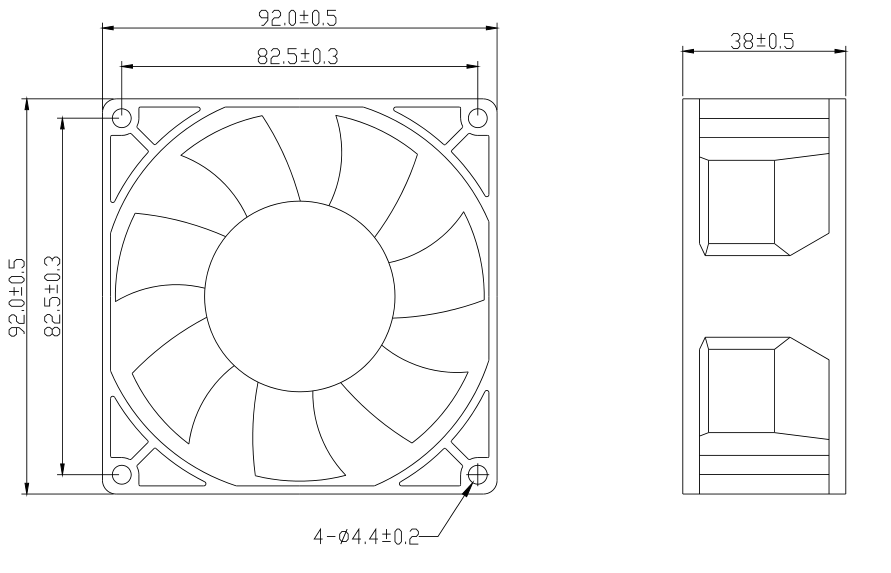

| Size: 92*92*38mm-1 Series
| Voltage: DC 12V-48V
| Current: 0.1-1.8Amp
| Speed: 3500-6500rpm

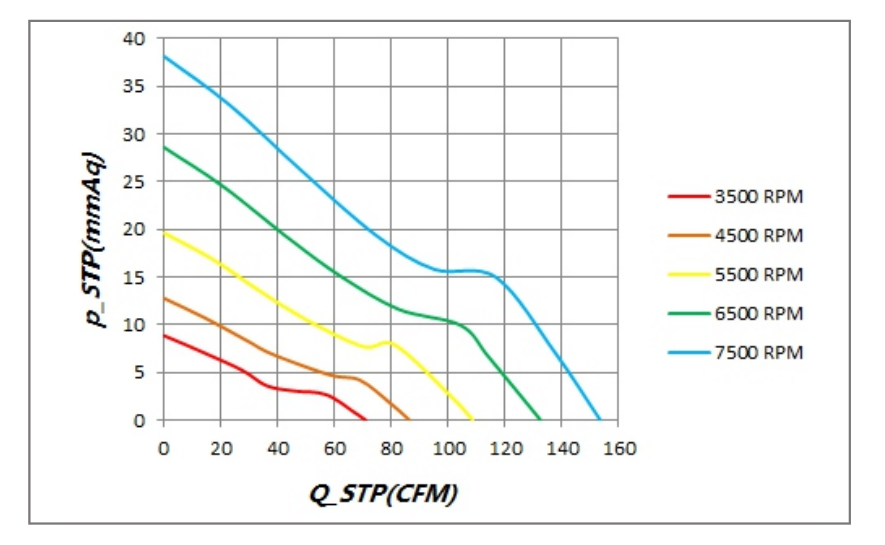

| Total Airflow: 70.99-132.58CFM
| Air Pressure: 8.84-28.58 mmH2O
| Total Noise: 48-63.56dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 92*92*38-L12 | 12 | 8.0to13.5 | 0.28 | 3.36 | 3500 | 2.01 | 70.99 | 8.84 | 0.35 | 48 |
| 92*92*38-L24 | 24 | 18to26.5 | 0.23 | 5.52 | ||||||
| 92*92*38-L48 | 48 | 36to54 | 0.1 | 4.8 | ||||||
| 92*92*38-M12 | 12 | 8.0to13.5 | 0.72 | 8.64 | 4500 | 2.45 | 86.38 | 12.76 | 0.50 | 56 |
| 92*92*38-M24 | 24 | 18to26.5 | 0.41 | 9.84 | ||||||
| 92*92*38-M48 | 48 | 36to54 | 0.15 | 7.2 | ||||||
| 92*92*38-H12 | 12 | 8.0to13.5 | 1 | 12 | 5500 | 3.08 | 108.68 | 19.61 | 0.77 | 59.6 |
| 92*92*38-H24 | 24 | 18to26.5 | 0.52 | 12.48 | ||||||
| 92*92*38-H48 | 48 | 36to54 | 0.25 | 12 | ||||||
| 92*92*38-H12-HH | 12 | 8.0to13.5 | 1.8 | 21.6 | 6500 | 3.75 | 132.58 | 28.58 | 1.13 | 63.6 |
| 92*92*38-H24-HH | 24 | 18to26.5 | 0.88 | 21.12 | ||||||
| 92*92*38-H48-HH | 48 | 36to54 | 0.41 | 19.68 | ||||||
