9238 DC Fan,Industrial DC Cooling fan,DC Cooling fan,92mm DC Axial Fan
* Bearings: Ball /Sleeve/Fluid Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

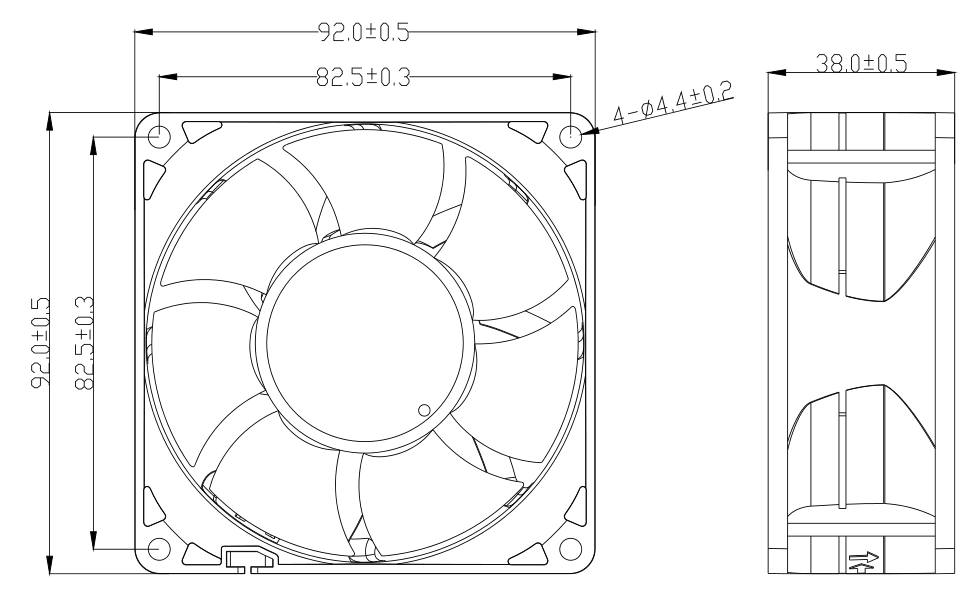

| Size: 92*92*38mm-2 Series
| Voltage: DC 12V-48V
| Current: 0.05-2.5Amp
| Speed: 3000-8000rpm
| Total Airflow: 59.87-166.69CFM
| Air Pressure: 6.37-36.79 mmH2O
| Total Noise: 39-65.5dBA

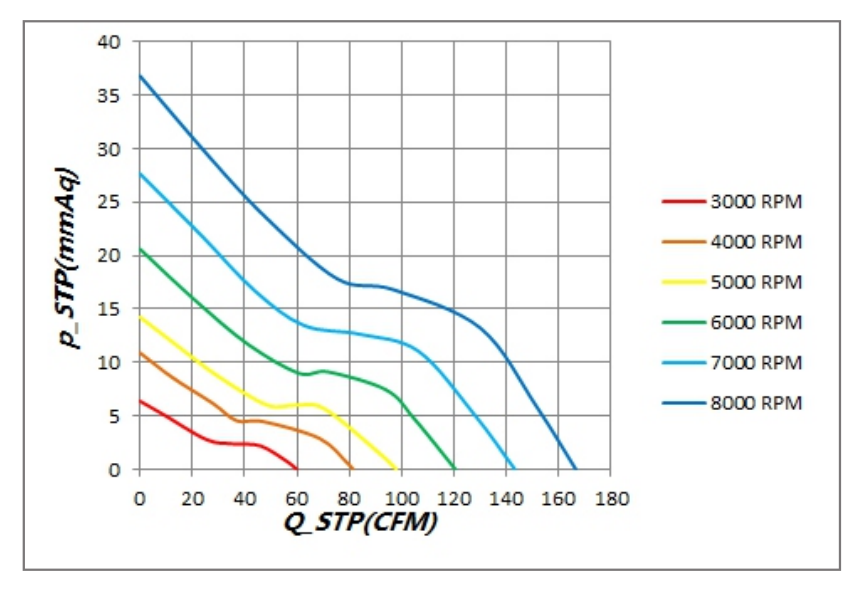

| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 92*92*38-L12 | 12 | 8.0to13.5 | 0.2 | 2.4 | 3000 | 1.70 | 59.87 | 6.37 | 0.25 | 39 |
| 92*92*38-L24 | 24 | 18to26.5 | 0.1 | 2.4 | ||||||
| 92*92*38-L48 | 48 | 36to54 | 0.05 | 2.52 | ||||||
| 92*92*38-M12 | 12 | 8.0to13.5 | 0.34 | 4.08 | 4000 | 2.31 | 81.47 | 10.89 | 0.43 | 46 |
| 92*92*38-M24 | 24 | 18to26.5 | 0.16 | 3.84 | ||||||
| 92*92*38-M48 | 48 | 36to54 | 0.08 | 3.84 | ||||||
| 92*92*38-H12 | 12 | 8.0to13.5 | 0.82 | 9.84 | 5000 | 2.78 | 98.02 | 14.24 | 0.56 | 51.3 |
| 92*92*38-H24 | 24 | 18to26.5 | 0.4 | 9.6 | ||||||
| 92*92*38-H48 | 48 | 36to54 | 0.19 | 9.12 | ||||||
| 92*92*38-H12 | 12 | 8.0to13.5 | 1.01 | 12.12 | 6000 | 3.41 | 120.58 | 20.6 | 0.81 | 58.3 |
| 92*92*38-H24 | 24 | 18to26.5 | 0.48 | 11.52 | ||||||
| 92*92*38-H48 | 48 | 36to54 | 0.23 | 11.04 | ||||||
| 92*92*38-H12-HH | 12 | 8.0to13.5 | 1.27 | 15.24 | 7000 | 4.06 | 143.39 | 27.65 | 1.09 | 62.1 |
| 92*92*38-H24-HH | 24 | 18to26.5 | 0.6 | 14.4 | ||||||
| 92*92*38-H48-HH | 48 | 36to54 | 0.3 | 14.4 | ||||||
| 92*92*38-H12-VH | 12 | 8.0to13.5 | 2.5 | 30 | 8000 | 4.72 | 166.69 | 36.79 | 1.45 | 65.5 |
| 92*92*38-H24-VH | 24 | 18to26.5 | 1.5 | 36 | ||||||
| 92*92*38-H48-VH | 48 | 36to54 | 0.6 | 28.8 | ||||||
