Industrial Axial Cooling Fan,IMicro DC Cooling Fan,DC Cooling fan,Brushless Cooling Fan 12V
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

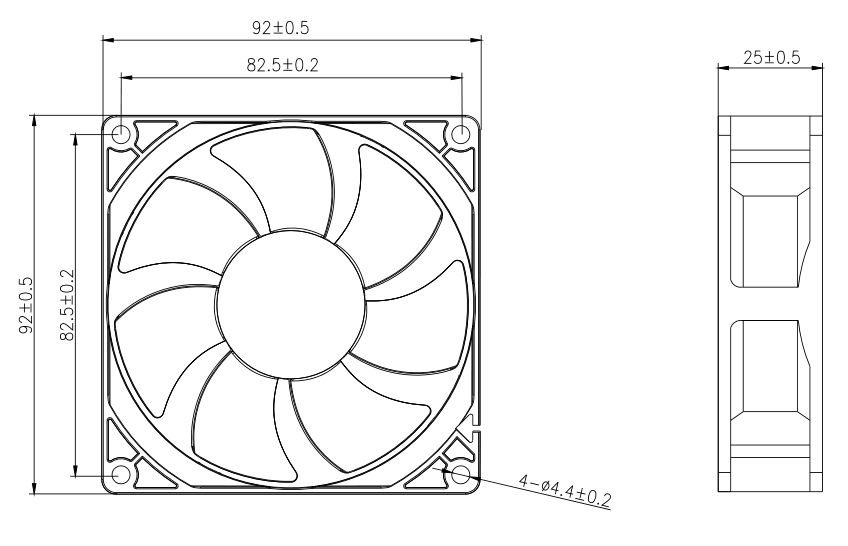

| Size: 92*92*25mm-3 Series
| Voltage: DC 12V-48V
| Current: 0.04-0.23Amp
| Speed: 2000-4500rpm
| Total Airflow: 32.29-73.55CFM
| Air Pressure: 1.97-8.57 mmH2O
| Total Noise: 26-49dBA

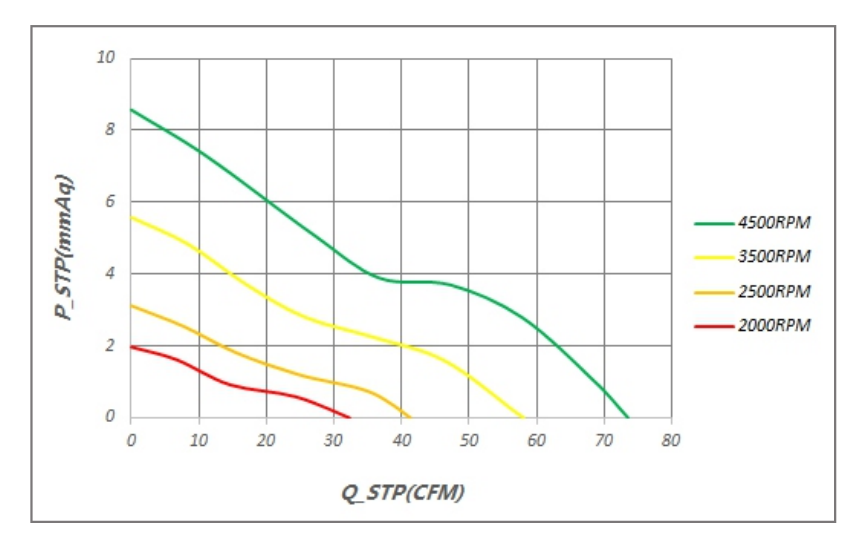

| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 92*92*25-L12 | 12 | 7.0to13.5 | 0.07 | 0.84 | 2000 | 0.91 | 32.29 | 1.97 | 0.08 | 26 |
| 92*92*25-L24 | 24 | 18to26.5 | 0.05 | 1.2 | ||||||
| 92*92*25-M12 | 12 | 7.0to13.5 | 0.1 | 1.2 | 2500 | 1.17 | 41.34 | 3.12 | 0.12 | 33.2 |
| 92*92*25-M24 | 24 | 18to26.5 | 0.06 | 1.44 | ||||||
| 92*92*25-M48 | 48 | 36to54 | 0.04 | 1.92 | ||||||
| 92*92*25-H12 | 12 | 7.0to13.5 | 0.23 | 2.76 | 3500 | 1.65 | 58.11 | 5.58 | 0.22 | 42.6 |
| 92*92*25-H24 | 24 | 18to26.5 | 0.13 | 3.12 | ||||||
| 92*92*25-H48 | 48 | 36to54 | 0.06 | 2.88 | ||||||
| 92*92*25-H24-HH | 24 | 18to26.5 | 0.2 | 4.8 | 4500 | 2.08 | 73.55 | 8.57 | 0.34 | 49 |
| 92*92*25-H48-HH | 48 | 36to54 | 0.11 | 5.28 | ||||||
