dc brushless fan , Cooling fan , 24v fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

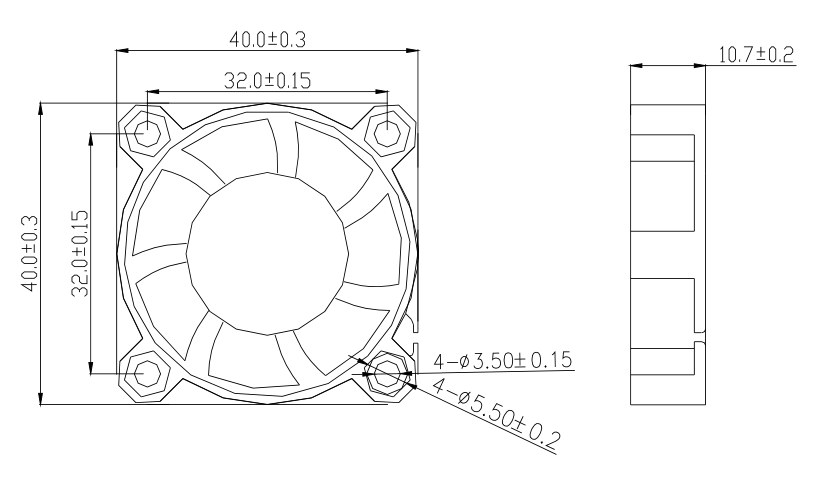

| Size: 40*40*10mm Series
| Voltage: DC 5V-24V
| Current: 0.03-0.17Amp
| Speed: 5500-8000rpm

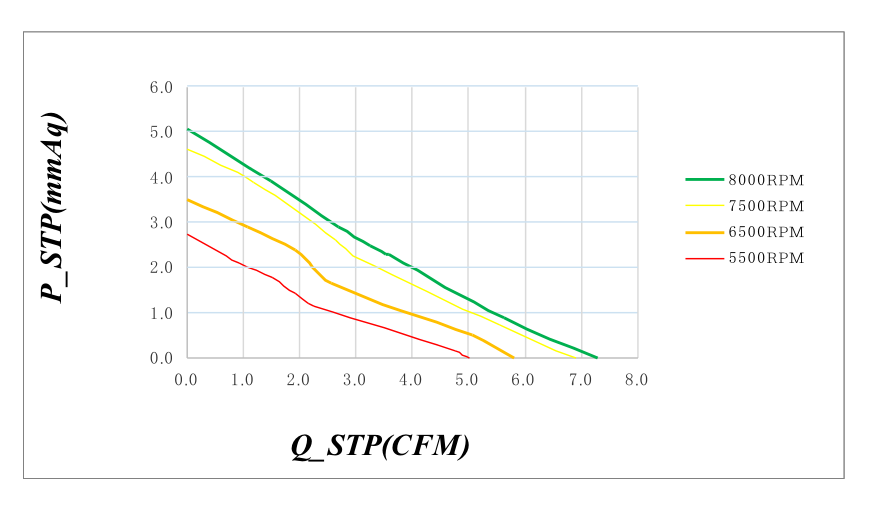

| Total Airflow:5.02-7.3CFM
| Air Pressure: 2.76-5.05mmH2O
| Total Noise: 31-40dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 40*40*10-L05 | 5 | 3.6to6.8 | 0.10 | 0.50 | 5500 | 0.14 | 5.02 | 2.76 | 0.11 | 31.0 |
| 40*40*10-L12 | 12 | 7.0to13.5 | 0.04 | 0.48 | ||||||
| 40*40*10-L24 | 24 | 18to26.5 | 0.02 | 0.48 | ||||||
| 40*40*10-M05 | 5 | 3.6to6.8 | 0.12 | 0.60 | 6500 | 0.16 | 5.82 | 3.52 | 0.14 | 34.8 |
| 40*40*10-M12 | 12 | 7.Oto13.5 | 0.05 | 0.60 | ||||||
| 40*40*10-M24 | 24 | 18to26.5 | 0.03 | 0.72 | ||||||
| 40*40*10-H05 | 5 | 3.6to6.8 | 0.15 | 0.75 | 7500 | 0.19 | 6.90 | 4.63 | 0.18 | 37.5 |
| 40*40*10-H12 | 12 | 7.Oto13.5 | 0.06 | 0.72 | ||||||
| 40*40*10-H24 | 24 | 18to26.5 | 0.03 | 0.72 | ||||||
| 40*40*10-HO5-HH | 5 | 3.6to6.8 | 0.17 | 0.85 | 8000 | 0.21 | 7.30 | 5.05 | 0.20 | 40.5 |
| 40*40*10-H12-HH | 12 | 7.0to13.5 | 0.07 | 0.94 | ||||||
| 40*40*10-H24-HH | 24 | 18to26.5 | 0.04 | 0.96 | ||||||
