Cooling fan factory,DC Cooling fan,DC Brushless fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

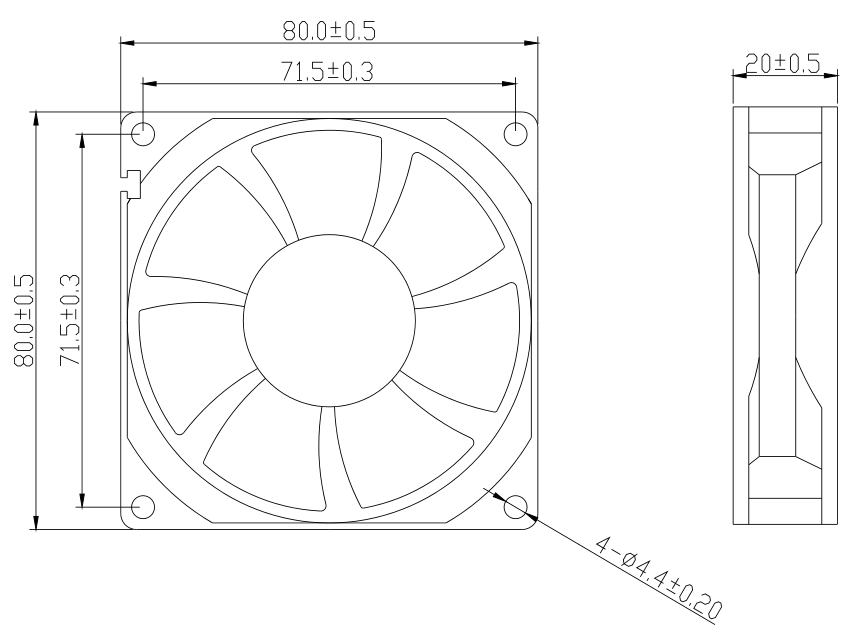

| Size: 80*80*20mm Series
| Voltage: DC 12V-48V
| Current: 0.07-0.24Amp
| Speed: 2500-5000rpm
| Total Airflow: 21.7-42.67CFM

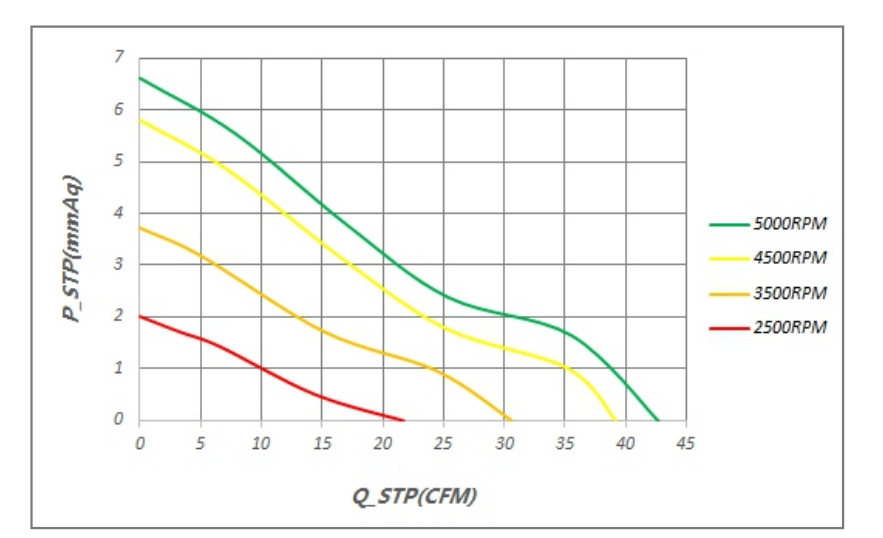

| Air Pressure: 2.01-6.61 mmH2O
| Total Noise: 28-47.2dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 80*80*20-L12 | 12 | 7.0to13.5 | 0.11 | 1.32 | 2500 | 0.61 | 21.7 | 2.01 | 0.08 | 28 |
| 80*80*20-L24 | 24 | 18to26.5 | 0.07 | 1.68 | ||||||
| 80*80*20-M12 | 12 | 7.0to13.5 | 0.19 | 2.28 | 3500 | 0.87 | 30.62 | 3.72 | 0.15 | 38 |
| 80*80*20-M24 | 24 | 18to26.5 | 0.12 | 2.88 | ||||||
| 80*80*20-H12 | 12 | 7.0to13.5 | 0.33 | 3.96 | 4500 | 1.11 | 39.19 | 5.8 | 0.23 | 44.5 |
| 80*80*20-H24 | 24 | 18to26.5 | 0.17 | 4.08 | ||||||
| 80*80*20-H48 | 48 | 36to54 | 0.08 | 3.84 | ||||||
| 80*80*20-H24-HH | 24 | 18to26.5 | 0.24 | 5.76 | 5000 | 1.21 | 42.67 | 6.61 | 0.26 | 47.2 |
| 80*80*20-H48-HH | 48 | 36to54 | 0.12 | 5.76 | ||||||
