cpu cooling fan,DC Cooling fan,Mining Machine Cooling fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

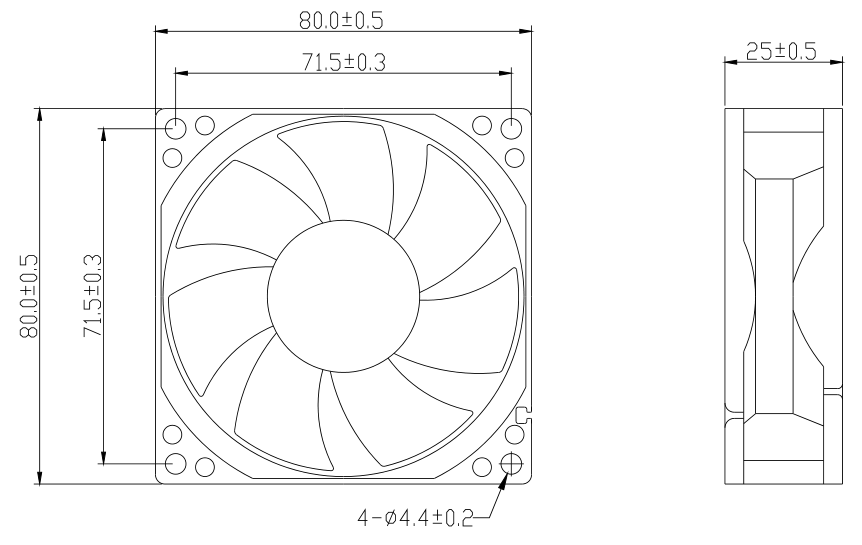

| Size: 80*80*25mm-1 Series
| Voltage: DC 12V-48V
| Current: 0.06-0.32Amp
| Speed: 2500-4500rpm
| Total Airflow: 30.54-54.67CFM

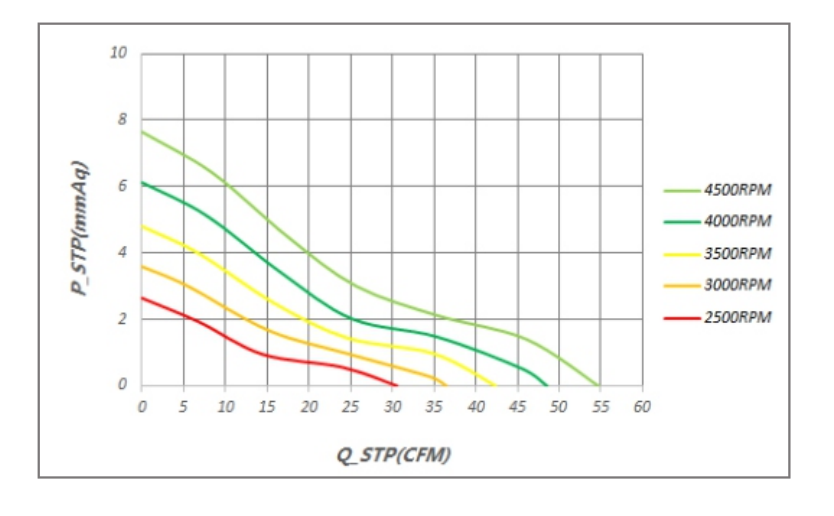

| Air Pressure: 2.64-7.64 mmH2O
| Total Noise: 28.9-44.3dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 80*80*25-L12 | 12 | 7.0to13.5 | 0.14 | 1.68 | 2500 | 0.86 | 30.54 | 2.64 | 0.10 | 28.9 |
| 80*80*25-L24 | 24 | 18to26.5 | 0.07 | 1.68 | ||||||
| 80*80*25-M12 | 12 | 7.0to13.5 | 0.2 | 2.4 | 3000 | 1.03 | 36.46 | 3.59 | 0.14 | 33.8 |
| 80*80*25-M24 | 24 | 18to26.5 | 0.11 | 2.64 | ||||||
| 80*80*25-H12 | 12 | 7.0to13.5 | 0.26 | 3.12 | 3500 | 1.20 | 42.37 | 4.8 | 0.19 | 38.5 |
| 80*80*25-H24 | 24 | 18to26.5 | 0.13 | 3.12 | ||||||
| 80*80*25-H48 | 48 | 36to54 | 0.06 | 2.88 | ||||||
| 80*80*25-H12-HH | 12 | 7.0to13.5 | 0.32 | 3.84 | 4000 | 1.37 | 48.53 | 6.12 | 0.24 | 41 |
| 80*80*25-H24-HH | 24 | 18to26.5 | 0.16 | 3.84 | ||||||
| 80*80*25-H48-HH | 48 | 36to54 | 0.09 | 4.32 | ||||||
| 80*80*25-H24-VH | 24 | 18to26.5 | 0.23 | 5.52 | 4500 | 1.55 | 54.67 | 7.64 | 0.30 | 44.3 |
| 80*80*25-H48-VH | 48 | 36to54 | 0.1 | 4.8 | ||||||
