DC Cooling Fan,Strong industrial DC Fan,Axial flow fans,DC Axial cooling fan
* Bearings: Ball /Sleeve/Fluid Bearing
* Long Lifespan Up to 70 000 hrs.
* Strong Aluminum Frame
* Premium Environmental and fire prevention PBT UL94V-0 impeller.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

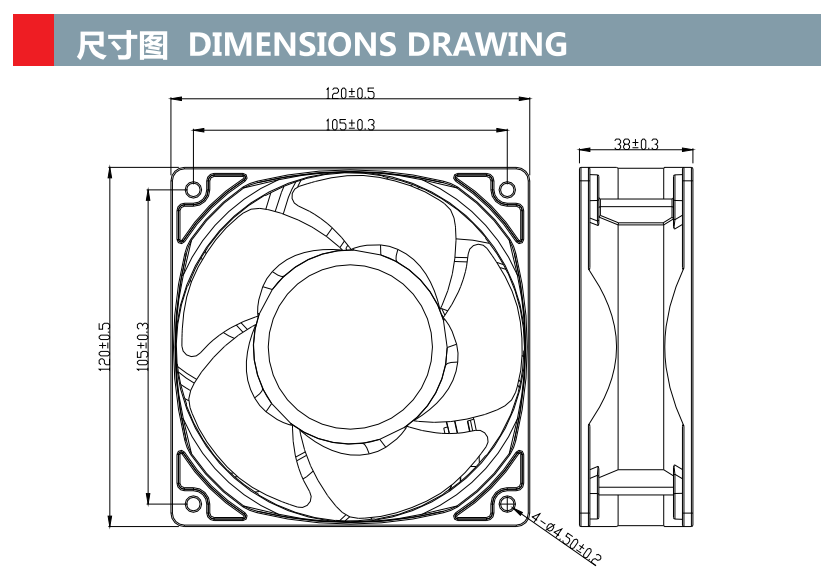

| Size: 120*120*38mm-8 Series
| Voltage: DC 12-48V
| Current: 0.8-10Amp
| Speed: 8000-12000rpm
| Total Airflow: 218-308.5 CFM
| Air Pressure: 68.2-170 mmH2O
| Total Noise: 66.7-78dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 120*120*38-L12 | 12 | 8.0to13.5 | 3.0 | 36.0 | 8000 | 6.18 | 218 | 69.2 | 2.72 | 66.7 |
| 120*120*38-L24 | 24 | 18to26.5 | 1.5 | 36.0 | ||||||
| 120*120*38-L48 | 48 | 36to54 | 0.8 | 38.4 | ||||||
| 120*120*38-M12 | 12 | 8.0to13.5 | 5.8 | 69.6 | 10000 | 7.96 | 281 | 102 | 4.01 | 70.4 |
| 120*120*38-M24 | 24 | 18to26.5 | 2.9 | 69.6 | ||||||
| 120*120*38-M48 | 48 | 36to54 | 1.5 | 72.0 | ||||||
| 120*120*38-H12 | 12 | 8.0to13.5 | 10.0 | 120.0 | 12000 | 8.76 | 308.5 | 170 | 6.69 | 78 |
| 120*120*38-H24 | 24 | 18to26.5 | 5.0 | 120.0 | ||||||
| 120*120*38-H48 | 48 | 36to54 | 2.5 | 120.0 | ||||||
