225MM Centrifugal fan, centrifugal fan ,DC Backward centrifugal fan

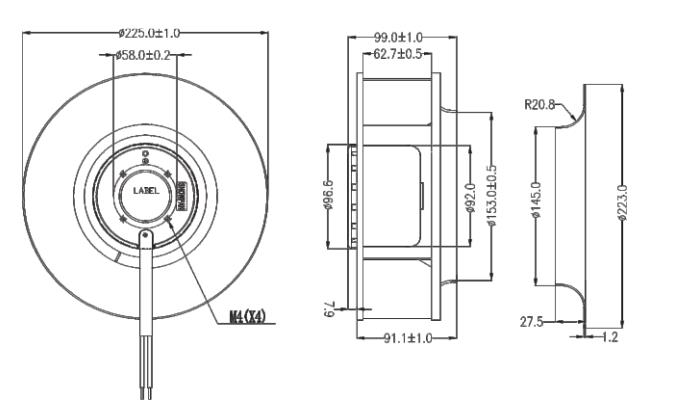

| Size: 225mm Diameter
| Voltage: DC 24V/48V
| Current: 3-6.2Amp
| Speed: 2800rpm

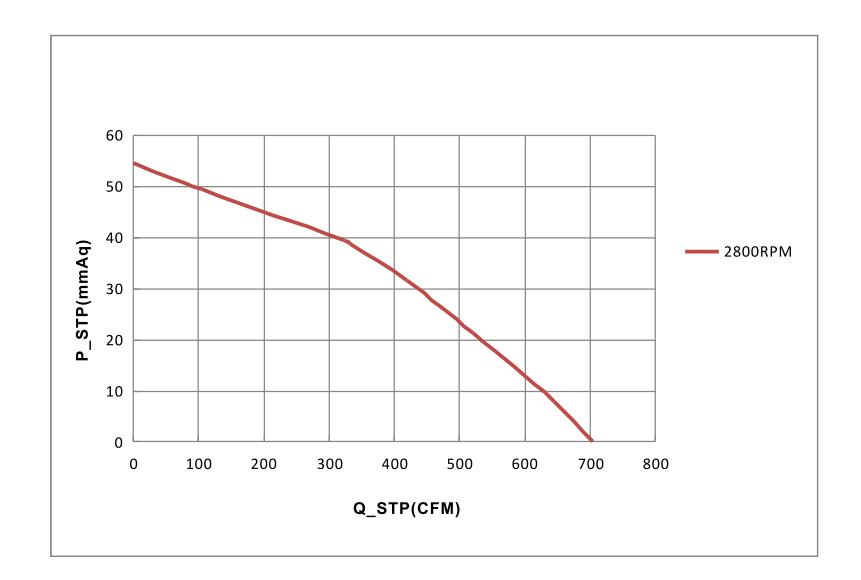

| Total Airflow: 703.7CFM
| Air Pressure: 54.5 mmH2O
| Total Noise: 74.5dBA
Download
3D Model
SHARE:
Product details:
* Bearings: Ball Bearing
* Strong aluminum Impeller
* 0-10V/PWM Stepless-speed control constantly variable speed.
* Brushless DC external Rotor Motor, Motor Protection Type: IP44/IP54
* Special Rotor Opening Design,Tecch output, Locked-rotor protection,Over voltage protection, over-currect protection, solf start protection.
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB),Speed control mode(PWM/TC/VC/CC/CS).
