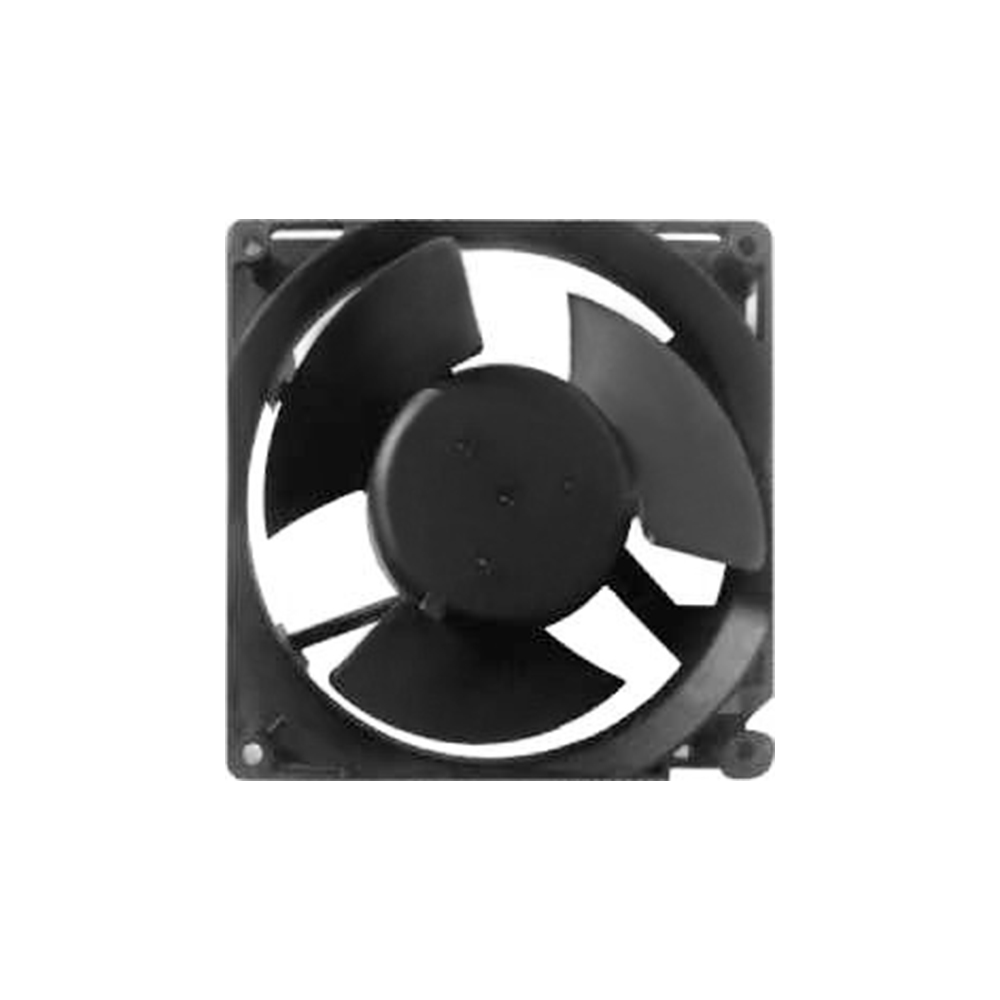

fan factory， 12v Cooling fan.，24V DC brushless fan , 48v dc fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV/ROHS.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

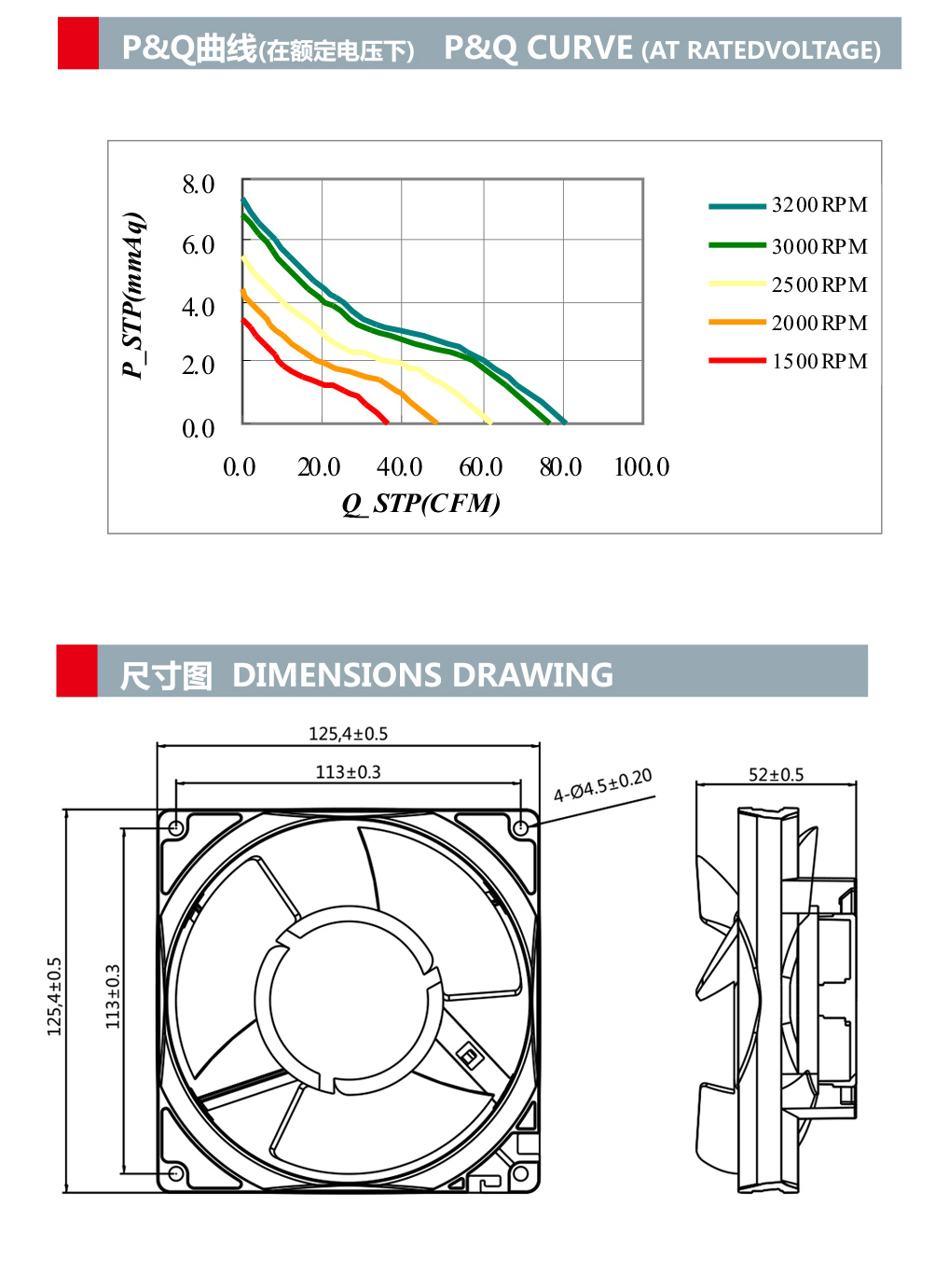

| Size: 130*130*50mm-1 Series
| Voltage: DC 12V-48V
| Current: 0.04-1.03Amp
| Speed: 1500-3200rpm
| Total Airflow: 36.40-80.4CFM
| Air Pressure: 3.40-7.30 mmH2O
| Total Noise: 23.6-43.51dBA
| MODEL | RatedVoltage | OperatingVoltage Range | RatedCurrent | RatedInputPovwer | Speed | MaximumAir Flow | MaximumAir Pressure | Noise | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A |
| YY13050L12 | 12 | 8.0to13.5 | 0.16 | 1.92 | 1500 | 1.03 | 36.4 | 3.4 | 0.13 | 23.6 |
| YY13050L24 | 24 | 18to26.5 | 0.08 | 1.92 | ||||||
| YY13050L48 | 48 | 36 to 54 | 0.04 | 1.92 | ||||||
| YY13050M12 | 12 | 8.0to13.5 | 0.33 | 3.96 | 2000 | 1.39 | 48.93 | 4.35 | 0.17 | 28.7 |
| YY13050M24 | 24 | 18to26.5 | 0.16 | 3.74 | ||||||
| YY13050M48 | 48 | 36 to 54 | 0.07 | 3.56 | ||||||
| YY13050H12 | 12 | 8.0to13.5 | 0.55 | 6.6 | 2500 | 1.78 | 62.6 | 5.48 | 0.22 | 33.6 |
| YY13050H24 | 24 | 18to26.5 | 0.26 | 6.24 | ||||||
| YY13050H48 | 48 | 36 to 54 | 0.12 | 5.76 | ||||||
| YY13050H12-HH | 12 | 8.0to13.5 | 0.94 | 11.28 | 3000 | 2.18 | 76.85 | 6.85 | 0.27 | 41.8 |
| YY13050H24-HH | 24 | 18to26.5 | 0.45 | 10.8 | ||||||
| YY13050H48-HH | 48 | 36 to 54 | 0.21 | 10.18 | ||||||
| YY13050H12-VH | 12 | 8.0to13.5 | 1.03 | 12.36 | 3200 | 2.28 | 80.4 | 7.3 | 0.29 | 43.51 |
| YY13050H24-VH | 24 | 18to26.5 | 0.49 | 11.76 | ||||||
| YY13050H48-VH | 48 | 36 to 54 | 0.23 | 11.14 | ||||||
