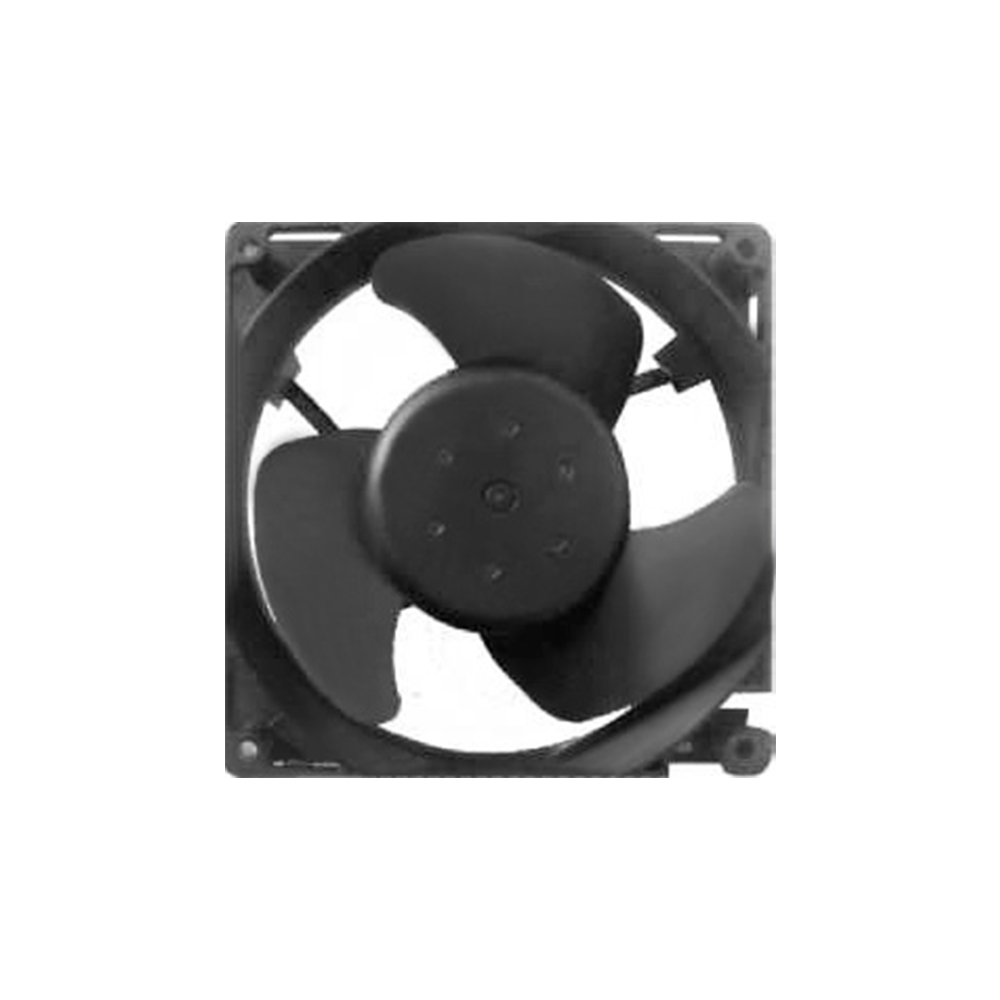

DC brushless fan , Cooling fan , 12v fan.24V 48v dc fan 13050-2 SERIES
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV/ROHS.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:
| Size: 130*130*50mm-2 Series
| Voltage: DC 12V-48V
| Current: 0.02-0.95Amp
| Speed: 1500-3700rpm
| Total Airflow:43.60-115.3CFM
| Air Pressure: 3.60-9.25mmH2O
| Total Noise: 29.3-51.4dBA
| MODEL | RatedVoltage | OperatingVoltage Range | RatedCurrent | RatedInputPovwer | Speed | MaximumAir Flow | MaximumAir Pressure | Noise | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A |
| YY13050L12 | 12 | 8.0to13.5 | 0.09 | 1.08 | 1500 | 1.24 | 43.6 | 3.6 | 0.14 | 29.3 |
| YY13050L24 | 24 | 18to26.5 | 0.04 | 0.96 | ||||||
| YY13050L48 | 48 | 36 to 54 | 0.02 | 0.98 | ||||||
| YY13050M12 | 12 | 8.0to13.5 | 0.2 | 2.4 | 2000 | 1.74 | 61.43 | 4.85 | 0.19 | 33.7 |
| YY13050M24 | 24 | 18to26.5 | 0.09 | 2.26 | ||||||
| YY13050M48 | 48 | 36 to 54 | 0.04 | 2.12 | ||||||
| YY13050H12 | 12 | 8.0to13.5 | 0.33 | 3.96 | 2500 | 2.23 | 78.37 | 6.1 | 0.24 | 38.5 |
| YY13050H24 | 24 | 18to26.5 | 0.16 | 3.74 | ||||||
| YY13050H48 | 48 | 36 to 54 | 0.07 | 3.56 | ||||||
| YY13050H12-HH | 12 | 8.0to13.5 | 0.52 | 6.24 | 3000 | 2.59 | 91.38 | 7.56 | 0.3 | 41.7 |
| YY13050H24-HH | 24 | 18to26.5 | 0.25 | 5.95 | ||||||
| YY13050H48-HH | 48 | 36 to 54 | 0.12 | 6 | ||||||
| YY13050H12-VH | 12 | 8.0to13.5 | 0.83 | 9.96 | 3500 | 2.85 | 100.25 | 8.95 | 0.35 | 48.9 |
| YY13050H24-VH | 24 | 18to26.5 | 0.39 | 9.46 | ||||||
| YY13050H48-VH | 48 | 36 to 54 | 0.19 | 8.96 | ||||||
| YY13050H12-SH | 12 | 8.0to13.5 | 0.95 | 11.4 | 3700 | 3.27 | 115.3 | 9.25 | 0.36 | 51.4 |
| YY13050H24-SH | 24 | 18to26.5 | 0.45 | 10.8 | ||||||
| YY13050H48-SH | 48 | 36 to 54 | 0.22 | 10.56 | ||||||
