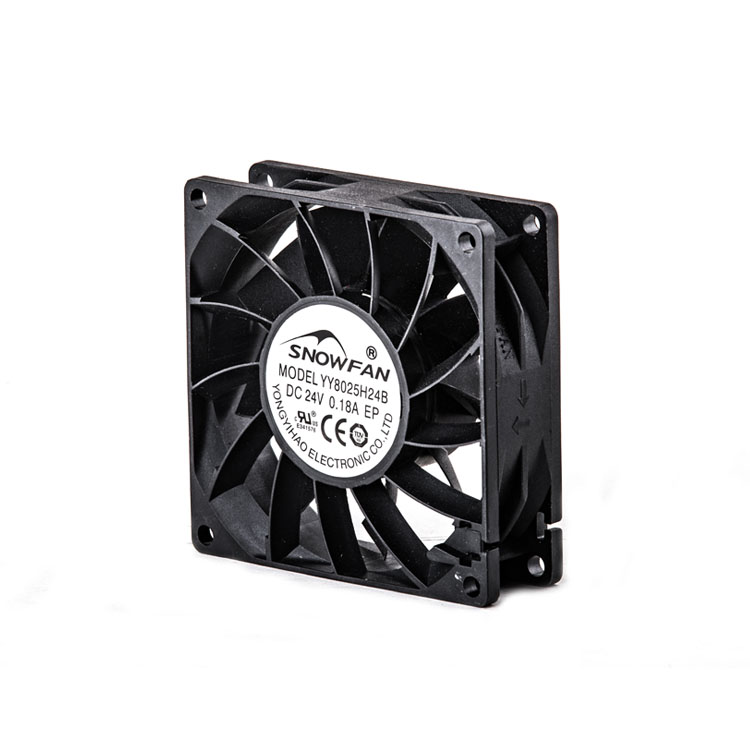

DC brushless fan , Cooling fan , 12v fan.24V 48v dc fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV/ROHS.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

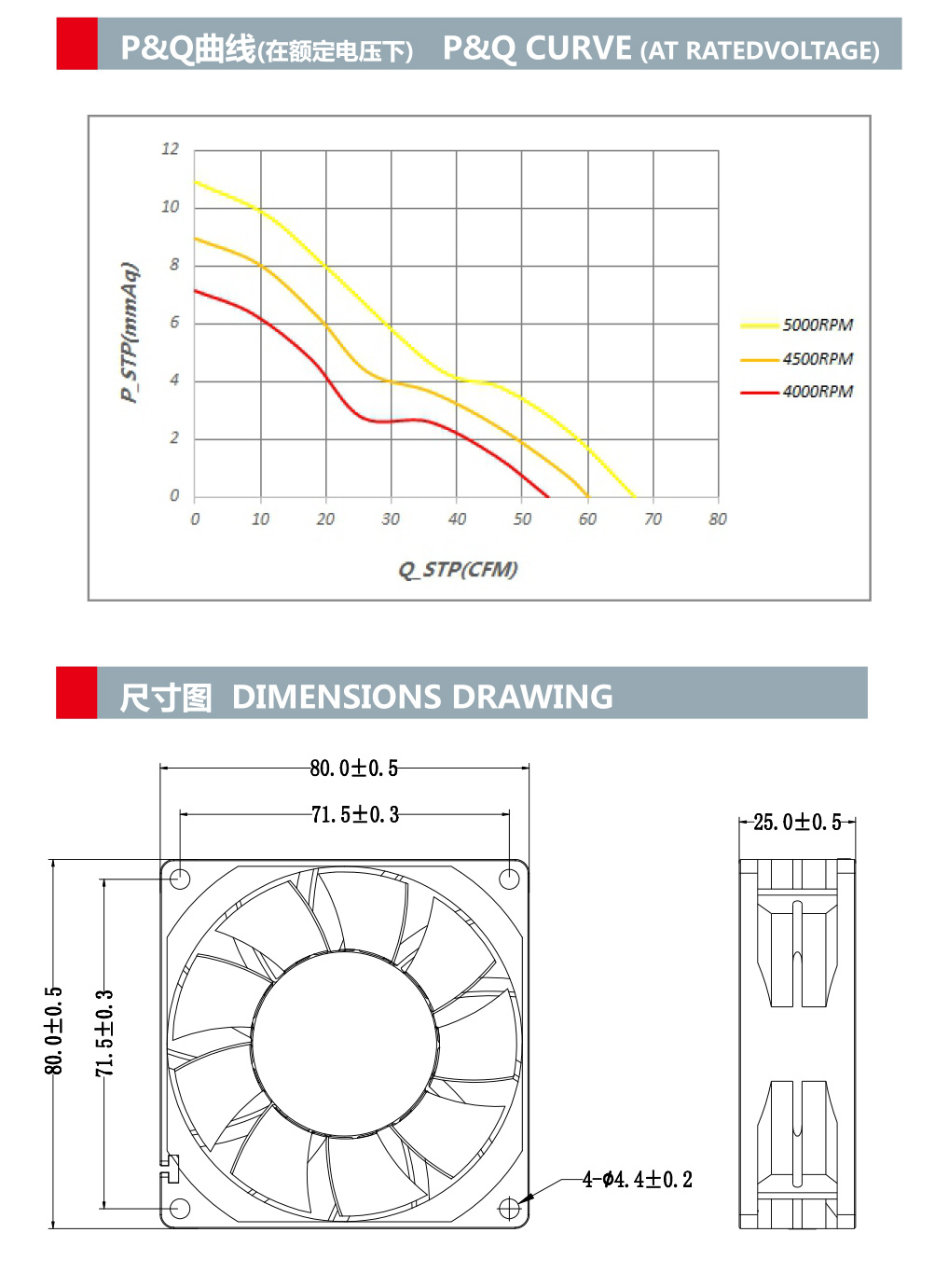

| Size: 80*80*25mm Series
| Voltage: DC 12V-48V
| Current: 0.1-0.72Amp
| Speed: 4000-5000rpm
| Total Airflow:53.98-67.27CFM
| Air Pressure: 7.14-10.9mmH2O
| Total Noise: 45-52.1dBA
| MODEL | RatedVoltage | OperatingVoltage Range | RatedCurrent | RatedInputPovwer | Speed | MaximumAir Flow | MaximumAir Pressure | Noise | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A |
| YY8025M12 | 12 | 7.0 to 13.5 | 0.34 | 4.08 | 4000 | 1.53 | 53.98 | 7.14 | 0.28 | 45 |
| YY8025M24 | 24 | 18 to 26.5 | 0.17 | 4.08 | ||||||
| YY8025M48 | 48 | 36 to 54 | 0.1 | 4.8 | ||||||
| YY8025H12 | 12 | 7.0 to 13.5 | 0.5 | 6 | 4500 | 1.7 | 60.2 | 8.95 | 0.35 | 48.3 |
| YY8025H24 | 24 | 18 to 26.5 | 0.25 | 6 | ||||||
| YY8025H48 | 48 | 36 to 54 | 0.13 | 6.24 | ||||||
| YY8025H12-HH | 12 | 7.0 to 13.5 | 0.72 | 8.64 | 5000 | 1.9 | 67.27 | 10.9 | 0.43 | 52.1 |
| YY8025H24-HH | 24 | 18 to 26.5 | 0.36 | 8.64 | ||||||
| YY8025H48-HH | 48 | 36 to 54 | 0.2 | 9.6 | ||||||
