DC motor High pressure 48V high cfm backward curved centrifugal impeller radial fan

DC Motor Centrifugal fan,PWM centrifugal fan ,Backward curved centrifugal fan


| Size: 310mm Diameter

| Voltage: DC 48V

| Current: 8.8 Amp

| Speed: 2100rpm

| Total Airflow: 1674.59CFM

| Air Pressure: 80.02 mmH2O

| Total Noise: 75.61dBA


Send Inquiry Download 3D Model

SHARE:

Product Details

Product details:

 * Bearings: Ball Bearing

 * Strong aluminum Impeller

 * 0-10V/PWM Stepless-speed control constantly variable speed.

 * Brushless DC external Rotor Motor, Motor Protection Type: IP44/IP54

 * Special Rotor Opening Design,Tecch output, Locked-rotor protection,Over voltage protection, over-currect protection, solf start protection.

 * Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB),Speed control mode(PWM/TC/VC/CC/CS).

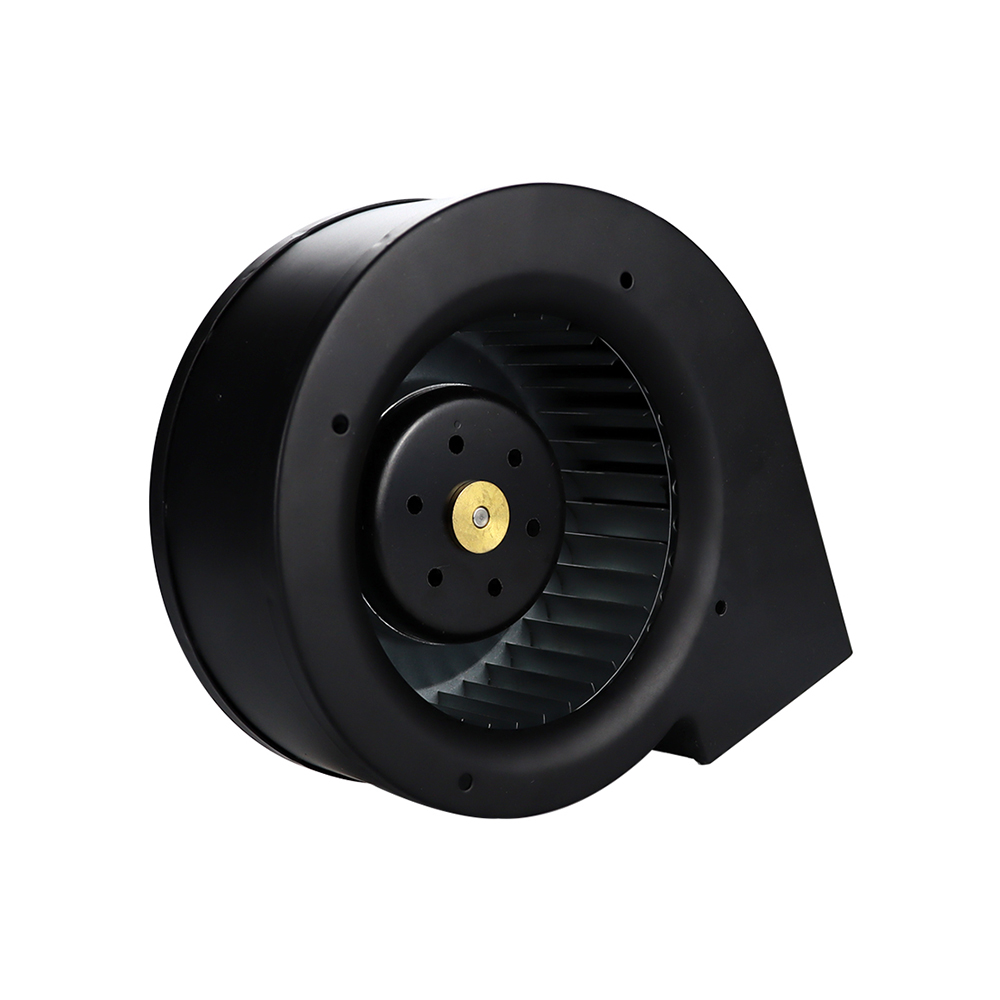

DC motor High pressure 48V high cfm backward curved centrifugal impeller radial fan(图1)

DC motor High pressure 48V high cfm backward curved centrifugal impeller radial fan(图2)

Compare With Similar Items

SizeRated VoltageOperating Voltage RangeRated CurrentRated Input PowerSpeedMaximum Air FlowMaximum Air PressureNoise

VDCVDCAmpWattR.P.MCMHCFMmmH2OINH2ODB-A
Φ310-H48B4836to548.8422.421002847.941674.5980.023.1575.61
