Frameless dc fan , Brushless axial DC fan , Mini DC fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

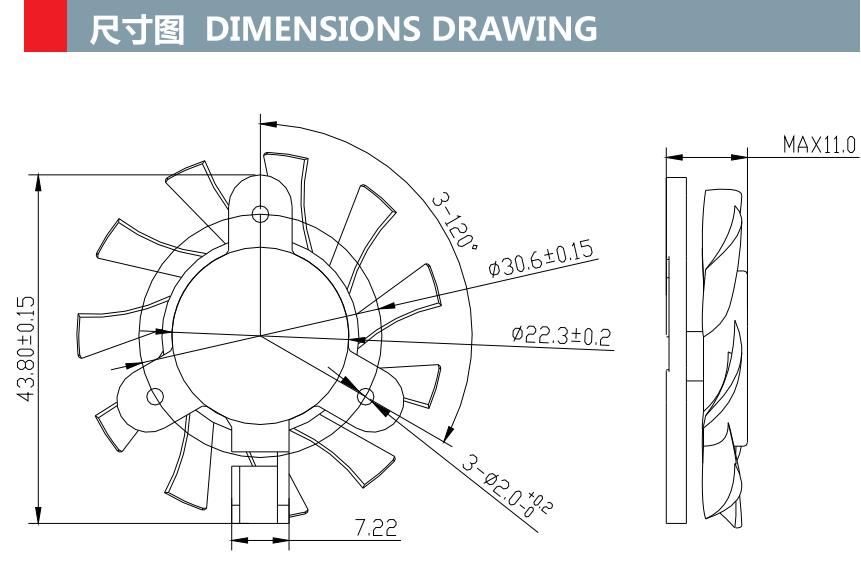

| Size: 50*50*10mm Series
| Voltage: DC 5V-24V
| Current: 0.03-0.25 Amp
| Speed: 4000-6500rpm

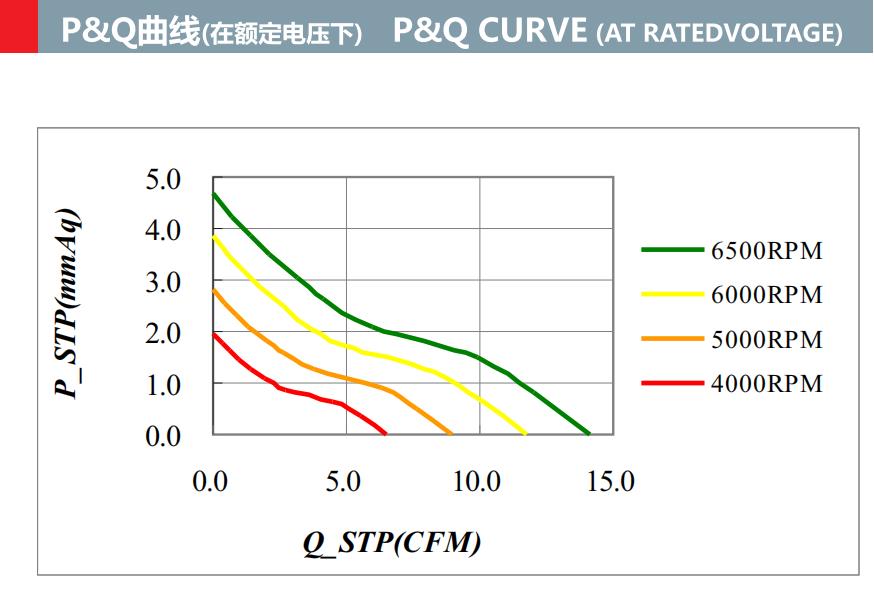

| Airflow: 6.45-14.13CFM
| Air Pressure: 1.96-4.7mmH2O
| Total Noise: 27-35.5dBA
| MODEL | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YY5010L05 | 5 | 3.6to6.8 | 0.12 | 0.60 | 4000 | 0.18 | 6.45 | 1.96 | 0.08 | 27.0 | |
| YY5010L12 | 12 | 7.0to13.5 | 0.05 | 0.60 | |||||||
| YY5010L24 | 24 | 18to26.5 | 0.03 | 0.72 | |||||||
| YY5010M05 | 5 | 3.6to6.8 | 0.22 | 1.10 | 5000 | 0.25 | 8.97 | 2.84 | 0.11 | 30.5 | |
| YY5010M12 | 12 | 7.0to13.5 | 0.09 | 1.08 | |||||||
| YY5010M24 | 24 | 18to26.5 | 0.05 | 1.2 | |||||||
| YY5010H12 | 12 | 7.0to13.5 | 0.15 | 1.80 | 6000 | 0.33 | 11.77 | 3.85 | 0.15 | 33.8 | |
| YY5010H24 | 24 | 18to26.5 | 0.08 | 1.92 | |||||||
| YY5010H12-HH | 12 | 7.0to13.5 | 0.25 | 3.0 | 6500 | 0.40 | 14.13 | 4.70 | 0.19 | 35.5 | |
| YY5010H24-HH | 24 | 18to26.5 | 0.13 | 3.12 | |||||||
