Car charging pile cooling fan,12V Charging pile Cooling Fan,DC Cooling fan,DC 92*92*25mm Fan
* Bearings: Ball-Longlife up to 70 000hrs,suit for high speed fan,Stable Noise
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

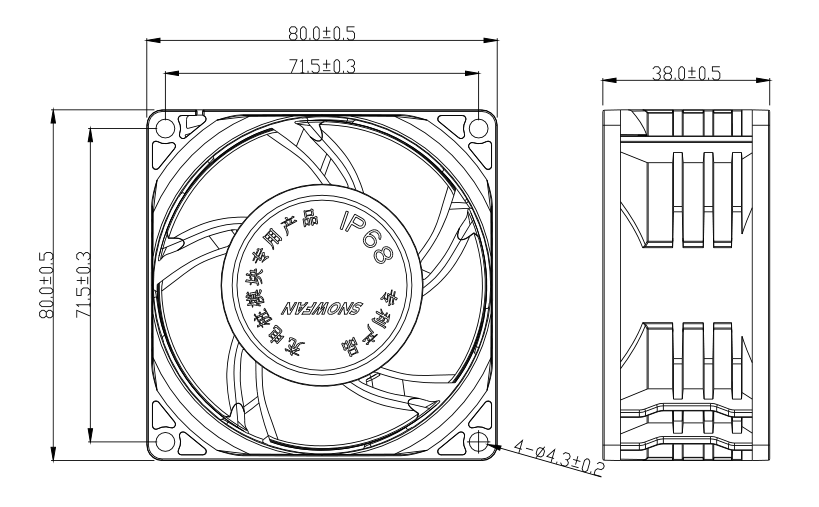

| Size: 80*80*38mm-3 Series
| Voltage: DC 12V-48V
| Current: 0.65-2.7Amp
| Speed: 13800rpm
| Total Airflow: 117.2CFM
| Air Pressure: 95.27 mmH2O
| Total Noise: 68.5dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 80*80*38-H12 | 12 | 8.0to13.5 | 2.7 | 32.4 | 13800 | 3.32 | 117.2 | 95.27 | 3.75 | 68.5 |
| 80*80*38-H24 | 24 | 18to26.5 | 1.4 | 33.6 | ||||||
| 80*80*38-H48 | 48 | 36to54 | 0.65 | 31.2 | ||||||
Link: Rubber 3D print
