dc brushless fan , Cooling fan , 24v fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

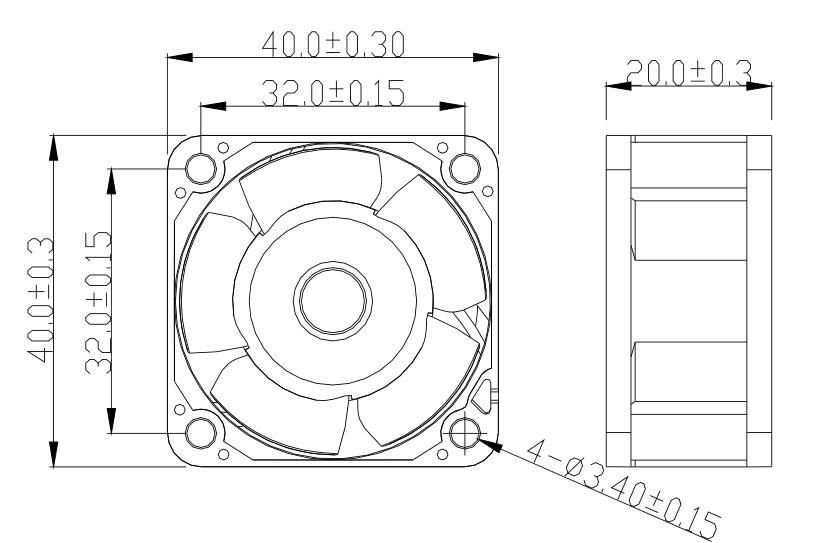

| Size: 40*40*20mm Series
| Voltage: DC 5V-24V
| Current: 0.03-0.16Amp
| Speed: 5000-12000rpm
| Total Airflow:6.13-15.81CFM
| Air Pressure: 3.35-17.57mmH2O
| Total Noise: 28-46dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 40*40*20-L05 | 5 | 3.6to6.8 | 0.08 | 0.40 | 5000 | 0.17 | 6.13 | 3.35 | 0.13 | 28.7 |
| 40*40*20-L12 | 12 | 7.0to13.5 | 0.03 | 0.36 | ||||||
| 40*40*20-M05 | 5 | 3.6to6.8 | 0.10 | 0.50 | 6000 | 0.21 | 7.49 | 4.15 | 0.16 | 32.0 |
| 40*40*20-M12 | 12 | 7.0to13.5 | 0.04 | 0.48 | ||||||
| 40*40*20-M24 | 24 | 18to26.5 | 0.02 | 0.48 | ||||||
| 40*40*20-H05 | 5 | 3.6to6.8 | 0.12 | 0.60 | 7000 | 0.26 | 9.01 | 6.65 | 0.26 | 34.5 |
| 40*40*20-H12 | 12 | 7.0to13.5 | 0.05 | 0.60 | ||||||
| 40*40*20-H24 | 24 | 18to26.5 | 0.03 | 0.72 | ||||||
| 40*40*20-H12-HH | 12 | 7.0to13.5 | 0.07 | 0.84 | 8000 | 0.29 | 10.33 | 8.09 | 0.32 | 37.0 |
| 40*40*20-H24-HH | 24 | 18to26.5 | 0.04 | 0.96 | ||||||
| 40*40*20-H12-VH | 12 | 7.0to13.5 | 0.09 | 1.08 | 10000 | 0.37 | 13.13 | 12.39 | 0.49 | 41.0 |
| 40*40*20-H24-VH | 24 | 18to26.5 | 0.05 | 1.20 | ||||||
| 40*40*20-H12-SH | 12 | 7.0to13.5 | 0.16 | 1.92 | 12000 | 0.45 | 15.81 | 17.57 | 0.69 | 46.0 |
| 40*40*20-H24-SH | 24 | 18to26.5 | 0.08 | 1.92 | ||||||
