DC brushless fan , Cooling fan , axial flow fans
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV/ROHS.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

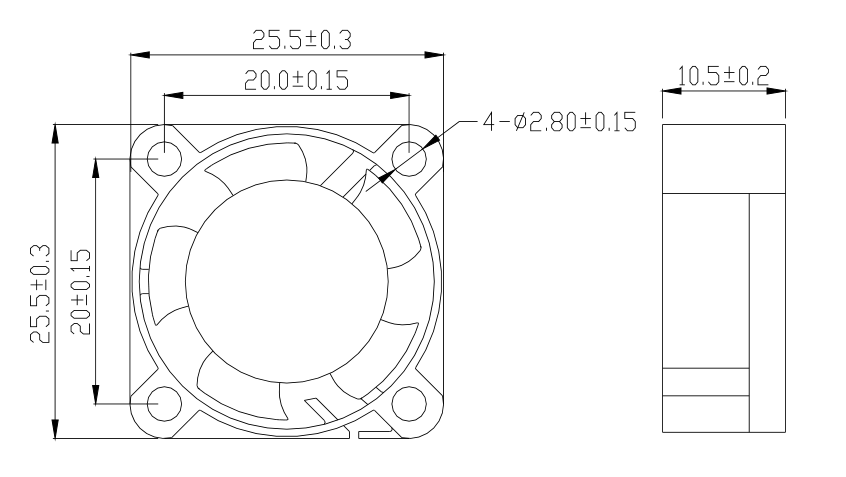

| Size: 25*25*10mm Series
| Voltage: DC 5V-12V
| Current: 0.06-0.23Amp
| Speed: 7000-15000rpm
| Total Airflow:1.57-2.75CFM
| Air Pressure: 2.72-10.08mmH2O
| Total Noise: 35-38dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 25*25*10-LO5 | 5 | 4.3to5.4 | 0.09 | 0.45 | 7000 | 1.57 | 1.57 | 2.75 | 0.107 | 25.6 |
| 25*25*10-L12 | 12 | 7.0to13.5 | 0.04 | 0.48 | ||||||
| 25*25*10-M05 | 5 | 4.3to5.4 | 0.13 | 0.65 | 10000 | 1.70 | 1.70 | 4.56 | 0.179 | 27.0 |
| 25*25*10-M12 | 12 | 7.0to13.5 | 0.06 | 0.72 | ||||||
| 25*25*10-H05 | 5 | 4.3to5.4 | 0.17 | 0.85 | 12000 | 0.062 | 2.2 | 6.93 | 0.27 | 33.5 |
| 25*25*10-H12 | 12 | 7.0to13.5 | 0.08 | 0.96 | ||||||
| 25*25*10-HO5-HH | 5 | 4.3to5.4 | 0.23 | 1.15 | 15000 | 0.077 | 2.75 | 10.08 | 0.40 | 38.0 |
| 25*25*10-H12-HH | 12 | 7.0to13.5 | 0.10 | 1.20 | ||||||
