DC brushless fan , Cooling fan , 5v dc fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV/ROHS.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

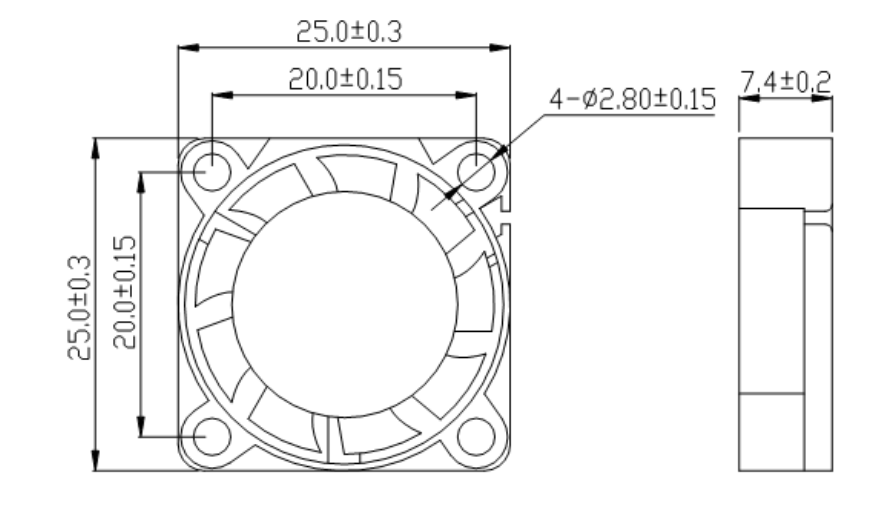

| Size: 25*25*7mm Series
| Voltage: DC 5V-12V
| Current: 0.05-0.3Amp
| Speed: 7000-17000rpm
| Total Airflow:0.85-2.36CFM
| Air Pressure: 1.26-6.67mmH2O
| Total Noise: 21-38dBA

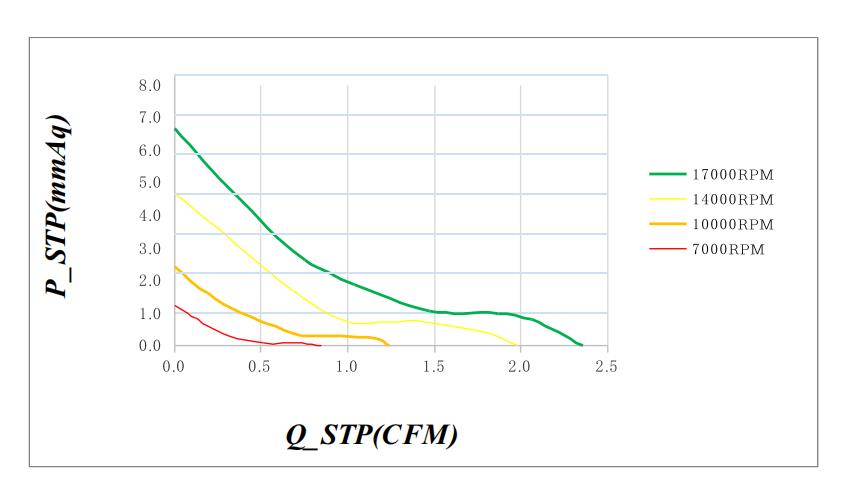

| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 25*25*07-L05 | 5 | 4.3to5.4 | 0.11 | 0.55 | 7000 | 0.024 | 0.85 | 1.26 | 0.049 | 21.0 |
| 25*25*07-L12 | 12 | 7.0to13.5 | 0.05 | 0.60 | ||||||
| 25*25*07-M05 | 5 | 4.3to5.4 | 0.17 | 0.85 | 10000 | 0.035 | 1.24 | 2.42 | 0.095 | 26.0 |
| 25*25*07-M12 | 12 | 7.0to13.5 | 0.08 | 0.96 | ||||||
| 25*25*07-H05 | 5 | 4.3to5.4 | 0.23 | 1.15 | 14000 | 0.056 | 1.98 | 4.69 | 0.18 | 35.0 |
| 25*25*07-H12 | 12 | 7.0to13.5 | 0.10 | 1.20 | ||||||
| 25*25*07-HO5-HH | 5 | 4.3to5.4 | 0.30 | 1.50 | 17000 | 0.066 | 2.36 | 6.67 | 0.26 | 38.0 |
| 25*25*07-H12-HH | 12 | 7.0to13.5 | 0.13 | 1.56 | ||||||
Link: Rubber 3D print
